For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
First Principle Investigation of O2 Adsorption on the LaMnO3 (001) Surface
p.646
An Analysis on Technology and Product Quality Effect of II-Powdery Emulsion Explosives
p.652
The Application of Air-Space with Mixed Emulsion Explosive in Open-Pit Mines
p.657
Modification of Asphalt by Montmorillonite
p.662
Refrigerant Capacity and Magnetocaloric Effect on LaFe11.1Co0.8Si1.1BX Alloys
p.667
Effects of Mg Substitution on the Thermoelectric Properties of Ca3Co4O9-Based Materials
p.671
Calculation and Analysis on PM Thermal Characteristics Influence Performance of PMSM Based on FEM
p.676
The Trend Change of Bitumen Research: A Text Mining Analysis (2000-2010)
p.681
Design and Experimental Research of Solar Powered Water Pump System Based on Single Chip
p.686

Refrigerant Capacity and Magnetocaloric Effect on LaFe11.1Co0.8Si1.1BX Alloys

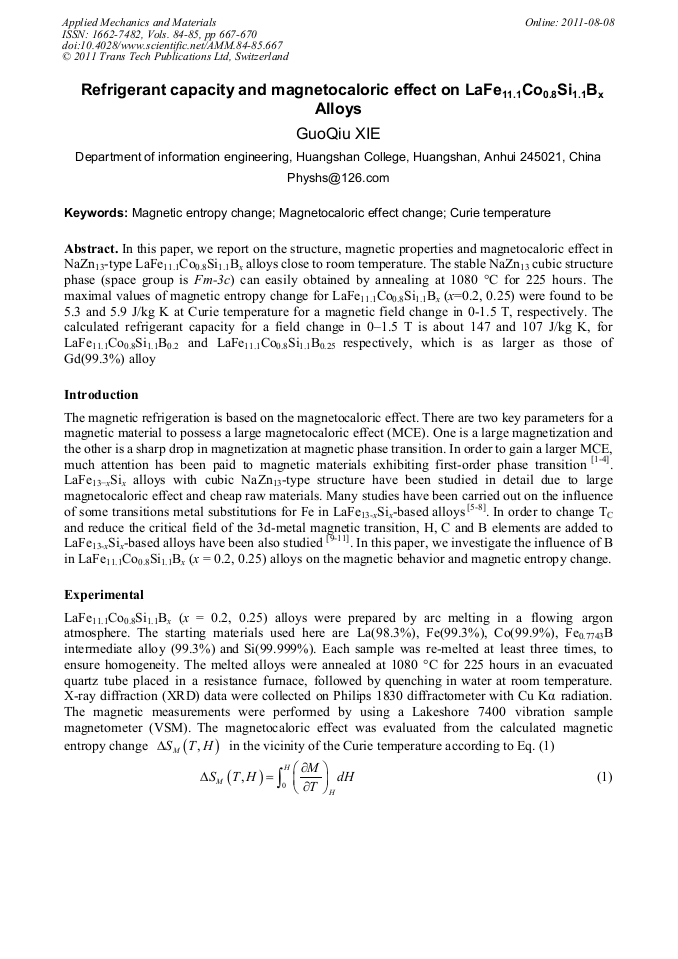

Article Preview

Abstract:

In this paper, we report on the structure, magnetic properties and magnetocaloric effect in NaZn13-type LaFe11.1Co0.8Si1.1Bx alloys close to room temperature. The stable NaZn13 cubic structure phase (space group is Fm-3c) can easily obtained by annealing at 1080 °C for 225 hours. The maximal values of magnetic entropy change for LaFe11.1Co0.8Si1.1Bx (x=0.2, 0.25) were found to be 5.3 and 5.9 J/kg K at Curie temperature for a magnetic field change in 0-1.5 T, respectively. The calculated refrigerant capacity for a field change in 0–1.5 T is about 147 and 107 J/kg K, for LaFe11.1Co0.8Si1.1B0.2 and LaFe11.1Co0.8Si1.1B0.25 respectively, which is as larger as those of Gd(99.3%) alloy

You might also be interested in these eBooks
Green Power, Materials and Manufacturing Technology and Applications View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 84-85)

Pages:

667-670

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.84-85.667

Citation:

Cite this paper

Online since:

August 2011

Authors:

Guo Qiu Xie

Keywords:

Curie Temperature, Magnetic Entropy Change, Magnetocaloric Effect Change

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] O. Tegus, E. Brück, K.H.J. Buschow and F.R. de Boer: Nature 415 150 (2002).

Google Scholar

[2] F.X. Hu, B.G. Shen, J.R. Sun, Zh.H. Cheng, G.H. Rao, X.X. Zhang: Appl. Phys. Lett 78 3675(2001).

Google Scholar

[3] A. Fujita, S. Fujied and K. Fukamichi: Phys. Rev. B 65 014410(2001).

Google Scholar

[4] V. K. Pecharsky and K. AJr Gschneidner: Appl. Phys. Lett 70 3299 (1997).

Google Scholar

[5] F. Wang, Y.F. Chen, G.J. Wang and B.G. Shen: J. Phys. D: Appl. Phys. 36 1(2003).

Google Scholar

[6] F.X. Hu, B.G. Shen, J.R. Sun, G.J. Wang and Z.H. Cheng: Appl. Phys. Lett 80 826(2002).

Google Scholar

[7] X.B. Liu, X.D. Liu and Z. Altounian: J. Appl. Phys 98 113904(2005).

Google Scholar

[8] X.X. Zhang, G.H. Wen, F.W. Wang, W.H. Wang, C.H. Yu and G.H. Wu: Appl. Phys. Lett 77 3072 (2000).

Google Scholar

[9] A. Fujita, S. Fujieda, Y. Hasegawa, and K. Fukamichi: Phys. Rev. B 67 104416(2003).

Google Scholar

[10] Y.F. Chen, F. Wang, B.G. Shen, J.R. Sun, G.J. Wang, F.X. Hu, Z.H. Cheng and T. Zhu: J. Appl. Phys 93 6981(2003).

Google Scholar

[11] S.H. Xie, J.Q. Li and Y.H. Zhuang: J. Magn. Magn. Mater 311 589(2007).

Google Scholar

[12] J.L. Zhao, J. Shen, F.X. Hu, Y.X. Li, J.R. Sun and B.G. Shen: J. APPL. PHYS 107, 113911(2010).

Google Scholar

[13] A. Fujiata, Y. Akamatsu and K. Fukamichi: J. Appl. Phys 85 4756 (1999).

Google Scholar

[14] Jr.K.A. Gschneidner and V.K. Pecharsky: Annu. Rev. Mater. Sci 30 387 (2000).

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
