Combined POD and Field Analysis of a Turbine Stage with In Situ Reheat

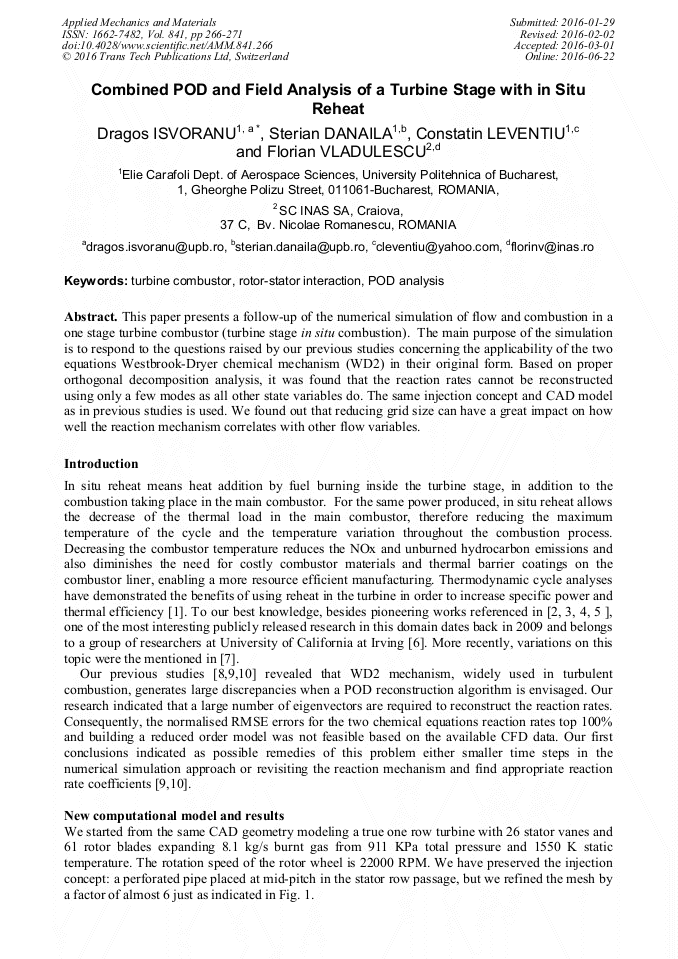

Article Preview

Abstract:

This paper presents a follow-up of the numerical simulation of flow and combustion in a one stage turbine combustor (turbine stage in situ combustion). The main purpose of the simulation is to respond to the questions raised by our previous studies concerning the applicability of the two equations Westbrook-Dryer chemical mechanism (WD2) in their original form. Based on proper orthogonal decomposition analysis, it was found that the reaction rates cannot be reconstructed using only a few modes as all other state variables do. The same injection concept and CAD model as in previous studies is used. We found out that reducing grid size can have a great impact on how well the reaction mechanism correlates with other flow variables.

You might also be interested in these eBooks
Recent Tendency in Aerospace, Robotics, Manufacturing Systems, Energy and Mechanical Engineering View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 841)

Pages:

266-271

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.841.266

Citation:

Cite this paper

Online since:

June 2016

Authors:

Dragos Isvoranu*, Sterian Danaila, Constantin Leventiu, Florian Vladulescu

Keywords:

POD Analysis, Rotor-Stator Interaction, Turbine Combustor

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] W.A. Sirignano, F. Liu, Performance Increases for Gas-Turbines Engines Through Combustion Inside the Turbine, Journal of Propulsion and Power, 15(1), pp.111-118, (1999).

DOI: 10.2514/2.5398

Google Scholar

[2] D. Isvoranu, P.G.A. Cizmas, Numerical Simulation of Combustion and Rotor-Stator Interaction in a Turbine Combustor, International Journal of Rotating Machinery, 9(5), pp.363-374, (2003).

DOI: 10.1155/s1023621x03000344

Google Scholar

[3] S. Chambers, H. Flitan, P. Cizmas, D. Bachovchin, T. Lippert, D. Little, The Influence of In Situ Reheat on Turbine-Combustor Performance, Journal of Engineering for Gas Turbines and Power, 128(7), pp.560-572, (2006).

DOI: 10.1115/1.2135812

Google Scholar

[4] D. Bachovchin, T. Lippert, R.A. Newby and P.G.A. Cizmas, Gas Turbine Reheat Using In Situ Combustion, Final Report DOE/NETL Contract No. DE-FC26-00NT40913, Siemens Westinghouse Power Corporation, (2004).

DOI: 10.2172/827534

Google Scholar

[5] Dragos Isvoranu, Parvu Petrisor, Virgil Stanciu, Corneliu Berbente, Viorel Badescu, Numerical Simulation of Turbine in-situ, combustion based on multi-step reaction mechanism, SET2006 5th Intl. Conference, 671-676, 30 Aug. -1 Sep., Vicenza, Italy, (2006).

Google Scholar

[6] W.A. Sirignano, D. Dunn-Rankine, F. Liu, B. Colcord and S. Puranam, Turbine Burners: Turbulent combustion of liquid fuels. Final Report Grant Number FA 9550-06-1-0194, Department of Mechanical and Aerospace Engineering, University of California, Irvine, (2009).

DOI: 10.21236/ada513881

Google Scholar

[7] MO Da, TANG Hao, LI Ming, ZHANG Chao, ZHANG Hai-fei. Influence of Secondary Air Injection Angle on Inter-Blade Turbine Burner, Aeroengine, 35(5), (2012).

Google Scholar

[8] S. Danaila, D. Isvoranu, C. Leventiu, Preliminary Simulation of a 3D Turbine Stage with In Situ Combustion, Applied Mechanics and Materials, Vol. 772, pp.103-107, (2015).

DOI: 10.4028/www.scientific.net/amm.772.103

Google Scholar

[9] Sterian Danaila, Dragos Isvoranu and Constantin Leventiu, POD reconstruction for a gas turbine with in-situ combustion, 2nd edition of New Challenges in Aerospace Science International Conference, NCAS 2015, Bucharest, Romania, 5-6 November, (2015).

DOI: 10.19062/1842-9238.2015.13.3.14

Google Scholar

[10] Sterian Danaila, Dragos Isvoranu and Constantin Leventiu, POD analysis of the reaction rates in a turbine stage with in situ combustion. (accepted for publication in Review of the Air Force Academy).

DOI: 10.19062/1842-9238.2015.13.3.14

Google Scholar

[11] Spalart, P.R., Jou, W., Strelets, M., and Allmaras, S., Comments on the feasibility of LES for wings, and on a hybrid RANS/LES approach, Advances in DNS/LES. 1st AFOSR Int. Conf. on DNS/LES, (1997).

Google Scholar

[12] C. K. Westbrook and F. L. Dryer. Simplified reaction mechanisms for the oxidation of hydrocarbon fuels in flames, Combustion Science and Technology, 27, p.31–43, (1981).

DOI: 10.1080/00102208108946970

Google Scholar

[13] Sirovich, L. Turbulence and the dynamics of coherent structures, parts I–III. Q. Appl. Math. XLV (3), (1987).

Google Scholar
