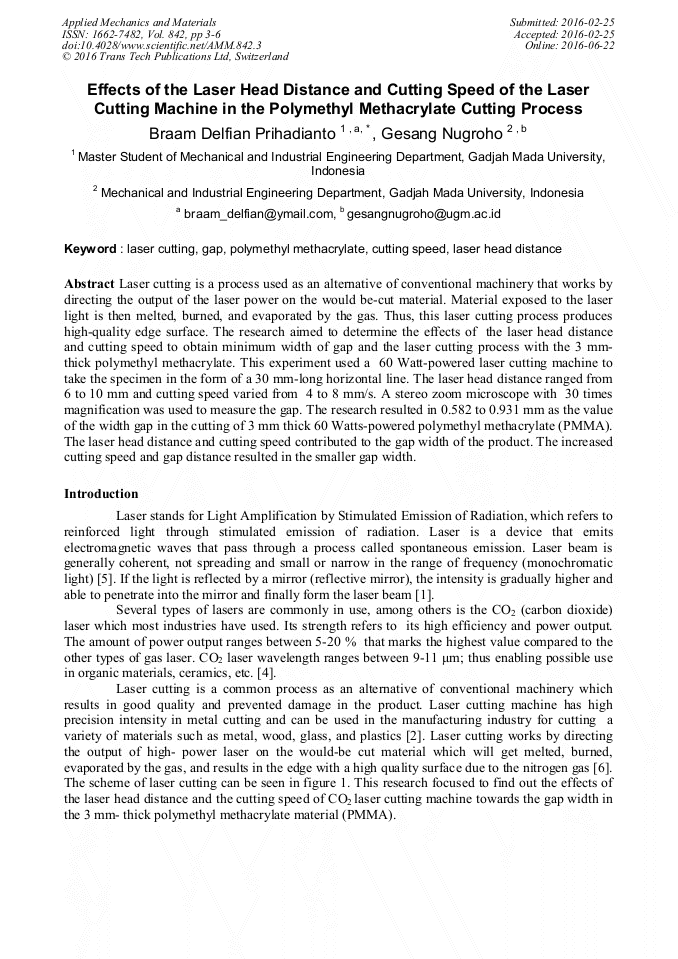

Effects of the Laser Head Distance and Cutting Speed of the Laser Cutting Machine in the Polymethyl Methacrylate Cutting Process

Abstract:

Laser cutting is a process used as an alternative of conventional machinery that works by directing the output of the laser power on the would be-cut material. Material exposed to the laser light is then melted, burned, and evaporated by the gas. Thus, this laser cutting process produces high-quality edge surface. The research aimed to determine the effects of the laser head distance and cutting speed to obtain minimum width of gap and the laser cutting process with the 3 mm-thick polymethyl methacrylate. This experiment used a 60 Watt-powered laser cutting machine to take the specimen in the form of a 30 mm-long horizontal line. The laser head distance ranged from 6 to 10 mm and cutting speed varied from 4 to 8 mm/s. A stereo zoom microscope with 30 times magnification was used to measure the gap. The research resulted in 0.582 to 0.931 mm as the value of the width gap in the cutting of 3 mm thick 60 Watts-powered polymethyl methacrylate (PMMA). The laser head distance and cutting speed contributed to the gap width of the product. The increased cutting speed and gap distance resulted in the smaller gap width.

You might also be interested in these eBooks

Materials and Technologies in Modern Mechanical Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 842)

Pages:

3-6

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.842.3

Citation:

Cite this paper

Online since:

June 2016

Authors:

Braam Delfian Prihadianto*, Gesang Nugroho

Keywords:

Cutting Speed, GaP, Laser Cutting, Laser Head Distance, Polymethyl Methacrylate

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Baskoro, A. S, Herwandi, Ismail, KGS., Ssiwanta, A., Kiswanto, G., 2011, Analysis of Cutting Process of Materials Using Low Power Laser Diode and CO2. International Journal of Mechanical & Mechatronics Enggineering IJMME-IJENS Vol : 11 No : 06.

Google Scholar

[2] Dubey, A., K., Yadava, V., 2008, Laser Beam Machining, International Journal of Machine Tools & Manufacture 48 : 609-628.

DOI: 10.1016/j.ijmachtools.2007.10.017

Google Scholar

[3] Herwandi, 2011, Analisis Proses Pemotongan dan Sintering Pada Bahan Polymer Menggunakan Laser Diode Daya Rendah. FT UI.

Google Scholar

[4] Hitz, Breck., Ewing, J.J., Hecht, Jeff., 2001, Introduction To Laser Technology (Thrid Edition).

Google Scholar

[5] Ismail, KGS., M, 2012, Analisis Fabrikasi perangkat Mikrofluidik Pada Material Acrylic Menggunakan Laser CO2 Daya Rendah. FT UI.

DOI: 10.31884/jtt.v2i2.20

Google Scholar

[6] Samarya, Y., T., Sulianti, M., M., Parangin-angin, B., Situmorang, M., Aplikasi Laser CO2 Untuk Pemotongan (Cutting) Material Menggunakan Mesin CNC (Control Numeric Computer). JSF Vol. 1 No. 1/(2013).

Google Scholar
