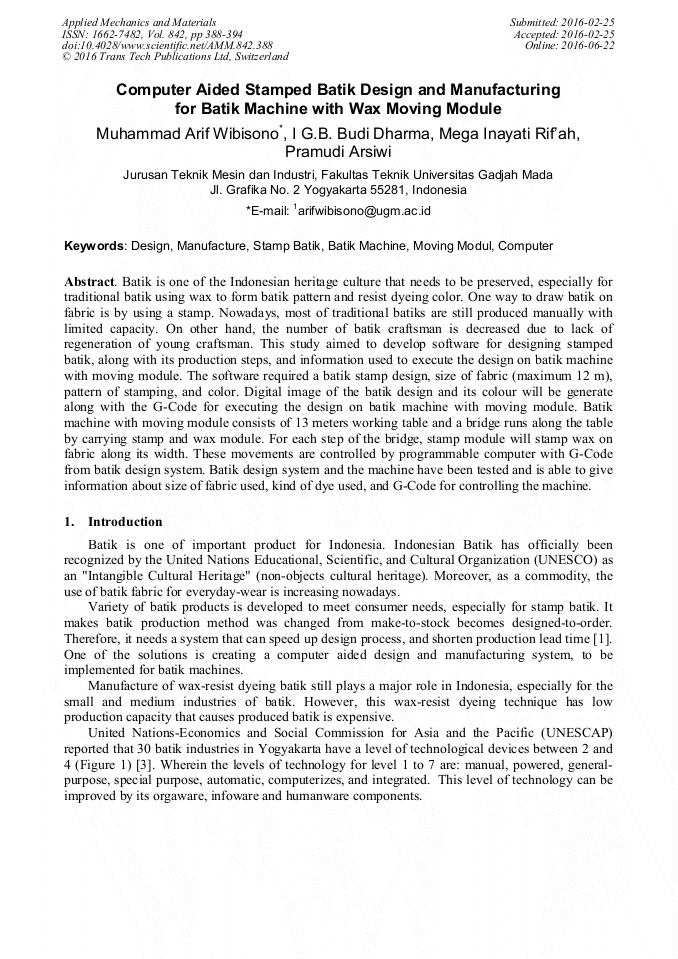

Computer Aided Stamped Batik Design and Manufacturing for Batik Machine with Wax Moving Module

Abstract:

Batik is one of the Indonesian heritage culture that needs to be preserved, especially for traditional batik using wax to form batik pattern and resist dyeing color. One way to draw batik on fabric is by using a stamp. Nowadays, most of traditional batiks are still produced manually with limited capacity. On other hand, the number of batik craftsman is decreased due to lack of regeneration of young craftsman. This study aimed to develop software for designing stamped batik, along with its production steps, and information used to execute the design on batik machine with moving module. The software required a batik stamp design, size of fabric (maximum 12 m), pattern of stamping, and color. Digital image of the batik design and its colour will be generate along with the G-Code for executing the design on batik machine with moving module. Batik machine with moving module consists of 13 meters working table and a bridge runs along the table by carrying stamp and wax module. For each step of the bridge, stamp module will stamp wax on fabric along its width. These movements are controlled by programmable computer with G-Code from batik design system. Batik design system and the machine have been tested and is able to give information about size of fabric used, kind of dye used, and G-Code for controlling the machine.

• Periodical: Applied Mechanics and Materials (Volume 842)
• Pages: 388-394
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.842.388
• Online since: June 2016
• Authors: Muhammad Arif Wibisono*, I.G.B. Budi Dharma, Mega Inayati Rif’ah, Pramudi Arsiwi
• Keywords: Batik Machine, Computer, Design, Manufacture, Moving Modul, Stamp Batik

References

[1] M.A. Wibisono, C.G. Wisudawan, E.H. Afriliana, A. Arbi, Integrasi Proses Desain dan Manufaktur Batik Tulis, Seminar Nasional Tahunan Teknik Mesin (SNTTM) 9 (2010).

[2] M.A. Wibisono, I.S. Toha, Desain Batik Canting Cap Berbantuan Komputer, Prosiding Seminar Nasional Proses Produksi, Universitas Atma Jaya Yogyakarta (2000) 83-93.

[3] M. Anggraini, M.A. Wibisono, A. Sudiarso, A. Suwastono, Pengembangan Alat Ukur Komponen Teknologi pada Industri Kerajinan dengan Metode Teknometrik, Prosiding Seminar Nasional TEKNOIN (2011).
