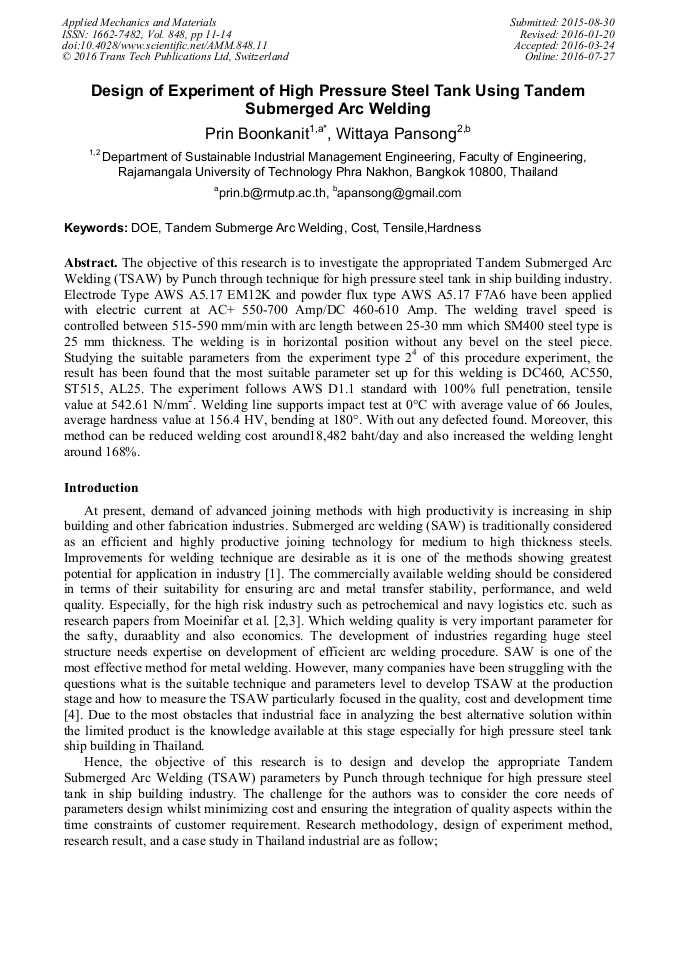

Design of Experiment of High Pressure Steel Tank Using Tandem Submerged Arc Welding

Abstract:

The objective of this research is to investigate the appropriated Tandem Submerged Arc Welding (TSAW) by Punch through technique for high pressure steel tank in ship building industry. Electrode Type AWS A5.17 EM12K and powder flux type AWS A5.17 F7A6 have been applied with electric current at AC+ 550-700 Amp/DC 460-610 Amp. The welding travel speed is controlled between 515-590 mm/min with arc length between 25-30 mm which SM400 steel type is 25 mm thickness. The welding is in horizontal position without any bevel on the steel piece. Studying the suitable parameters from the experiment type 2⁴ of this procedure experiment, the result has been found that the most suitable parameter set up for this welding is DC460, AC550, ST515, AL25. The experiment follows AWS D1.1 standard with 100% full penetration, tensile value at 542.61 N/mm². Welding line supports impact test at 0°C with average value of 66 Joules, average hardness value at 156.4 HV, bending at 180°. With out any defected found. Moreover, this method can be reduced welding cost around18,482 baht/day and also increased the welding lenght around 168%.

• Periodical: Applied Mechanics and Materials (Volume 848)
• Pages: 11-14
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.848.11
• Online since: July 2016
• Authors: Prin Boonkanit*, Wittaya Pansong
• Keywords: Cost, DOE, Hardness, Tandem Submerge Arc Welding, Tensile

References

[1] Jang, K.C. Lee, D.G., Kuk, J.M., Kim, I.S., Welding and environmental test condition effect in weldability and strength of Al alloy. Journal of Materials Processing Technology. (2005) 164–165.

DOI: 10.1016/j.jmatprotec.2005.02.193

[2] Moeinifar, S., Kokabi, A.H., Madaah Hosseini, H.R., Role of tandem submerged arc welding thermal cycles on properties of the heat affected zone in X80 micro alloyed pipe line steel. Journal of Materials Processing Technology. 211 (2011a) 368-375.

DOI: 10.1016/j.jmatprotec.2010.10.011

[3] Moeinifar, S., Kokabi, A.H., Madaah Hosseini, H.R., Effect of tandem submerged arc welding process and parameters of Gleeble. Simulator thermal cycles on properties of the intercritically reheated heat affected zone. Materials and Design. 32 (2011b) 869-876.

DOI: 10.1016/j.matdes.2010.07.005

[4] Won Cho, Dae, Woo-Hyun Song, Min-Hyun Cho, Suck-Joo Na., Analysis of submerged arc welding process by three-dimensional computational fluid dynamics simulations. Journal of Materials Processing Technology. 213(2013) 2278-2291.

DOI: 10.1016/j.jmatprotec.2013.06.017

[5] AWS D1. 1/D1. 1M: 2010 Structural Welding Code-Steel. 22th Edition, 125-228.

[6] ASTM E8/E8M-11a Standard Test Methods for Tension Testing of Metallic Materials.

[7] ASTM E23-07a Standard Test Methods for Notched Bar Impact Test of Metallic Materials.

[8] ASTM E384-11 Standard Test Methods for Micro indentation Hardness of Materials.
