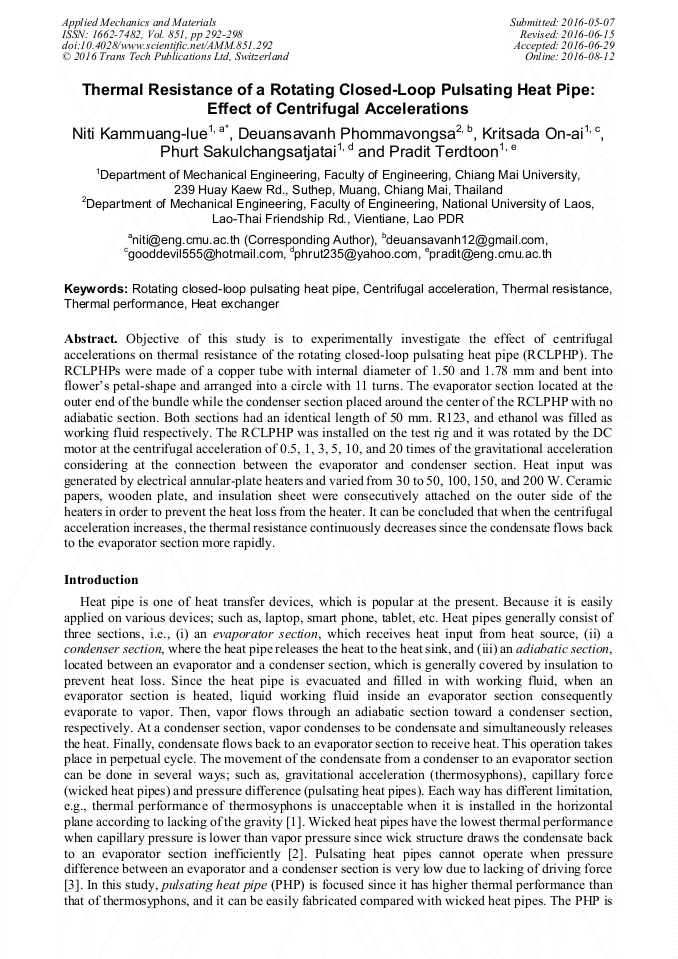

Thermal Resistance of a Rotating Closed-Loop Pulsating Heat Pipe: Effect of Centrifugal Accelerations

Abstract:

Objective of this study is to experimentally investigate the effect of centrifugal accelerations on thermal resistance of the rotating closed-loop pulsating heat pipe (RCLPHP). The RCLPHPs were made of a copper tube with internal diameter of 1.50 and 1.78 mm and bent into flower’s petal-shape and arranged into a circle with 11 turns. The evaporator section located at the outer end of the bundle while the condenser section placed around the center of the RCLPHP with no adiabatic section. Both sections had an identical length of 50 mm. R123, and ethanol was filled as working fluid respectively. The RCLPHP was installed on the test rig and it was rotated by the DC motor at the centrifugal acceleration of 0.5, 1, 3, 5, 10, and 20 times of the gravitational acceleration considering at the connection between the evaporator and condenser section. Heat input was generated by electrical annular-plate heaters and varied from 30 to 50, 100, 150, and 200 W. Ceramic papers, wooden plate, and insulation sheet were consecutively attached on the outer side of the heaters in order to prevent the heat loss from the heater. It can be concluded that when the centrifugal acceleration increases, the thermal resistance continuously decreases since the condensate flows back to the evaporator section more rapidly.

• Periodical: Applied Mechanics and Materials (Volume 851)
• Pages: 292-298
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.851.292
• Online since: August 2016
• Authors: Niti Kammuang-Lue*, Deuansavanh Phommavongsa, Kritsada On-Ai, Phrut Sakulchangsatjatai, Pradit Terdtoon
• Keywords: Centrifugal Acceleration, Heat Exchanger, Rotating Closed-Loop Pulsating Heat Pipe, Thermal Performance, Thermal Resistance

References

[1] H. Akachi, F. Polasek, P. Stulc, Pulsating heat pipe, in: Proc. of the 5th International Heat Pipe Symposium, Melbourne Australia, 1995, pp.208-217.

[2] S. Maezawa, K.Y. Gi, A. Minamisawa, H. Akachi, Thermal performance of capillary tube thermosyphon, in: Procs. of the 9th International Heat Pipe Conference, Albuquerque USA, 1995, pp.791-795.

[3] N. Soponpongpipat, P. Sakulchangsatjati, N. Kammuang-lue, P. Terdtoon, Investigation of the startup condition of a closed-loop oscillating heat pipe, Heat Transf. Eng. 30 (2009) 626-642.

DOI: 10.1080/01457630802656876

[4] T. Payakaruk, P. Terdtoon, S. Ritthidech, Correlations to predict heat transfer characteristics of an inclined closed two-phase thermosyphon at normal operating conditions, Appl. Therm. Eng. 20 (2000) 781-790.

DOI: 10.1016/s1359-4311(99)00047-2

[5] L. Jiang, Y. Tang, H. Wu, W. Zhou, L. Jiang, Fabrication and thermal performance of grooved-sintered wick heat pipe, J. Centr. South University, 21 (2014) 668-676.

DOI: 10.1007/s11771-014-1987-3

[6] N. Kammuang-lue, P. Sakulchangsatjatai, M. Sornsueb, P. Terdtoon, Effect of working fluids on thermal effectiveness of closed-loop pulsating heat pipe applied in ice storage system, in: Proc. of the 8th International Heat Pipe Symposium, Kumamoto Japan, 2006, pp.323-328.

DOI: 10.1109/eptc.2012.6507067

[7] P. Yeunyonkul, P. Sakulchangsatjatai, N. Kammuang-lue, P. Terdtoon, Experimental investigation of the closed loop oscillating heat pipe condenser for vapor compression refrigeration, J. Appl. Sci. Eng. 15 (2012) 117-122.

DOI: 10.1109/eptc.2012.6507067

[8] N. Kammuang-lue, W. Paksilp, Application of closed-loop pulsating heat pipe as engine radiator, RMUTI J. 1 (2015) 315-323.

[9] M. Aboutalebi, N. Moghaddam, N. Mohammadi, M.B. Shafii, Experimental investigation on performance of a rotating closed loop pulsating heat pipe, Int. Commun. Heat Mass Transf. 45 (2013) 137-145.

DOI: 10.1016/j.icheatmasstransfer.2013.04.008

[10] M. Mohammadi, M. Mohammadi, M.B. Shafii, Experimental investigation of a pulsating heat pipe using ferrofluid (magnetic nanofluid), ASME J. Heat Transf. 134 (2012) 1-3.

DOI: 10.1115/1.4004805
