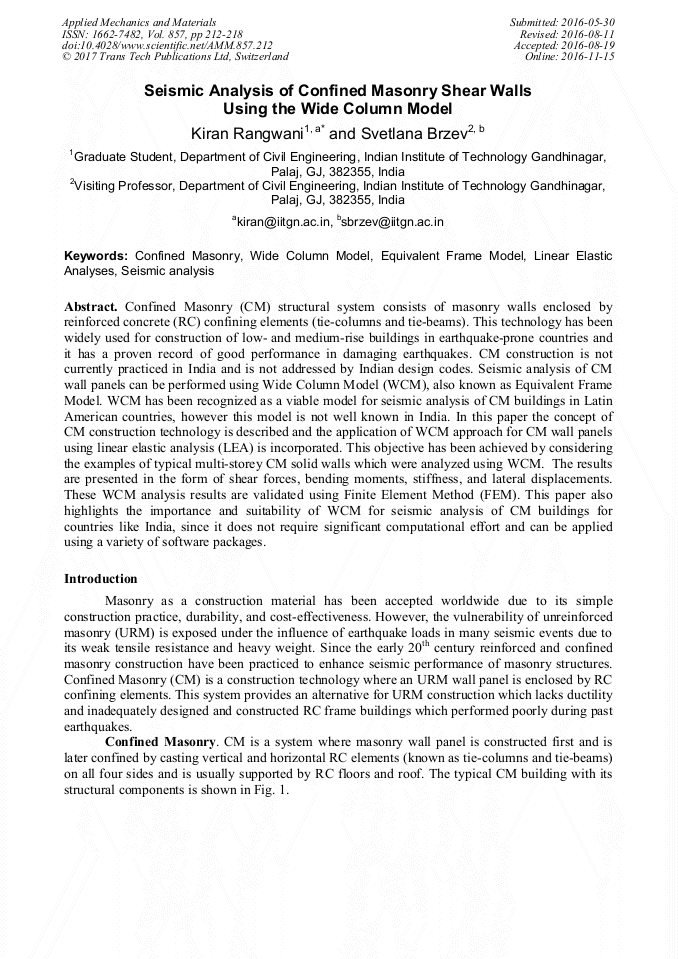

Seismic Analysis of Confined Masonry Shear Walls Using the Wide Column Model

Abstract:

Confined Masonry (CM) structural system consists of masonry walls enclosed by reinforced concrete (RC) confining elements (tie-columns and tie-beams) and is usually supported by reinforced concrete floors and roof. This technology has been widely used for construction of low-and medium-rise buildings in Latin America, Europe, South Asia, and Middle East, and it has a proven record of good performance in damaging earthquakes. CM construction is not currently practiced in India and is not addressed by Indian design codes. Seismic analysis of CM wall panels can be performed using Wide Column Model (WCM), also known as Equivalent Frame Model. WCM is a macro model where a wall structure and the supporting floors and roof are idealized as a bare frame. CM walls can be modelled as wide columns with transformed section properties accounting for composite action of masonry and RC tie-columns. Beams in these bare frames have rigid segments simulating the effect of wall stiffness, and flexible segments that simulate the effect of floor and roof slabs. WCM has been recognized as a viable model for seismic analysis of CM buildings in Latin American countries, however this model is not well known in India. The results presented in this paper are based on linear elastic analyses of typical multi-storey CM solid walls and walls with openings. The output parameters include shear forces, bending moments, stiffness, and lateral displacements. A comparison of the results obtained using the WCM and the Finite Element Method (FEM) has been presented. WCM can be useful for seismic analysis of CM buildings since it does not require significant computational effort and can be applied using a variety of software packages.

• Periodical: Applied Mechanics and Materials (Volume 857)
• Pages: 212-218
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.857.212
• Online since: November 2016
• Authors: Kiran Rangwani*, Svetlana Brzev
• Keywords: Confined Masonry, Equivalent Frame Model, Linear Elastic Analyses, Seismic Analysis, Wide Column Model

References

[1] Brzev S. (2008), Earthquake-Resistant Confined Masonry Construction, NICEE, National Information Center of Earthquake Engineering, Indian Institute of Technology Kanpur.

[2] Meli R., Brzev S. et al (2011), Seismic Design Guide for Low-Rise Confined Masonry Buildings, Earthquake Engineering Research Institute (EERI), Oakland, California, USA.

[3] Jain S. K., Brzev S., et al (2015), Confined Masonry for Residential Construction, Indian Institute of Technology Gandhinagar, India (www. iitgn. ac. in/sites/default/files/ConfinedMasonry. pdf).

[4] Clough R. W., King IP., Wilson EL. (1964), Structural Analysis of Multi-storey Buildings, Journal of Structural Division, ASCE, Vol. 90, p.19–34.

[5] MacLeod I.A., and Hosny H. M. (1977), Frame Analysis of Shear Wall Cores, Journal of Structural Division, Vol. 103, No. ST10, p.2037-(2047).

DOI: 10.1061/jsdeag.0004749

[6] Smith B. S. (1970), Modified Beam Method for Analyzing Interconnected Shear Walls, ACI Concrete Journal, Vol. 67, pp.977-980.

DOI: 10.14359/7331

[7] Mattacchione A. (1991), Equivalent Frame Method Applied to Concrete Shear-walls, ACI Concrete International, Vol. 13, pp.65-72.

[8] Kappos A. J., Penelis G. G., and Drakopoulos C. G. (2002), Evaluation of Simplified Models for Lateral Loads Analysis of Unreinforced Masonry Buildings, Journal of Structural Engineering, ASCE, Vol. 128, No. 7, pp.890-897.

DOI: 10.1061/(asce)0733-9445(2002)128:7(890)

[9] Lagomarsino S., Penna A., Galasco A., and Cattari S. (2013), TREMURI Program: An Equivalent Frame Model for the Nonlinear Seismic Analysis of Masonry Buildings, Journal of Engineering Structures, Vol. 56, pp.1787-1799.

DOI: 10.1016/j.engstruct.2013.08.002

[10] Simões A., Bento R., Gago A., and Lopes M. (2012), Seismic Vulnerability of Old Masonry 'Gaioleiro' Building in Lisbon, Proceeding of 15thWorld Conference of Earthquake Engineering, Lisbon, Portugal.

[11] Taveras M. A. (2008), Revisión de las recomendaciones para modelar y analizar estructuras de mampostería confinada ante carga lateral", Master, s thesis, Graduate of Engineering, UNAM, Mexico.

[12] NTC-M (2004), Technical Norms for Design and Construction of Masonry Structures, Mexico D.F. (www. confinedmasonry. org/codes-and-standards/#more-260).

[13] IS 456 (2000), Plain and Reinforced Concrete - Code of Practice, Bureau of Indian Standards (BIS), New Delhi, India.

[14] CSI (2007) SAP2000 V11. 0. 2, Static and Dynamic Finite Element Analysis of Structures, Computers and Structures Inc., Berkeley, California, USA.

[15] IS 1893 IS 1893-1 (2002), Criteria for Earthquake Resistant Design of Structures - Part-1: General Provisions and Buildings, Bureau of Indian Standards (BIS), New Delhi, India.

[16] Rangwani K. (2016), Seismic Analysis of Confined Masonry Shear Walls, M. Tech Thesis, Indian Institute of Gandhinagar, Gujarat, India.
