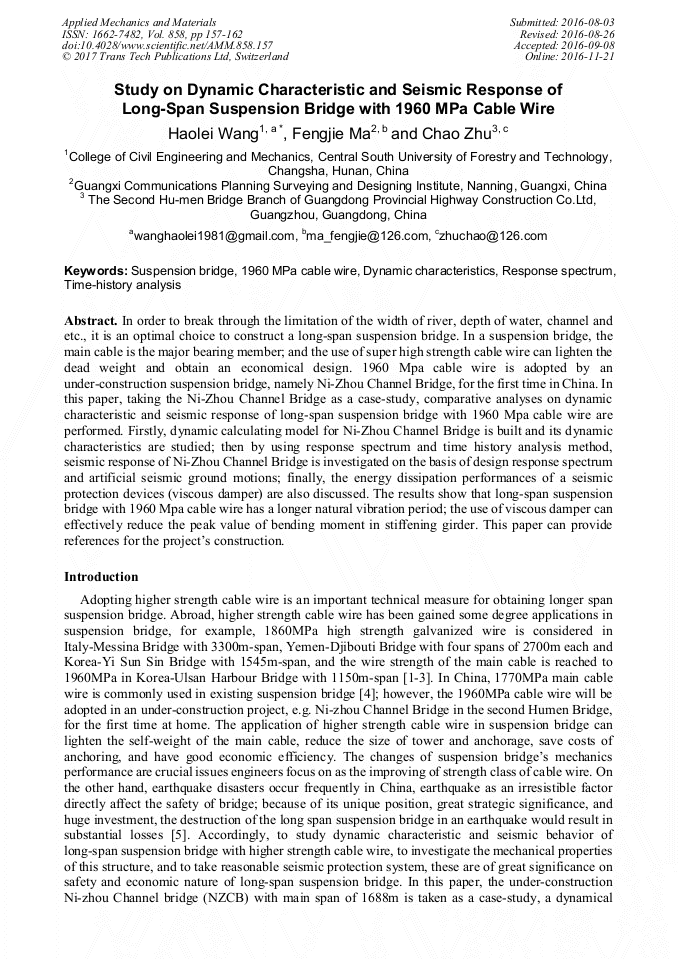

Study on Dynamic Characteristic and Seismic Response of Long-Span Suspension Bridge with 1960 MPa Cable Wire

Abstract:

In order to break through the limitation of the width of river, depth of water, channel and etc., it is an optimal choice to construct a long-span suspension bridge. In a suspension bridge, the main cable is the major bearing member; and the use of super high strength cable wire can lighten the dead weight and obtain an economical design. 1960 Mpa cable wire is adopted by an under-construction suspension bridge, namely Ni-Zhou Channel Bridge, for the first time in China. In this paper, taking the Ni-Zhou Channel Bridge as a case-study, comparative analyses on dynamic characteristic and seismic response of long-span suspension bridge with 1960 Mpa cable wire are performed. Firstly, dynamic calculating model for Ni-Zhou Channel Bridge is built and its dynamic characteristics are studied; then by using response spectrum and time history analysis method, seismic response of Ni-Zhou Channel Bridge is investigated on the basis of design response spectrum and artificial seismic ground motions; finally, the energy dissipation performances of a seismic protection devices (viscous damper) are also discussed. The results show that long-span suspension bridge with 1960 Mpa cable wire has a longer natural vibration period; the use of viscous damper can effectively reduce the peak value of bending moment in stiffening girder. This paper can provide references for the project’s construction.

• Periodical: Applied Mechanics and Materials (Volume 858)
• Pages: 157-162
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.858.157
• Online since: November 2016
• Authors: Hao Lei Wang*, Feng Jie Ma, Chao Zhu
• Keywords: 1960 MPa Cable Wire, Dynamic Characteristics, Response Spectrum, Suspension Bridge, Time-History Analysis

References

[1] L. Jensen, M. L. Bloomstine, Application of high strength steel in super long span modern suspension bridge design, NSCC. (2009) 494-501.

[2] H. Yin, J. M. Ye, High strength steel wire for super-span suspension bridge and main cable production and setup technique, China Steel Wire Production Information Association Conference Proceedings. (2010) 26-31.

[3] K. H. Park, J. H. Lee, etc., The planning and basic design of ulsan harbur bridge, Korea-China-Japan Symposium on steel structure construction, POSCO Center, 5th Nov. (2009) 1-10.

[4] F. C. Meng, Suspension Bridge, China Communication Press, Beijing, (2011).

[5] L. C. Fan, Seismic Design of Bridge, Tongji University Press, Shanghai, (1996).

[6] S. Feng, Y. Q. Xiang, X. Xie, Dynamic Characteristics and Multi-support Seismic Response Analysis of a Super-large-span Suspension Bridge, J. Highway Transport. Res. Dev. 8 (2005) 31-35.

[7] Chongqing Communications Technology Research and Design Institute Co., Ltd, Guidelines for Seismic Design of Highway Bridges (JTG/TB02-01-2008), China Communication Press, Beijing, (2008).

[8] L. C. Fan, Z. Q. Wang, Seismic Isolation Design of Bridge, China Comm. Press, Beijing, (2001).

[9] M. C. Constantinou, A. S. Whittaker, Y. Kalpakidis, etc., Performance of Seismic Isolation and Energy Dissipation Hardware, China Railway Publishing House, Beijing, (2012).

[10] Q. Wang, Research on Anti-Seismic Viscous Damper Parameters, Chang'an University, Xi'an, China. (2011) 20-58.
