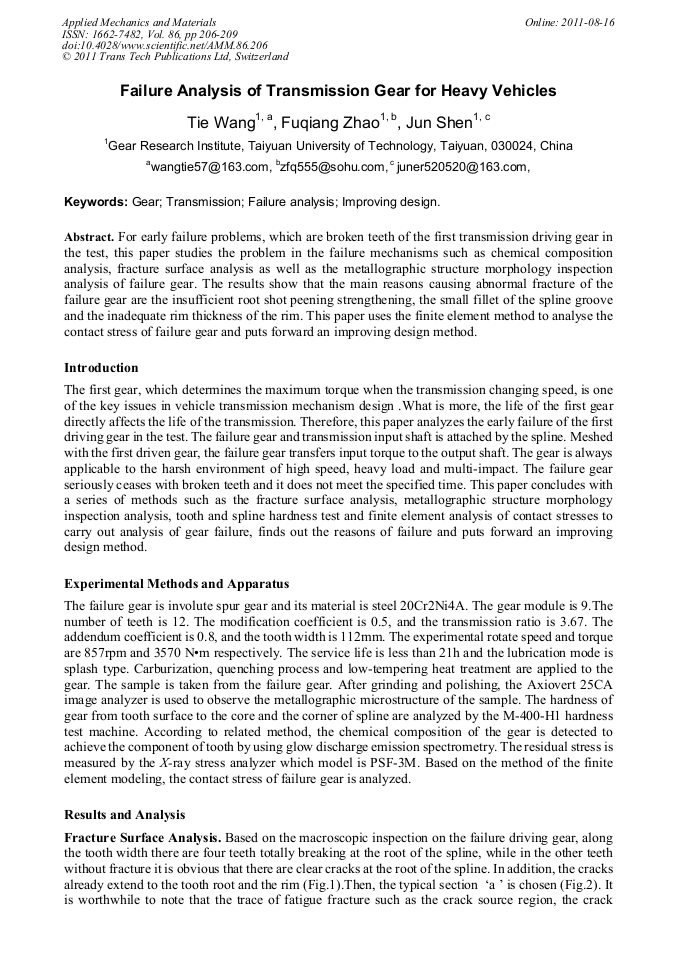

Failure Analysis of Transmission Gear for Heavy Vehicles

Abstract:

For early failure problems, which are broken teeth of the first transmission driving gear in the test, this paper studies the problem in the failure mechanisms such as chemical composition analysis, fracture surface analysis as well as the metallographic structure morphology inspection analysis of failure gear. The results show that the main reasons causing abnormal fracture of the failure gear are the insufficient root shot peening strengthening, the small fillet of the spline groove and the inadequate rim thickness of the rim. This paper uses the finite element method to analyse the contact stress of failure gear and puts forward an improving design method.

• Periodical: Applied Mechanics and Materials (Volume 86)
• Pages: 206-209
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.86.206
• Online since: August 2011
• Authors: Tie Wang, Fu Qiang Zhao, Jun Shen
• Keywords: Failure Analysis, Gear, Improving Design, Transmission

References

[1] Z. Jia, X. Zhong and M. Fu: New Practical Handbook of Casting Standard (Chemical industry press, China 2009).

[2] China Gear Standardization Technical Committee: China Machinery Industry Standard Assembly, Gear and Gear Transmission Part (China standard press, China 2005).

[3] X. Zhu: Handbook of Mechanical Transmission Design (Publishing House of Electronics Industry, China 2007).

[4] S. Park, J. Leea and U. Moon: Engineering Failure Analysis Vol. 17 (2010), p.521.

[5] T. Wang, G. Li, R. Zhang and F. Zhao, in: The 4th China CAE Annual Conference Proceedings, edited by CSTAM, volume 5 of CAE special technology application, China, Xi'an (2008).
