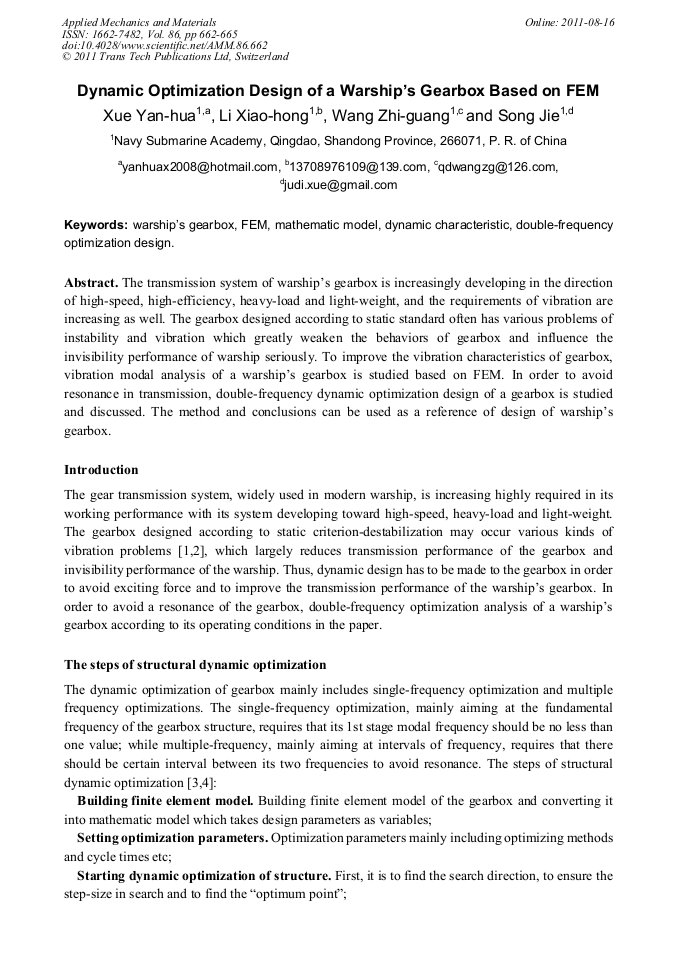

Dynamic Optimization Design of a Warship’s Gearbox Based on FEM

Abstract:

The transmission system of warship’s gearbox is increasingly developing in the direction of high-speed, high-efficiency, heavy-load and light-weight, and the requirements of vibration are increasing as well. The gearbox designed according to static standard often has various problems of instability and vibration which greatly weaken the behaviors of gearbox and influence the invisibility performance of warship seriously. To improve the vibration characteristics of gearbox, vibration modal analysis of a warship’s gearbox is studied based on FEM. In order to avoid resonance in transmission, double-frequency dynamic optimization design of a gearbox is studied and discussed. The method and conclusions can be used as a reference of design of warship’s gearbox.

• Periodical: Applied Mechanics and Materials (Volume 86)
• Pages: 662-665
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.86.662
• Online since: August 2011
• Authors: Yan Hua Xue, Xiao Hong Li, Zhi Guang Wang, Jie Song
• Keywords: Double-Frequency, Dynamic Characteristic, Finite Element Method (FEM), Mathematical Models, Optimization Design, Warship’s Gearbox

References

[1] Xu yanshen: Dynamic Design of Mechanical Systems (China Machine Press, Beijing 1992).

[2] F·K·Choy: Transaction of the ASME. Vol 144 (1992), p.486.

[3] Chen xin and Jia yulan: Dynamic Mechanical Design Theory and Application (China Machine Press, Beijing 1995).

[4] Chough R W and Penzien J: Dynamic of Structures (MCGraw-Hill Book Company, New York 1975).

[5] Hennrich, C. W: Proc. of the MSC/NASTRAN Euro. User's Conf. (1983).

[6] Liu baoguo, Wu yong etc.: Journal of Mechanical Strength (2001), p.095.
