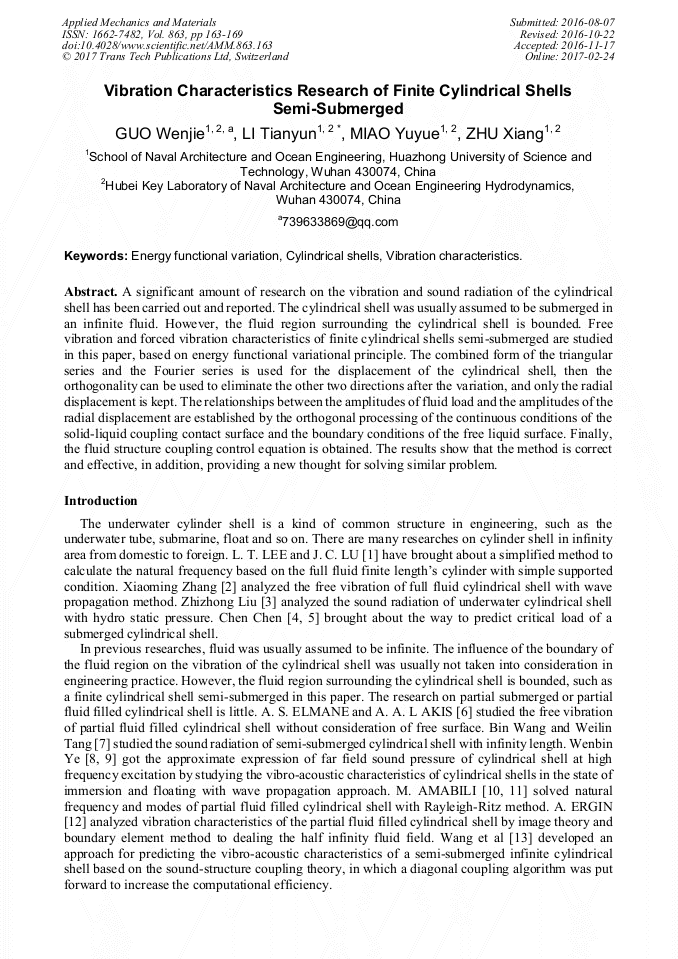

Vibration Characteristics Research of Finite Cylindrical Shells Semi-Submerged

Abstract:

A significant amount of research on the vibration and sound radiation of the cylindrical shell has been carried out and reported. The cylindrical shell was usually assumed to be submerged in an infinite fluid. However, the fluid region surrounding the cylindrical shell is bounded. Free vibration and forced vibration characteristics of finite cylindrical shells semi-submerged are studied in this paper, based on energy functional variational principle. The combined form of the triangular series and the Fourier series is used for the displacement of the cylindrical shell, then the orthogonality can be used to eliminate the other two directions after the variation, and only the radial displacement is kept. The relationships between the amplitudes of fluid load and the amplitudes of the radial displacement are established by the orthogonal processing of the continuous conditions of the solid-liquid coupling contact surface and the boundary conditions of the free liquid surface. Finally, the fluid structure coupling control equation is obtained. The results show that the method is correct and effective, in addition, providing a new thought for solving similar problem.

• Periodical: Applied Mechanics and Materials (Volume 863)
• Pages: 163-169
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.863.163
• Online since: February 2017
• Authors: Wen Jie Guo*, Tian Yun Li, Yu Yue Miao, Xiang Zhu
• Keywords: Cylindrical Shells, Energy Functional Variation, Vibration Characteristics

References

[1] L. T. Lee, J. C. Lu, Free vibration of cylindrical shells filled with liquid, Comput. Struct. 54(5) (1995) 997-1001.

DOI: 10.1016/0045-7949(94)e0169-3

[2] X. M. Zhang, G. R. Liu, K. Y. Lam, Coupled vibration analysis of fluid-filled cylindrical shells, Appl. Acoust. 62(3) (2001) 229-243.

DOI: 10.1016/s0003-682x(00)00045-1

[3] Z. Z. Liu, T. Y. Li, X. Zhu, J. J. Zhang, The effect of Hydrostatic pressure fields on the dispersion characteristics of fluid-shell coupled system, J. Mar. Sci. Appl. 9(2) (2010) 129-136.

DOI: 10.1007/s11804-010-9010-3

[4] C. Chen, T. Y. Li, X. Zhu, et al. Frequency characteristics analysis for critical load of a submerged cylindrical shell based on wave propagation approach, Shipbuild. China, 53(1) (2012) 130-136.

[5] C. Chen, T. Y. Li, X. Zhu, et al. Elastic critical pressure prediction of submerged ring-stiffened cylindrical shell based on frequency characteristics analysis, The Ocean Eng. 32(4) (2014) 89-95.

[6] A. S. Elmane, A. A. L Akis, Vibration analysis of anisotropic open cylindrical shells subjected to a flowing fluid, J. Sound Vib. 5(11) (1997) 111-134.

DOI: 10.1006/jfls.1996.0069

[7] B. Wang, W. L. Tang, Vibro-acoustic characteristics analysis of semi submerged cylindrical shells, 12th Conference on ship underwater noise, Changsha, China, 2009: 33-37.

[8] W. B. Ye, The vibro-acoustic characteristics of cylindrical shells in the state of immersion and floating, Wuhan, Huazhong University of Technology, (2009).

[9] W. B. Ye, The vibro-acoustic characteristics of the cylindrical shell partially submerged in the fluid, Appl. Mech. Mater. 170(3) (2012) 2303-2311.

DOI: 10.4028/www.scientific.net/amm.170-173.2303

[10] M. Amabili, Free vibration of partially filled horizontal cylindrical shells, J. Sound Vib. 191(5) (1996) 757-780.

DOI: 10.1006/jsvi.1996.0154

[11] M. Amabili, Flexural vibration of cylindrical shells partially coupled with external and internal fluids, J. Vib. Acoust. 119(3) (1997) 476-484.

DOI: 10.1115/1.2889748

[12] A. Ergin, P. Tenarel, Free vibration of a partially liquid filled and submerged horizontal cylindrical shell, J. Sound Vib. 254(5) (2002) 951-965.

DOI: 10.1006/jsvi.2001.4139

[13] P. Wang, T. Y. Li, X. Zhu, W. B. Ye, A new approach for analyzing the vibro-acoustic characteristics of a semi-submerged cylindrical shell, OCEANS 2015-Genova, IEEE, 2015, pp.1-5.

DOI: 10.1109/oceans-genova.2015.7271650
