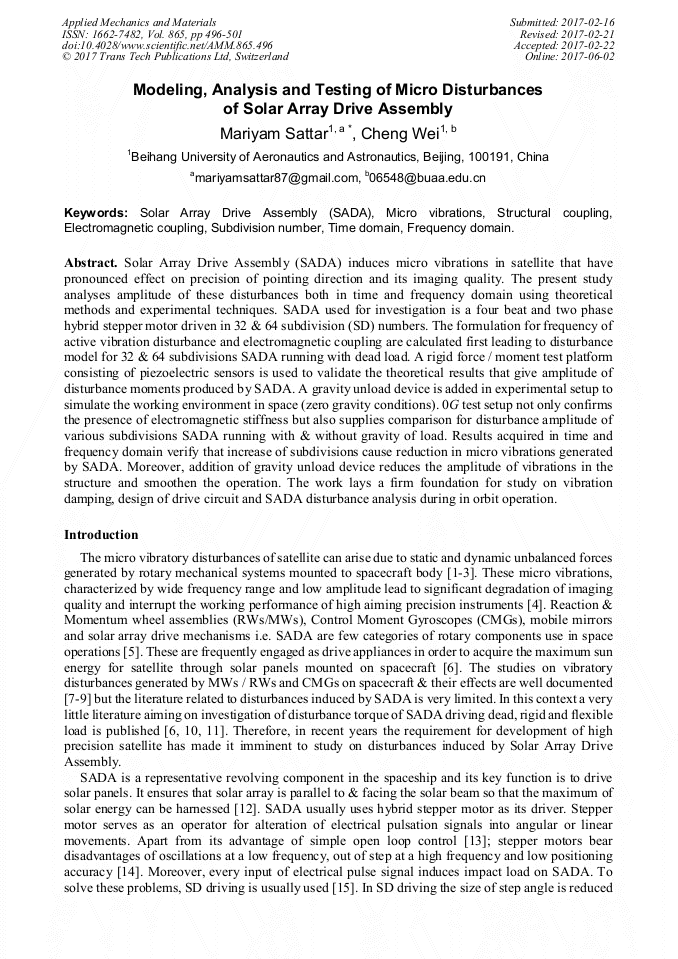

Modeling, Analysis and Testing of Micro Disturbances of Solar Array Drive Assembly

Abstract:

Solar Array Drive Assembly (SADA) induces micro vibrations in satellite that have pronounced effect on precision of pointing direction and its imaging quality. The present study analyses amplitude of these disturbances both in time and frequency domain using theoretical methods and experimental techniques. SADA used for investigation is a four beat and two phase hybrid stepper motor driven in 32 & 64 subdivision (SD) numbers. The formulation for frequency of active vibration disturbance and electromagnetic coupling are calculated first leading to disturbance model for 32 & 64 subdivisions SADA running with dead load. A rigid force / moment test platform consisting of piezoelectric sensors is used to validate the theoretical results that give amplitude of disturbance moments produced by SADA. A gravity unload device is added in experimental setup to simulate the working environment in space (zero gravity conditions). 0G test setup not only confirms the presence of electromagnetic stiffness but also supplies comparison for disturbance amplitude of various subdivisions SADA running with & without gravity of load. Results acquired in time and frequency domain verify that increase of subdivisions cause reduction in micro vibrations generated by SADA. Moreover, addition of gravity unload device reduces the amplitude of vibrations in the structure and smoothen the operation. The work lays a firm foundation for study on vibration damping, design of drive circuit and SADA disturbance analysis during in orbit operation.

• Periodical: Applied Mechanics and Materials (Volume 865)
• Pages: 496-501
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.865.496
• Online since: June 2017
• Authors: Mariyam Sattar*, Cheng Wei
• Keywords: Electromagnetic Coupling, Frequency Domain, Micro Vibrations, Solar Array Drive Assembly (SADA), Structural Coupling, Subdivision Number, Time Domain

References

[1] T. Shimizu, et al., Image stabilization system for Hinode (Solar-B) solar optical telescope, Sol. Phys. 249(2) (2008) 221-232.

[2] T. Wacker, L. Weimer, K. Eckert, GOCE platform micro-vibration verification by test and analysis, European Conference on Spacecraft Structures, Materials and Mechanical Testing, (2005) 1-8.

[3] G. S. Zhou, Aglietti, Z. Zhang, Modelling and testing of a soft suspension design for a reaction/momentum wheel assembly, J. Sound Vib. 330(18) (2011) 4596-4610.

DOI: 10.1016/j.jsv.2011.03.028

[4] Q. Luo, et al., Dynamic modelling and observation of micro-vibrations generated by a Single Gimbal Control Moment Gyro, J. Sound Vib. 332(19) (2013) 4496-4516.

DOI: 10.1016/j.jsv.2013.03.034

[5] Z. P. C. Wei, Z. Yu, Measure of reaction wheels disturbance considering coupling effect, J. Beijing Univ. Aeronaut. Astronaut. 37(8) (2011) 008.

[6] X. Li, W. Cheng, W. Han, Disturbance modeling, simulation and testing of solar array drive assembly, Int. J. Hybrid. Inform. Technol. 7(2) (2014) 123-137.

DOI: 10.14257/ijhit.2014.7.2.13

[7] S. S. Narayan, P. Nair, A. Ghosal, Dynamic interaction of rotating momentum wheels with spacecraft elements, J. Sound Vib. 315(4) (2008) 970-984.

DOI: 10.1016/j.jsv.2008.02.020

[8] S. E. Woodard, et al., Experimental investigation of spacecraft in-flight disturbances and dynamic response, J. Spacecr. Rockets, 34(2) (1997) 199-204.

DOI: 10.2514/2.3210

[9] D. F. Zimbelman, Thermal elastic shock and its effect on TOPEX spacecraft attitude control, Guid. Contr. (1991) 311-336.

[10] J. P. Chen, W. Cheng, W. Han, Analysis and Simulation of Stepper Motor Disturbance Considering Structural Coupling, Appl. Mech. Mater. 526 (2014) 103-108.

DOI: 10.4028/www.scientific.net/amm.526.103

[11] J. P. Chen, W. Cheng, Y. F. Wang, Modeling and Simulation of Solar Array Drive Assembly Disturbance Driving a Flexible Load, Appl. Mech. Mater. 565 (2014) 67-73.

DOI: 10.4028/www.scientific.net/amm.565.67

[12] G. Xing, W. Youping, The universalization-, serialization-, and modularization design of solar array drive assembly (SADA), Chin. J. Space Sci. 22 (2002) 55-67.

[13] M. Zhang, et al., A high stability control method for solar array drive mechanism, Aerosp. Contr. Appl. 4 (2010) 010.

[14] L. Dingbang, Two phase hybrid stepping motor subdivision drive research, in HuNan University of Technology, Changsha University of Science and Technology, (2012), p.52.

[15] G. Baluta, Microstepping mode for stepper motor control, International Symposium on Signals, Circuits and Systems, (2007).

DOI: 10.1109/isscs.2007.4292799

[16] Y. L. Yang, et al, Experiment and simulation of electromagnetic stiffness for stepper motor, Appl. Mech. Mater. Trans Tech Publ, 29-32 (2010)1567-1573.

[17] M. Bodson, J. S. Sato, S. R. Silver, Spontaneous speed reversals in stepper motors, Control Systems Technology, IEEE Trans. 14(2) (2006) 369-373.

DOI: 10.1109/tcst.2005.863675
