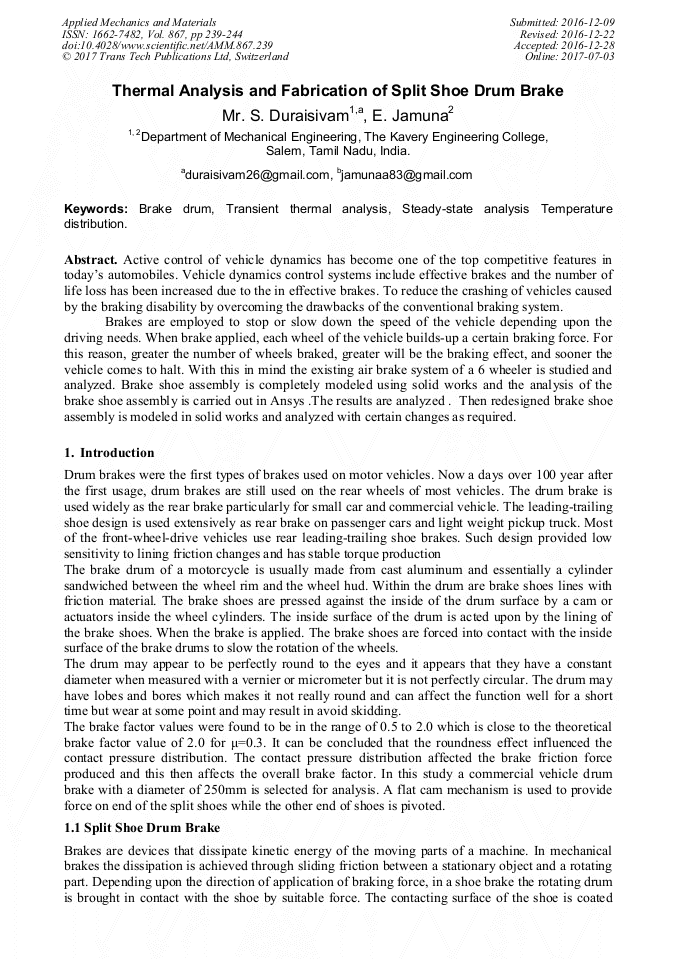

Thermal Analysis and Fabrication of Split Shoe Drum Brake

Abstract:

Active control of vehicle dynamics has become one of the top competitive features in today’s automobiles. Vehicle dynamics control systems include effective brakes and the number of life loss has been increased due to the in effective brakes. To reduce the crashing of vehicles caused by the braking disability by overcoming the drawbacks of the conventional braking system.Brakes are employed to stop or slow down the speed of the vehicle depending upon the driving needs. When brake applied, each wheel of the vehicle builds-up a certain braking force. For this reason, greater the number of wheels braked, greater will be the braking effect, and sooner the vehicle comes to halt. With this in mind the existing air brake system of a 6 wheeler is studied and analyzed. Brake shoe assembly is completely modeled using solid works and the analysis of the brake shoe assembly is carried out in Ansys .The results are analyzed . Then redesigned brake shoe assembly is modeled in solid works and analyzed with certain changes as required.

• Periodical: Applied Mechanics and Materials (Volume 867)
• Pages: 239-244
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.867.239
• Online since: July 2017
• Authors: Sivam Duraisivam, E. Jamuna
• Keywords: Brake Drum, Steady-State Analysis Temperature Distribution, Transient Thermal Analysis

References

[1] Huncharek M. The biomedical and epidemiological characteristics of asbestos related diseases: a review. Yale J Biol Med 1986; 59: 435-5.

[2] Quinn MM, Kriebel D, Buiatti E, et al. An asbestos hazard in the reprocessed textile industry. Am J Ind Med 1987; 11: 255-66.

DOI: 10.1002/ajim.4700110303

[3] Young I, West S, Jackson J, Cantrell P. Prevalence of asbestos related lung among employees in non-asbestos industries. MedJ Aust 1981; 1: 464-7.

DOI: 10.5694/j.1326-5377.1981.tb135736.x

[4] Stove MJ. Clinical studies in asbestosis. American Review of Tuberculosis 1940; 41: 12-26.

[5] Boillat MH, Lob M. Risk of asbestosis in workers employed in replacing automobile brake linings. Schweizerische Medizinische Wochenschrift 1973; 103: 1354-9.

[6] Langer AM, McCaughey WTE. Mesothelioma in a brake repair worker. Lancet 1982; ii: l 101-3.

[7] Selikoff IJ, Lee DH. Asbestos and disease. New York: Academic Press, (1978).

[8] Li FP, Lokich J, Lapey J, Neptune WB, Wilkins EW. Familial mesothelioma after intense asbestos exposure at home. JAMA 1978; 240: 467.

DOI: 10.1001/jama.1978.03290050057022

[9] Castleman B, Camoraota LA, Fritsch AJ, Mazzocchi S, Cranley RG. The hazards of asbestos for brake mechanics. Pub Health Rep 1975; 90: 254-6.
