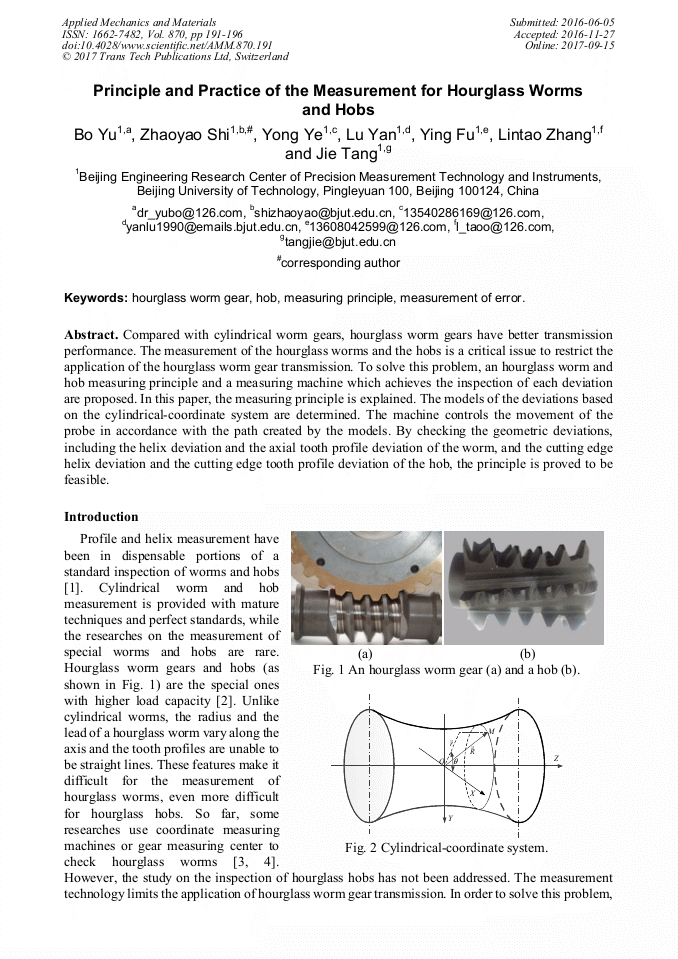

Principle and Practice of the Measurement for Hourglass Worms and Hobs

Abstract:

Compared with cylindrical worm gears, hourglass worm gears have better transmission performance. The measurement of the hourglass worms and the hobs is a critical issue to restrict the application of the hourglass worm gear transmission. To solve this problem, an hourglass worm and hob measuring principle and a measuring machine which achieves the inspection of each deviation are proposed. In this paper, the measuring principle is explained. The models of the deviations based on the cylindrical-coordinate system are determined. The machine controls the movement of the probe in accordance with the path created by the models. By checking the geometric deviations, including the helix deviation and the axial tooth profile deviation of the worm, and the cutting edge helix deviation and the cutting edge tooth profile deviation of the hob, the principle is proved to be feasible.

• Periodical: Applied Mechanics and Materials (Volume 870)
• Pages: 191-196
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.870.191
• Online since: September 2017
• Authors: Bo Yu, Zhao Yao Shi*, Yong Ye, Lu Yan, Ying Fu, Lin Tao Zhang, Jie Tang
• Keywords: Hob, Hourglass Worm Gear, Measurement of Error, Measuring Principle

References

[1] C. Barber, Worm gear measurement, Gear Technology, 5 (1997) 18-23.

[2] L.Y. Zhou, Hourglass worm modification principle and manufacturing technology, National University of Defense Technology Press, Beijing, (2005).

[3] D.T. Qin, J. Yan, G.H. Zhang, Diagnosis of machining errors and improvement of manufacture precision on plane-generated hourglass worm, Mechanical Transmission, 2 (1996) 34-37.

[4] Y.J. Ji, Q.C. Lao, Study on measurement of hourglass worm with gear measuring center, Tool Engineering, 12 (2008) 102-105.

[5] Z.Y. Shi, Y. Ye, Y. Ding, Z. Yong, CNC high precision measuring machine for hobs, Chinese Journal of Scientific Instrument, 20 (1999) 529-531.

[6] I. Dudás, S. Bodzás, The analysis of cutting edges of face gear hob with analytical calculation and three coordinate measuring machine, The 11th International Symposium of Measurement Technology and Intelligent Instruments, Aachen and Braunschweig, Germany. (2013).

[7] L.V. Mohan, M.S. Shunmugam, Geometrical aspects of double enveloping worm gear drive, Mech. and Mach. Theory, 44 (2009) 2053-(2065).

DOI: 10.1016/j.mechmachtheory.2009.05.008

[8] Z.Y. Shi, Research on the theory & technology of measurement for characterized curves of complex helicoidal surfaces, Hefei University of Technology (2001) 53-58.

[9] Z.Y. Shi, Y. Ye, Y. Ding, et al, The profile measurement principle of modified hob cutter & utilization of it, Tool Engineering, 6 (1998) 40-43.
