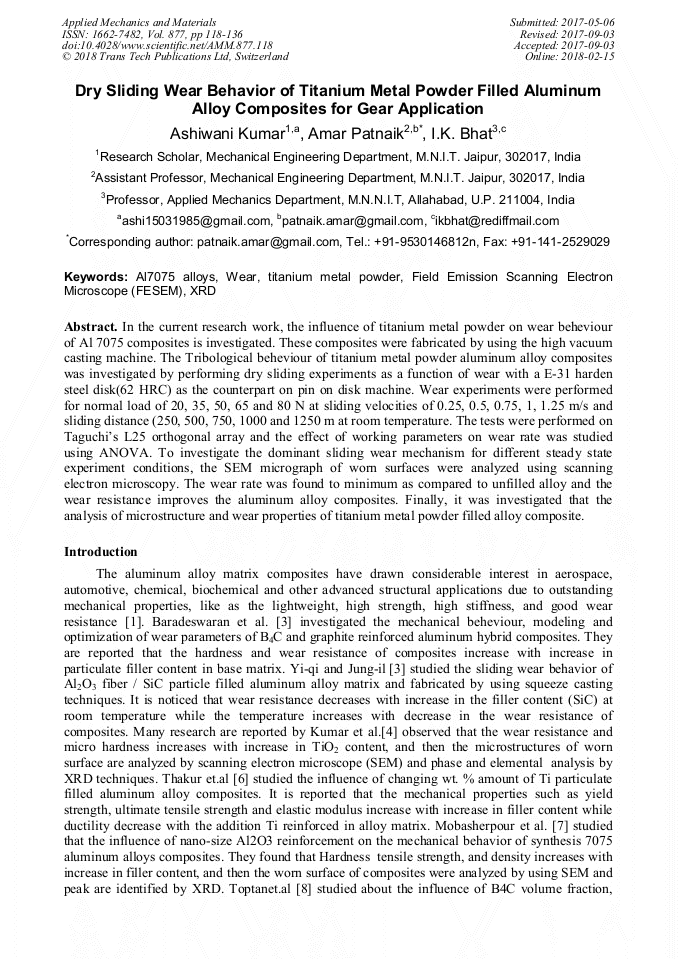

Dry Sliding Wear Behavior of Titanium Metal Powder Filled Aluminum Alloy Composites for Gear Application

Abstract:

In the current research work, the influence of titanium metal powder on wear beheviour of Al 7075 composites is investigated. These composites were fabricated by using the high vacuum casting machine. The Tribological beheviour of titanium metal powder aluminum alloy composites was investigated by performing dry sliding experiments as a function of wear with a E-31 harden steel disk( 62 HRC) as the counterpart on pin on disk machine . Wear experiments were performed for normal load of 20, 35, 50 , 65 and 80 N at sliding velocities of 0.25, 0.5, 0.75, 1, 1.25 m/s and sliding distance (250 ,500, 750, 1000 and 1250 m at room temperature. The tests were performed on Taguchi’s L25 orthogonal array and the effect of working parameters on wear rate was studied using ANOVA. To investigate the dominant sliding wear mechanism for different steady state experiment conditions, the SEM micrograph of worn surfaces were analyzed using scanning electron microscopy. The wear rate was found to minimum as compared to unfilled alloy and the wear resistance improves the aluminum alloy composites. Finally, it was investigated that the analysis of microstructure and wear properties of titanium metal powder filled alloy composite.

• Periodical: Applied Mechanics and Materials (Volume 877)
• Pages: 118-136
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.877.118
• Online since: February 2018
• Authors: ashiwani kumar, Amar Patnaik*, I.K. Bhat
• Keywords: Al7075 Alloys, Field Emission Scanning Electron Microscope (FESEM), Titanium Metal Powder, Wear, XRD

References

[1] D. Hongqiang, H. Yuanfei, W. Lu, W. Liqiang, M. Jianwei, D. Zhang. Configuration design and fabrication of laminated titanium matrix composites, Materials and Design. 99 (2016) 219–224.

DOI: 10.1016/j.matdes.2016.03.061

[2] A. Baradeswaran, S.C. Vettivel, A. Elaya Perumal, Experimental investigation on mechanical behaviour, modeling and optimization of wear parameters of B4C and graphite reinforced aluminium hybrid composites, Materials and Design. 63 (2014) 620–63.

DOI: 10.1016/j.matdes.2014.06.054

[3] Y. Q Wang, J. Song, Dry sliding wear behavior of Al2O3 fiber and SiC particle reinforced aluminium based MMCs fabricated by squeeze casting method, Tans. Nonferrous Met .Soc. China. 21 (2011) 1441-1448.

DOI: 10.1016/s1003-6326(11)60879-0

[4] C. Antony Vasantha kumar, J. Selwin Rajadurai, Influence of rutile (TiO2) content on wear and micro-hardness characteristics of aluminium-based hybrid composites synthesized by powder metallurgy, Trans. Nonferrous Met. Soc. China. 26 (2016) 63−73.

DOI: 10.1016/s1003-6326(16)64089-x

[5] S.K. Thakur, M. Gupta, Improving mechanical performance of Al by using Ti as reinforcement, Composites Part A. 38 (2007) 1010-1018.

DOI: 10.1016/j.compositesa.2006.06.014

[6] I. Mobasherpour, A.A. ToFigh, M. Ebrahimi, Effect of nano-size Al2O3 reinforcement on the mechanical behavior of synthesis 7075 aluminum alloy composites by mechanical alloying, Materials Chemistry and Physics. 138 (2013) 535-541.

DOI: 10.1016/j.matchemphys.2012.12.015

[7] F. Toptan, I. Kerti, L.A. Rocha, Reciprocal dry sliding wear behaviour of B4Cp reinforced aluminium alloy matrix composites Wear. 290 (2012) 291 :74–85.

DOI: 10.1016/j.wear.2012.05.007

[8] B.D Agarwal, L.J. Broutman, Analysis and performance of fiber Composites, 2nd edition Jhonwieley and Sons. New York. (1990).

[9] S Gangwar, A. Patnaik, I. K. Bhat.. Tribological and Microstructure Behavior of Quicklime (CaO) Filled Silicon Bronze Alloy for Bearing Material, Silicon. (2016) DOI 10.1007/s12633-015-9352-1.

DOI: 10.1007/s12633-015-9352-1

[10] A. Baradeswaran, A. Elaya Perumal, Influence of B4C on the tribological and mechanical properties of Al 7075–B4C Composites, Composites. Part B 54 (2013) 146–152.

DOI: 10.1016/j.compositesb.2013.05.012

[11] Y. Liu, Z. Han, H. Cong, Effects of sliding velocity and normal load on the tribological behavior of a nanocrystalline Al based composite Wear. 268 (2010) 976–983.

DOI: 10.1016/j.wear.2009.12.027

[12] K. Soorya Prakash, P. balasundar, S. nagaraja, P.M. gopal, V. kaviman, Mechanical and wear behaviour of mg–sic–gr hybrid composites, journal of magnesium and alloys. 4 (2016) 197–206.

DOI: 10.1016/j.jma.2016.08.001

[13] A. Renza, I. Khadera, A. Kailera, Tribo chemical wear of cutting-tool ceramics in sliding Contact against a nickel-base alloy, Journal of the European Ceramic Society. 36 (2016) 705–717.

DOI: 10.1016/j.jeurceramsoc.2015.10.032

[14] P. Sharma, D. Khandujaa, S. Sharma, dry sliding wear investigation of Al6082/Gr metal matrix composites by response surface methodology, j materres technol 5(1) (2016) 29–36.

DOI: 10.1016/j.jmrt.2015.05.001

[15] G. Gautam, N. Kumar, A. Mohan, R.K. Gautam, S. Mohan, Tribology and surface topography of tri-aluminide reinforced composites, Tribology International. 97 (2016) 49–58.

DOI: 10.1016/j.triboint.2016.01.014

[16] B. Ashok Kumar, N. Murugan, I. Dinaharan,. Dry sliding wear behavior of stir cast AA6061-T6/AlNp composite, Trans Nonferrous Met. Soc. China. 24 (2014) 2785−2795.

DOI: 10.1016/s1003-6326(14)63410-5

[17] C. Antony Vasantha Kumar, J. Selwin Rajadurai, Influence of rutile (TiO2) content on wear and microhardness characteristics of aluminium-based hybrid composites synthesized by powder metallurgy Trans, Nonferrous Met. Soc. China. 26 (2016) 63−73.

DOI: 10.1016/s1003-6326(16)64089-x

[18] I. Dinaharan, N. Murugan, Dry sliding wear behavior of AA6061/ZrB2 in-situ composite, Trans. Nonferrous Met. Soc. China. 22 (2012) 810-818.

DOI: 10.1016/s1003-6326(11)61249-1

[19] B. Selvam, P. Marimuthu, R. Narayanasamy, V. Anandakrishnan, K.S. Tun, M. Gupta, M. Kamaraj, Dry sliding wear behaviour of zinc oxide reinforced magnesium matrix nano-composites, Materials and Design. 58 (2014) 475–481.

DOI: 10.1016/j.matdes.2014.02.006

[20] H. Chi, L. Jiang, G. Chen, Dry sliding friction and wear behavior of (TiB2+h-BN)/2024Al Composites, Materials and Design. 87 (2015) 960–968.

DOI: 10.1016/j.matdes.2015.08.088

[21] N. Mathan Kumar, S. Senthil Kumaran, L.A. Kumaraswamidhas, Wear behaviour of Al 2618 alloy reinforced with Si3N4, AlN and ZrB2 in situ composites at elevated temperatures, Alexandria Engineering Journal. 55 (2016) 19–36.

DOI: 10.1016/j.aej.2016.01.017

[22] S. Baskaran, V. Anandakrishnan, Muthukannan Duraiselvam,. Investigations on dry sliding wear behavior of in situ casted AA7075–TiC metal matrix composites by using Taguchi technique, Materials and Design. 60 (2014) 184–192.

DOI: 10.1016/j.matdes.2014.03.074

[23] A.B. Kumar, N. Murugan, I. Dinaharan, Dry sliding wear behavior of stir cast AA6061-T6/AlNp composite, Trans. Nonferrous Met. Soc. China. (2014) 2785−2795.

DOI: 10.1016/s1003-6326(14)63410-5

[24] A. Baradeswaran, S.C. Vettivel, A. Elaya Perumal, Experimental investigation on mechanical behaviour, modeling and optimization of wear parameters of B4C and graphite reinforced aluminium hybrid composites, Materials and Design. 63 (2014).

DOI: 10.1016/j.matdes.2014.06.054

[25] C.S. Ramesh, R. Keshavamurthy, B.H. Channabasappa, Friction and wear behavior of Ni–P coated Si3N4 reinforced Al6061 composites, Tribology International. 43(2010) 623–634.

DOI: 10.1016/j.triboint.2009.09.011

[26] K. Soorya Prakash, A. Kanagaraj, P.M. Gopal, Dry sliding wear characterization of Al 6061/rock dust composite, Trans. Nonferrous Met. Soc. China. 25 (2015) 3893−3903.

DOI: 10.1016/s1003-6326(15)64036-5

[27] A. Renza, I. Khadera, A. Kailera, Tribo chemical wear of cutting-tool ceramics in sliding Contact against a nickel-base alloy, Journal of the European Ceramic Society. 36 (2016) 705–717.

DOI: 10.1016/j.jeurceramsoc.2015.10.032

[28] P. JIN, G. CHEN, L. HAN, Dry sliding friction and wear behaviors of Mg2B2O5 whisker reinforced 6061Al matrix Composites, Trans Nonferrous Met Soc China. 24 (2014) 49–57.

DOI: 10.1016/s1003-6326(14)63027-2

[29] S. Natarajan, R. Narayanasamy, S.P. Kumaresh Babu, G. Dinesh, B. Anil Kumar, K. Sivaprasad, Sliding wear behaviour of Al 6063/TiB2 in situ composites at elevated temperatures, A dvances in Tribology Volume. Article ID 837469, 8 pages.

DOI: 10.1016/j.matdes.2008.09.037

[30] A.K. Srivastava, Karabi Das, the abrasive wear resistance of TIC and (Ti,W)C-reinforced Fe–17Mn austenitic steel matrix composites, Tribology International. 43 (2010) 944–950.

DOI: 10.1016/j.triboint.2009.12.057

[31] T. Rajmohan, K. Palanikumar, S. Ranganathan, Evaluation of mechanical and wear properties of hybrid aluminium matrix composites, Trans. Nonferrous Met. Soc. China. 23 (2013) 2509−2517.

DOI: 10.1016/s1003-6326(13)62762-4
