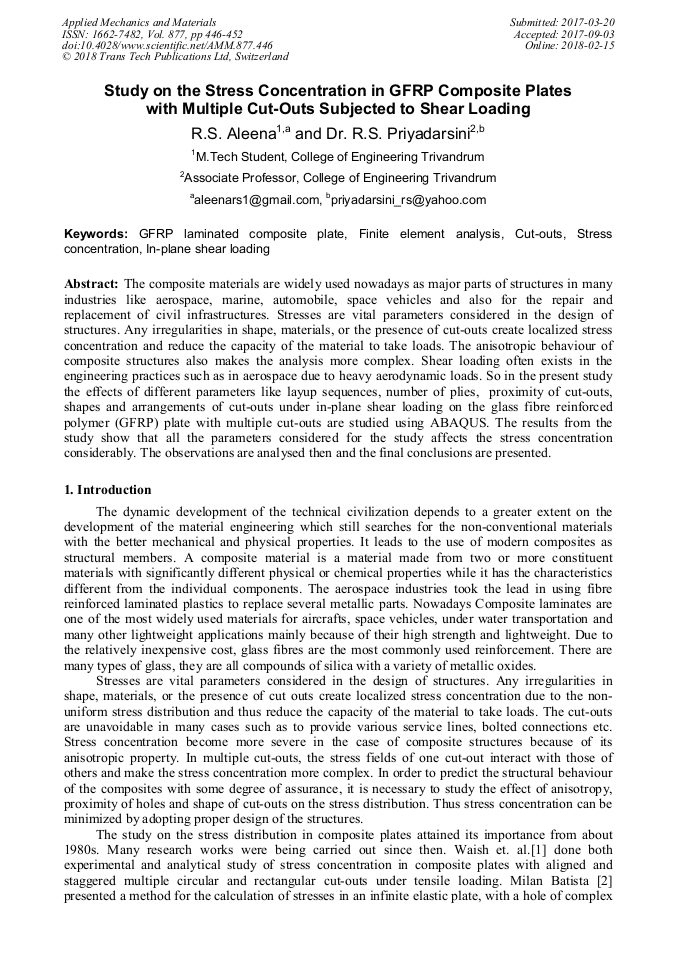

Study on the Stress Concentration in GFRP Composite Plates with Multiple Cut-Outs Subjected to Shear Loading

Abstract:

The composite materials are widely used nowadays as major parts of structures in many industries like aerospace, marine, automobile, space vehicles and also for the repair and replacement of civil infrastructures. Stresses are vital parameters considered in the design of structures. Any irregularities in shape, materials, or the presence of cut-outs create localized stress concentration and reduce the capacity of the material to take loads. The anisotropic behaviour of composite structures also makes the analysis more complex. Shear loading often exists in the engineering practices such as in aerospace due to heavy aerodynamic loads. So in the present study the effects of different parameters like layup sequences, number of plies, proximity of cut-outs, shapes and arrangements of cut-outs under in-plane shear loading on the glass fibre reinforced polymer (GFRP) plate with multiple cut-outs are studied using ABAQUS. The results from the study show that all the parameters considered for the study affects the stress concentration considerably. The observations are analysed then and the final conclusions are presented.

• Periodical: Applied Mechanics and Materials (Volume 877)
• Pages: 446-452
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.877.446
• Online since: February 2018
• Authors: R.S. Aleena*, R.S. Priyadarsini
• Keywords: Cut-Outs, Finite Element Analysis, GFRP Laminated Composite Plate, In-Plane Shear Loading, Stress Concentration

References

[1] T. J. Waish, O. O. Ochoa, Composites with multiple cutouts, Composite Structures. 24 (1993) 117-124.

DOI: 10.1016/0263-8223(93)90033-m

[2] Milan Batista, On the stress concentration around a hole in an infinite plate subject to a uniform load at infinity, International Journal of Mechanical Sciences. 53 (2011) 254–261.

DOI: 10.1016/j.ijmecsci.2011.01.006

[3] D.K. Nageswara Rao, M. Ramesh Babu, K. Raja Narender Reddy, D. Sunil, Stress around square and rectangular cutouts in symmetric laminates, Composite Structures. 92 (2010) 2845–2859.

DOI: 10.1016/j.compstruct.2010.04.010

[4] M. Yasar Kaltakcl, Stress concentrations and failure criteria in anisotropic plates with circular holes subjected to tension or compression, Computers & Structures. 61(1996) 67-78.

DOI: 10.1016/0045-7949(96)00009-0

[5] N.K. Jain, N.D. Mittal, Finite element analysis for stress concentration and deflection in isotropic, orthotropic and laminated composite plates with central circular hole under transverse static loading, Materials Science and Engineering. 98 (2008).

DOI: 10.1016/j.msea.2008.04.078

[6] Mihir M Chauhana, Dharmendra S Sharma, Stresses in finite anisotropic plate weakened by rectangular hole, International journal of Mechanical Sciences. 101(2015) 272-279.

DOI: 10.1016/j.ijmecsci.2015.08.007

[7] S.J. Guo, Stress concentration and buckling behaviour of shear loaded composite panels with reinforced cutouts, Composite Structures 80 (2007) 1–9.

DOI: 10.1016/j.compstruct.2006.02.034

[8] Maneesh C R, Priyadarsini R S, Stress concentration effects on gfrp composite plates with circular cut-outs, Fifth International Conference on Recent Trends in Transportation, Environmental and Civil Engineering – TECE (2016).
