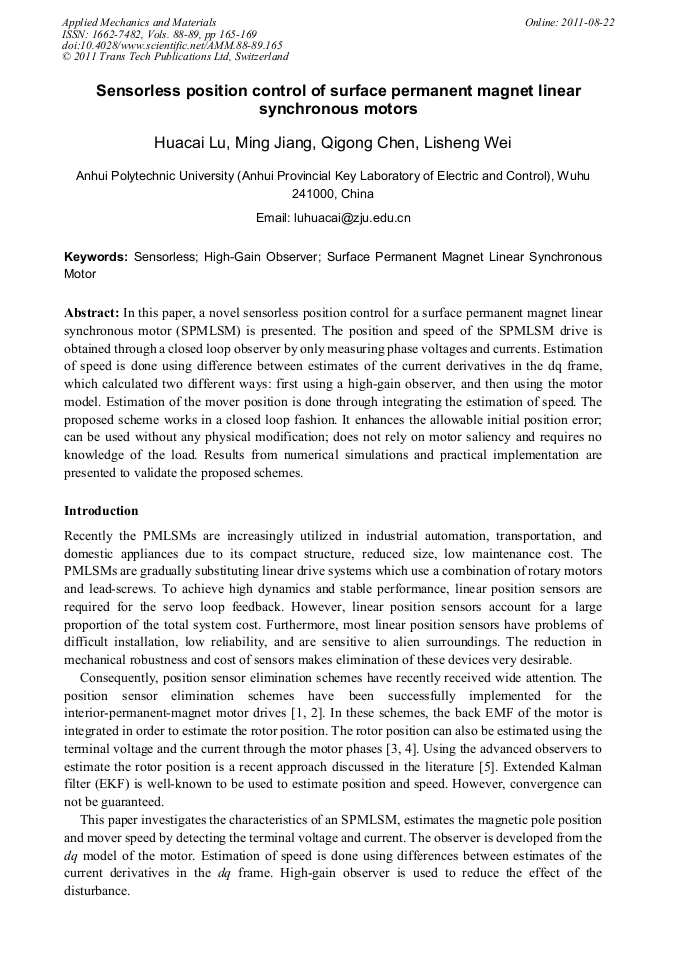

Sensorless Position Control of Surface Permanent Magnet Linear Synchronous Motors

Abstract:

In this paper, a novel sensorless position control for a surface permanent magnet linear synchronous motor (SPMLSM) is presented. The position and speed of the SPMLSM drive is obtained through a closed loop observer by only measuring phase voltages and currents. Estimation of speed is done using difference between estimates of the current derivatives in the dq frame, which calculated two different ways: first using a high-gain observer, and then using the motor model. Estimation of the mover position is done through integrating the estimation of speed. The proposed scheme works in a closed loop fashion. It enhances the allowable initial position error; can be used without any physical modification; does not rely on motor saliency and requires no knowledge of the load. Results from numerical simulations and practical implementation are presented to validate the proposed schemes.

• Periodical: Applied Mechanics and Materials (Volumes 88-89)
• Pages: 165-169
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.88-89.165
• Online since: August 2011
• Authors: Hua Cai Lu, Ming Jiang, Qi Gong Chen, Li Sheng Wei
• Keywords: High-Gain Observer, Sensorless, Surface Permanent Magnet Linear Synchronous Motor

References

[1] J Peroutka Z, Smidl V, Vosmik D. Challenges and limits of extended Kalman Filter based sensorless control of permanent magnet synchronous machine drives [C]. European Conference on Power Electronics and Applications, 2009: 1-11.

DOI: 10.1109/iecon.2013.6700511

[2] Lu Wenqi, Hu Yuwen, Huang Wenxin. Sensorless control of permanent magnet synchronous machine based on a novel sliding mode observer [C]. IEEE Conference of Vehicle Power and Propulsion, 2008: 1-4.

DOI: 10.1109/vppc.2008.4677575

[3] Der-Fa Chen, Tian-Hua Liu. Design and implementation of a sensorless PMSM drive including standstill starting [C]. IEEE Conference of Industrial Electronics Society, 2004, 1: 987-992.

DOI: 10.1109/iecon.2004.1433450

[4] Ilioudis V C, Margaris N I. Speed and position estimation technique for PMSM based on modified machine model [C]. International Conference on Optimization of Electrical and Electronic Equipment, 2010: 407-415.

DOI: 10.1109/optim.2010.5510497

[5] Qiu, A. Bin W. Kojori, H. Sensorless control of permanent magnet synchronous motor using extended Kalman filter. Canadian Conference on Electrical and Computer Engineering, 2004, 3: 1557-1562.

DOI: 10.1109/ccece.2004.1349704
