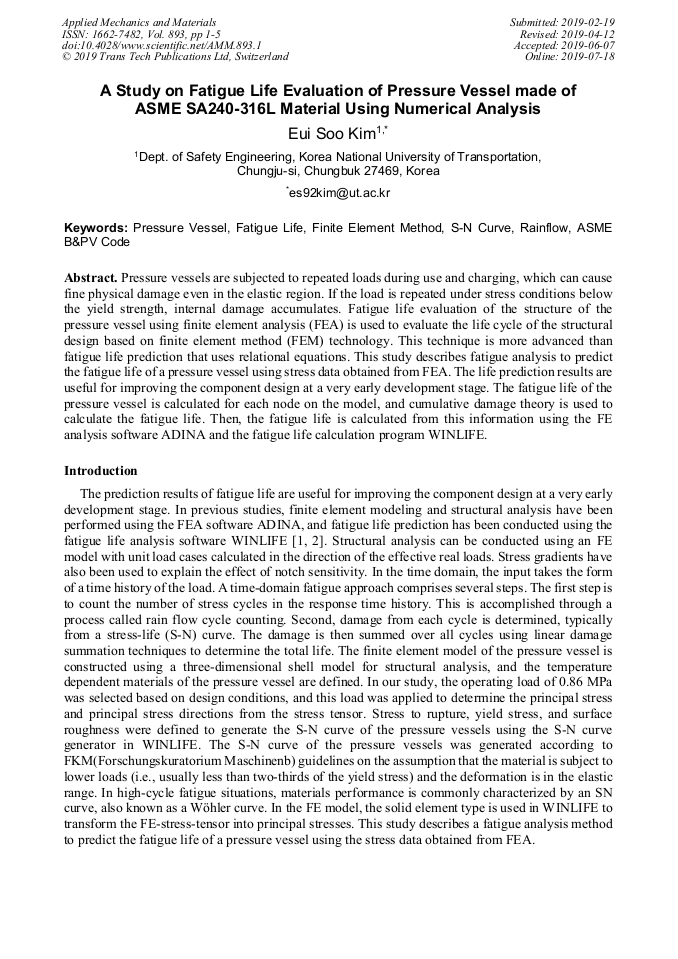

A Study on Fatigue Life Evaluation of Pressure Vessel Made of ASME SA240-316L Material Using Numerical Analysis

Abstract:

Pressure vessels are subjected to repeated loads during use and charging, which can causefine physical damage even in the elastic region. If the load is repeated under stress conditions belowthe yield strength, internal damage accumulates. Fatigue life evaluation of the structure of thepressure vessel using finite element analysis (FEA) is used to evaluate the life cycle of the structuraldesign based on finite element method (FEM) technology. This technique is more advanced thanfatigue life prediction that uses relational equations. This study describes fatigue analysis to predictthe fatigue life of a pressure vessel using stress data obtained from FEA. The life prediction results areuseful for improving the component design at a very early development stage. The fatigue life of thepressure vessel is calculated for each node on the model, and cumulative damage theory is used tocalculate the fatigue life. Then, the fatigue life is calculated from this information using the FEanalysis software ADINA and the fatigue life calculation program WINLIFE.

• Periodical: Applied Mechanics and Materials (Volume 893)
• Pages: 1-5
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.893.1
• Online since: July 2019
• Authors: Eui Soo Kim*
• Keywords: ASME B&PV Code, Fatigue Life, Finite Element Method, Pressure Vessel, Rainflow, S-N Curve

References

[1] H. Mayer, H. L. Stark, S. Ambrose, Review of fatigue design procedures for pressure vessels, International Journal of Dryer Vessels and Piping 77 (2000) 775-781.

DOI: 10.1016/s0308-0161(00)00069-7

[2] N. Nagata, S. Sato, Y. Katada, Low-cycle Fatigue Behavior of Dryer Vessel Steels in High-Temperature Pressurized Water, ISIJ International 31 (1991) 106-114.

DOI: 10.2355/isijinternational.31.106

[3] ASME B&PV-VIII-1. Boiler and pressure vessel code, section VIII. Rules for construction of pressure vessels : Division 1. New York, The American Society for Mechanical Engineers, (2011).

DOI: 10.1115/1.859872.ch21

[4] ASME B&PV-VIII-2. Boiler and pressure vessel code, section VIII. Rules for construction of pressure vessels : Division 2, New York, The American Society for Mechanical Engineers, (2011).

DOI: 10.1115/1.859872.ch21

[5] O. K. Chopra, W. J. Shack, Effects of LWR Coolant Environments on Fatigue Design Curves of Carbon and Low-Alloy Steels, NUREG/CR-6583, ANL-97/18, (1998).

DOI: 10.2172/573404

[6] WINLIFE STC-Traffic Engineering, Documentation to WINLIFE, Version 3.6x, (2013).
