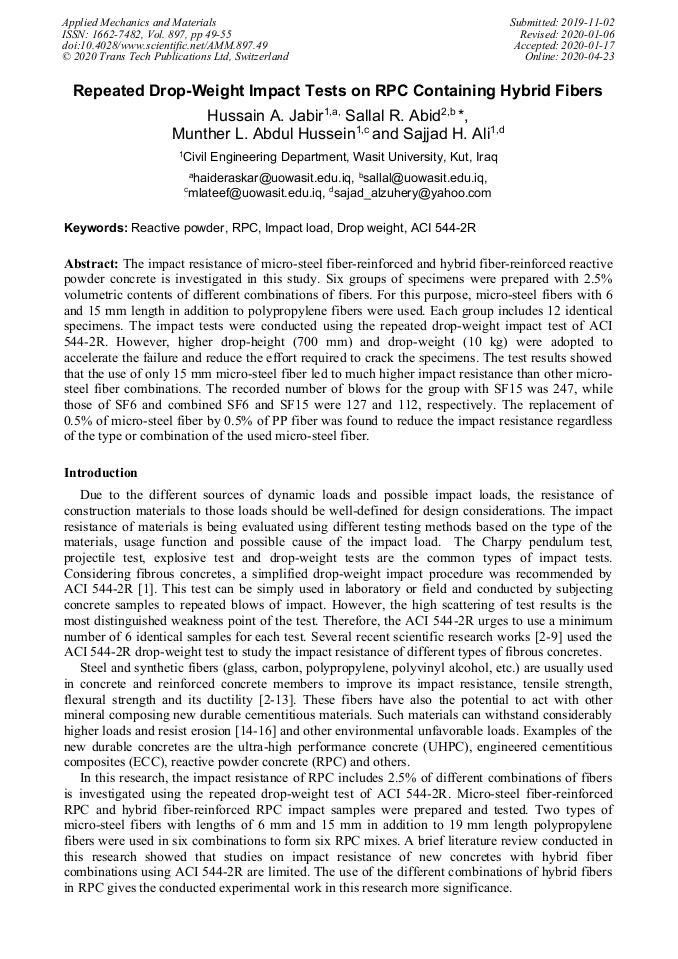

Repeated Drop-Weight Impact Tests on RPC Containing Hybrid Fibers

Abstract:

The impact resistance of micro-steel fiber-reinforced and hybrid fiber-reinforced reactive powder concrete is investigated in this study. Six groups of specimens were prepared with 2.5% volumetric contents of different combinations of fibers. For this purpose, micro-steel fibers with 6 and 15 mm length in addition to polypropylene fibers were used. Each group includes 12 identical specimens. The impact tests were conducted using the repeated drop-weight impact test of ACI 544-2R. However, higher drop-height (700 mm) and drop-weight (10 kg) were adopted to accelerate the failure and reduce the effort required to crack the specimens. The test results showed that the use of only 15 mm micro-steel fiber led to much higher impact resistance than other micro-steel fiber combinations. The recorded number of blows for the group with SF15 was 247, while those of SF6 and combined SF6 and SF15 were 127 and 112, respectively. The replacement of 0.5% of micro-steel fiber by 0.5% of PP fiber was found to reduce the impact resistance regardless of the type or combination of the used micro-steel fiber.

• Periodical: Applied Mechanics and Materials (Volume 897)
• Pages: 49-55
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.897.49
• Online since: April 2020
• Authors: Hussain A. Jabir, Sallal R. Abid*, Munther L. Abdul Hussein, Sajjad H. Ali
• Keywords: ACI 544-2R, Drop Weight, Impact Load, Reactive Powder, RPC

References

[1] ACI 544-2R. Measurement of properties of fiber reinforced concrete. American Concrete Institute ACI, USA. (1999).

[2] M. Nili, V. Afroughsabet, The effects of silica fume and polypropylene fibers on the impact resistance and mechanical properties of concrete, Constr. Build. Mater. 24 (2010) 927-933.

DOI: 10.1016/j.conbuildmat.2009.11.025

[3] M. Nili, V. Afroughsabet, Combined effect of silica fume and steel fibers on the impact resistance and mechanical properties of concrete, Int. J. Impact Eng. 37 (2010) 879-886.

DOI: 10.1016/j.ijimpeng.2010.03.004

[4] S. T. Yildirim, C. E. Ekinci, F. Findik, Properties of hybrid fiber reinforced concrete under repeated impact loads, Russian J. Nondestr. Test. 46 (2010) 82-92.

DOI: 10.1134/s1061830910070090

[5] A. A. Nia, M. Hedayatian, M. Nili, V. Afroughsabet, An experimental and numerical study on how steel and polypropylene fibers affect the impact resistance in fiber-reinforced concrete, Int. J. Impact Eng. 46 (2012) 62-73.

DOI: 10.1016/j.ijimpeng.2012.01.009

[6] M. Mastali, A. Dalvand, A. Sattarifard, The impact resistance and mechanical properties of reinforced self-compacting concrete with recycled glass fiber reinforced polymers, J. Clean Product. 124 (2016) 312-324.

DOI: 10.1016/j.jclepro.2016.02.148

[7] M. K. Ismail, A. A. Hassan, Impact resistance and mechanical properties of self-consolidating rubberized concrete reinforced with steel fibers, ASCE J. Mater. Civil Eng. 29 (2017)1-14.

DOI: 10.1061/(asce)mt.1943-5533.0001731

[8] Y. Ding, D. Li, Y. Zhang, C. Azevedo, Experimental investigation on the composite effect of steel rebars and macro fibers on the impact behavior of high performance self-compacting concrete, Constr. Build. Mater. 136 (2017) 495-505.

DOI: 10.1016/j.conbuildmat.2017.01.073

[9] M. K. Ismail, A. A. A. Hassan, M. Lachemi, Performance of self-consolidating engineered cementitious composite under drop-weight impact loading, ASCE J. Mater. Civil Eng. 31 (2019) 1-11.

DOI: 10.1061/(asce)mt.1943-5533.0002619

[10] S. R. Abid, M. S. Shamkhi, N. S. Mahdi, Y. H. Daek, Mechanical Properties of PP-Based Engineered Cementitious Composites, Int. Conf. Adv. Sustainable Eng. Appl. (ICASEA), Wasit University, Kut, Iraq, (2018), 142-146.

DOI: 10.1109/icasea.2018.8370972

[11] A. Abbass, S. Abid, M. Özakça, Experimental investigation on the effect of steel fibers on the flexural behavior and ductility of high-strength concrete hollow beams, Adv. Civil Eng. 2019 (2019) 1-13.

DOI: 10.1155/2019/8390345

[12] A. A. Abbass, S. R. Abid, F. H. Arna'ot, R. A. Al-Ameri, M. Özakça, Flexural response of hollow high strength concrete beams considering different size reductions, Struct. 23 (2020) 69-86.

DOI: 10.1016/j.istruc.2019.10.001

[13] S. R. Abid, K. Al-Lami, Critical review of strength and durability of concrete beams externally bonded with FRP, Cogent Eng. 5 (2018) 1-27.

DOI: 10.1080/23311916.2018.1525015

[14] S. R. Abid, A. Hilo, Y. H. Daek, Experimental tests on the underwater abrasion of engineered cementitious composites, Constr. Build. Mater. 171 (2018) 779-792.

DOI: 10.1016/j.conbuildmat.2018.03.213

[15] S. R. Abid, M. S. Shamkhi, N. S. Mahdi, Y. H. Daek, Hydro-abrasive resistance of engineered cementitious composites with PP and PVA fibers, Constr. Build. Mater. 187 (2018) 168-177.

DOI: 10.1016/j.conbuildmat.2018.07.194

[16] S. R. Abid, A. Hilo, N. S. Ayoob, Y. H. Daek, Underwater abrasion of steel fiber-reinforced self-compacting concrete, Case Stud. Constr. Mater. 11 (2019) 1-17.

DOI: 10.1016/j.cscm.2019.e00299
