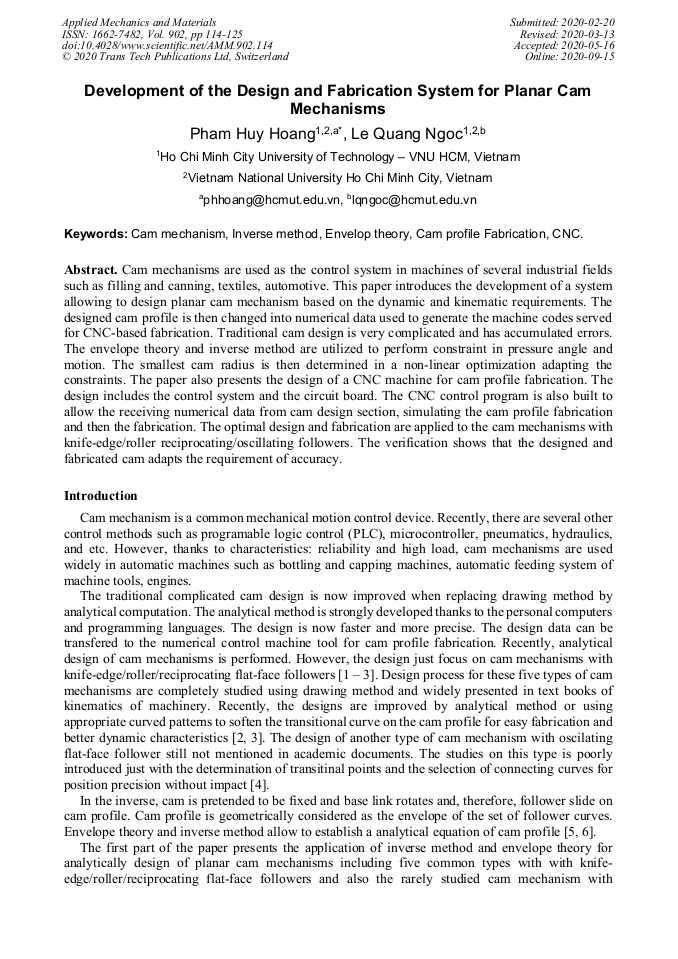

Development of the Design and Fabrication System for Planar Cam Mechanisms

Abstract:

Cam mechanisms are used as the control system in several industrial fields such as filling and canning, textiles, automotive. This paper introduces the development of a software for designing planar cam mechanism adapting the dynamic and kinematic requirements. The designed cam profile is then changed into numerical data used to generate the machine codes served for CNC-based fabrication. Traditional cam design is very complicated and has accumulated errors. The envelope theory and inverse method are utilized to perform constraint in pressure angle and motion. The smallest cam radius is then determined in a non-linear optimization adapting the constraints. The paper also presents the design of a CNC machine for cam profile fabrication. The design includes the control system and the circuit board. The CNC control program is built to receive numerical data from cam design section, to simulate the cam profile fabrication and then to fabricate. The optimal design and fabrication are applied to the cam mechanisms with knife-edge/roller reciprocating/oscilating followers. The verification shows that the designed and fabricated cam adapts the requirement of accuracy.

• Periodical: Applied Mechanics and Materials (Volume 902)
• Pages: 114-125
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.902.114
• Online since: September 2020
• Authors: Pham Huy Hoang*, Le Quang Ngoc
• Keywords: Cam Mechanism, Cam Profile Fabrication, CNC, Envelop Theory, Inverse Method

References

[1] Vu-Thinh Nguyen, Do-Joong Kim, Flexible cam profile synthesis method using smoothing spline curves, Mechanism and Machine Theory, 42.7 (2007), 825–838.

DOI: 10.1016/j.mechmachtheory.2006.07.005

[2] Wen-Hsiang Hsieh, Kinematic synthesis of cam-controlled planetary gear trains, Mechanism and Machine Theory, 44.5 (2009), 873–895.

DOI: 10.1016/j.mechmachtheory.2008.07.001

[3] S Carra, R Garziera, M Pellegrini, Synthesis of cams with negative radius follower and evaluation of the pressure angle, Mechanism and Machine Theory, 39.10 (2004), 1017–1032.

DOI: 10.1016/j.mechmachtheory.2004.05.001

[4] Jorge Angeles, Carlos López-Cajún, Optimal synthesis of cam mechanisms with oscillating flat-face followers, Mechanism and Machine Theory, 23.1 (1988), 1–6.

DOI: 10.1016/0094-114x(88)90002-x

[5] T Dana-Picard, N Zehavi, Revival of a Classical Topic in Differential Geometry: Envelopes of Parameterized Families of Curves and Surfaces, Journal of Applications of Computer Algebra ACA, 1 (2015) 1 – 4.

[6] Borislav Lazarov, Teaching envelopes in secondary school, Journal of The Teaching of Mathematics, XIII.1 (2011), 45–55.

[7] Pham Huy Hoang, Le Khanh Dien and Nguyen Tuan Kiet, Establish the profile cam equation, Development of Science and Technology, V3.4 (2000), 51-56.
