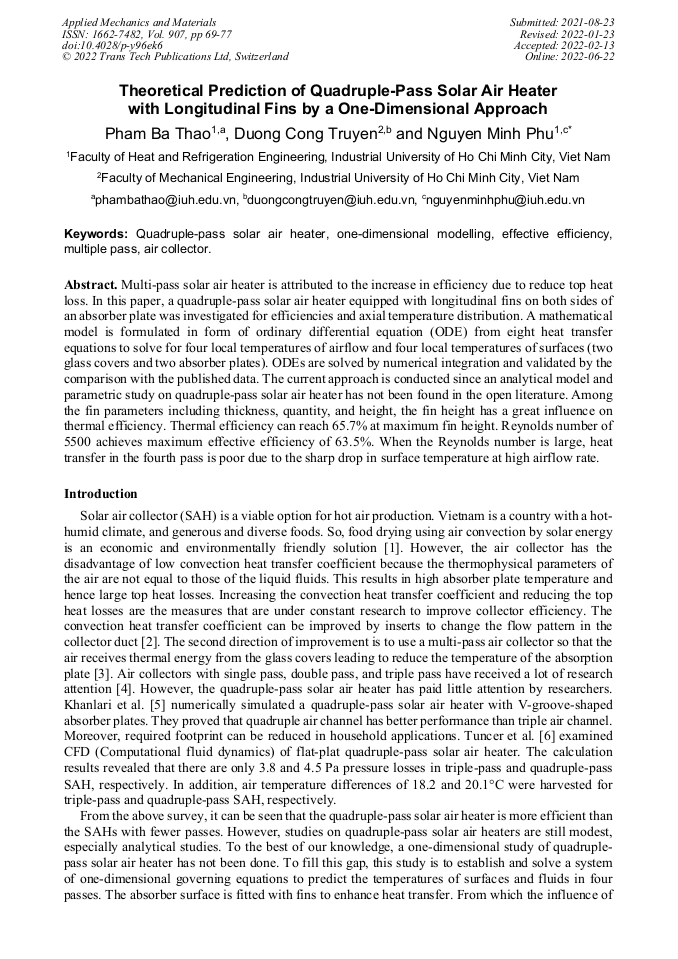

Theoretical Prediction of Quadruple-Pass Solar Air Heater with Longitudinal Fins by a One-Dimensional Approach

Abstract:

Multi-pass solar air heater is attributed to the increase in efficiency due to reduce top heat loss. In this paper, a quadruple-pass solar air heater equipped with longitudinal fins on both sides of an absorber plate was investigated for efficiencies and axial temperature distribution. A mathematical model is formulated in form of ordinary differential equation (ODE) from eight heat transfer equations to solve for four local temperatures of airflow and four local temperatures of surfaces (two glass covers and two absorber plates). ODEs are solved by numerical integration and validated by the comparison with the published data. The current approach is conducted since an analytical model and parametric study on quadruple-pass solar air heater has not been found in the open literature. Among the fin parameters including thickness, quantity, and height, the fin height has a great influence on thermal efficiency. Thermal efficiency can reach 65.7% at maximum fin height. Reynolds number of 5500 achieves maximum effective efficiency of 63.5%. When the Reynolds number is large, heat transfer in the fourth pass is poor due to the sharp drop in surface temperature at high airflow rate.

• Periodical: Applied Mechanics and Materials (Volume 907)
• Pages: 69-77
• DOI: https://doi.org/10.4028/p-y96ek6
• Online since: June 2022
• Authors: Pham Ba Thao, Duong Cong Truyen, Nguyen Minh Phu*
• Keywords: Air Collector, Effective Efficiency, Multiple Pass, One-Dimensional Modelling, Quadruple-Pass Solar Air Heater

References

[1] M. Kareem, K. Habib, S. Gilani, A Review of Solar Air Heater for Drying of Agricultural Products, Advanced Materials Research. (Trans Tech Publ, 2014), vol. 903, pp.239-244.

DOI: 10.4028/www.scientific.net/amr.903.239

[2] P. B. Thao, D. C. Truyen, N. M. Phu, CFD Analysis and Taguchi-Based Optimization of the Thermohydraulic Performance of a Solar Air Heater Duct Baffled on a Back Plate. Applied Sciences 11, 4645 (2021).

DOI: 10.3390/app11104645

[3] P. Velmurugan, R. Kalaivanan, Thermal performance studies on multi-pass flat-plate solar air heater with longitudinal fins: An analytical approach. Arabian Journal for Science and Engineering 40, 1141-1150 (2015).

DOI: 10.1007/s13369-015-1573-5

[4] S. Chamoli, R. Chauhan, N. Thakur, J. Saini, A review of the performance of double pass solar air heater. Renewable and Sustainable Energy Reviews 16, 481-492 (2012).

DOI: 10.1016/j.rser.2011.08.012

[5] A. Khanlari et al., Drying municipal sewage sludge with v-groove triple-pass and quadruple-pass solar air heaters along with testing of a solar absorber drying chamber. Science of The Total Environment 709, 136198 (2020).

DOI: 10.1016/j.scitotenv.2019.136198

[6] A. D. Tuncer, A. Sözen, A. Khanlari, A. Amini, C. Şirin, Thermal performance analysis of a quadruple-pass solar air collector assisted pilot-scale greenhouse dryer. Solar Energy 203, 304-316 (2020).

DOI: 10.1016/j.solener.2020.04.030

[7] B. Ramani, A. Gupta, R. Kumar, Performance of a double pass solar air collector. Solar energy 84, 1929-1937 (2010).

DOI: 10.1016/j.solener.2010.07.007

[8] L. Nguyen Thanh, P. Nguyen Minh, First and Second Law Evaluation of Multipass Flat-Plate Solar Air Collector and Optimization Using Preference Selection Index Method. Mathematical Problems in Engineering 2021, 5563882 (2021).

DOI: 10.1155/2021/5563882

[9] R. Chandra, N. Singh, M. Sodha, Thermal performance of a triple-pass solar air collector. Energy conversion and management 30, 41-48 (1990).

DOI: 10.1016/0196-8904(90)90054-3

[10] N. M. Phu, N. T. Luan, A review of energy and exergy analyses of a roughened solar air heater. Journal of Advanced Research in Fluid Mechanics and Thermal Sciences 77, 160-175 (2021).

DOI: 10.37934/arfmts.77.2.160175

[11] N. M. Phu, N. Van Hap, Performance Evaluation of a Solar Air Heater Roughened with Conic-Curve Profile Ribs Based on Efficiencies and Entropy Generation. Arabian Journal for Science and Engineering 45, 9023-9035 (2020).

DOI: 10.1007/s13369-020-04676-3

[12] N. M. Phu, T. T. Bao, H. N. Hung, N. T. Tu, N. Van Hap, Analytical predictions of exergoeconomic performance of a solar air heater with surface roughness of metal waste. Journal of Thermal Analysis and Calorimetry 144, 1727-1740 (2021).

DOI: 10.1007/s10973-020-09787-5

[13] P. N. Minh, A Compact EES Program to Predict Axial Temperature Distribution in Triple-fluid Heat Exchanger. Science & Technology Development Journal-Engineering and Technology 3, 452-460 (2020).

DOI: 10.32508/stdjet.v3i3.736

[14] N. M. Phu, G. S. Lee, Characteristics of pressure and force considering friction in a closed cylinder with a holed piston. Journal of Mechanical Science and Technology 28, 2409-2415 (2014).

DOI: 10.1007/s12206-014-0533-4
