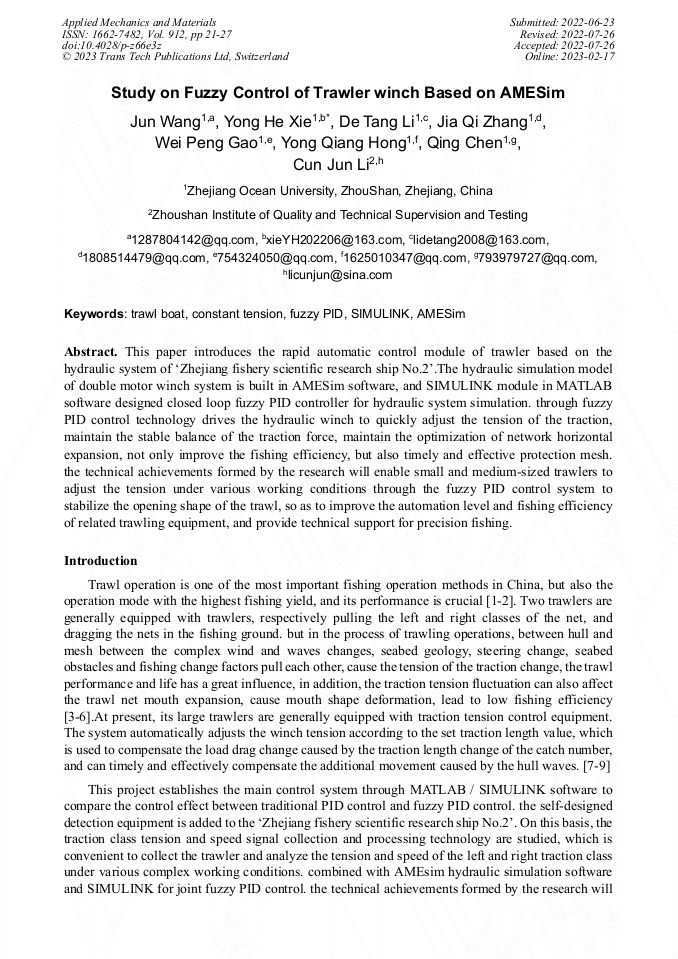

Study on Fuzzy Control of Trawler Winch Based on AMESim

Abstract:

This paper introduces the rapid automatic control module of trawler based on the hydraulic system of ‘Zhejiang fishery scientific research ship No.2’.The hydraulic simulation model of double motor winch system is built in AMESim software, and SIMULINK module in MATLAB software designed closed loop fuzzy PID controller for hydraulic system simulation. through fuzzy PID control technology drives the hydraulic winch to quickly adjust the tension of the traction, maintain the stable balance of the traction force, maintain the optimization of network horizontal expansion, not only improve the fishing efficiency, but also timely and effective protection mesh. the technical achievements formed by the research will enable small and medium-sized trawlers to adjust the tension under various working conditions through the fuzzy PID control system to stabilize the opening shape of the trawl, so as to improve the automation level and fishing efficiency of related trawling equipment, and provide technical support for precision fishing.

• Periodical: Applied Mechanics and Materials (Volume 912)
• Pages: 21-27
• DOI: https://doi.org/10.4028/p-z66e3z
• Online since: February 2023
• Authors: Jun Wang, Yong He Xie*, De Tang Li, Jia Qi Zhang, Wei Peng Gao, Yong Qiang Hong, Qing Chen, Cun Jun Li
• Keywords: AMESim, Constant Tension, Fuzzy PID, SIMULINK, Trawl Boat

References

[1] He Bo. Current status and development trend of world fishery equipment technology [J]. Chinese Aquatic Products, 2012, (5): 43-45.

[2] Chen Zhixin. Development direction and focus of fishing boat fishing equipment in China [J]. Fishery Modernization, 2005, (4): 3-4.

[3] Lee C W, Lee J H. Modeling of a midwinter trawl system with respect to the vertical moment [J]. Fisheries Science, 2000, 66(5): 851-857.

DOI: 10.1046/j.1444-2906.2000.00138.x

[4] Sun Xiaofeng, Yin Yong, Jin Yicheng, et al. The modeling of single-boat, mid-water trawl systems for fishing simulation [J]. Fisheries Science. 2011, 109(1): 7-15.

DOI: 10.1016/j.fishres.2010.12.027

[5] Lee C W, Zhang C I, Shin H O. Simplified trawl system modeling and design of a depth control system using fuzzy logic [J]. Fisheries Research, 2001, 53(1): 83-94.

DOI: 10.1016/s0165-7836(00)00264-2

[6] Weinberg K L, Somerton D A. Variation in trawl geometry due to unequal warp length [J]. Fishery Bulletin, 2006, 104(1): 21-34.

[7] Murphy H M, Bungay T, Stern E W P, et al. Measurement of warp loads of bongo plankton samplers [J]. Fisheries Research, 2015, 162: 43-46.

DOI: 10.1016/j.fishres.2014.09.012

[8] Johan R K, Vegar J. Control structure for trawl systems[C]. Lisbon, Portugal: 7th Conference on Maneuvering and Control of Marine Craft, IFAC, (2006).

[9] Lee C W, Lee J H, Kim I J. Application of a fuzzy controller to depth control of a mid water trawl net [J]. Fisheries Science, 2000, 66 (5): 858-862.

DOI: 10.1046/j.1444-2906.2000.00139.x

[10] Meng jing.Study on the traction tension balance control system of large trawler[D]. shanghai. Shanghai Ocean University. 2015:2.
