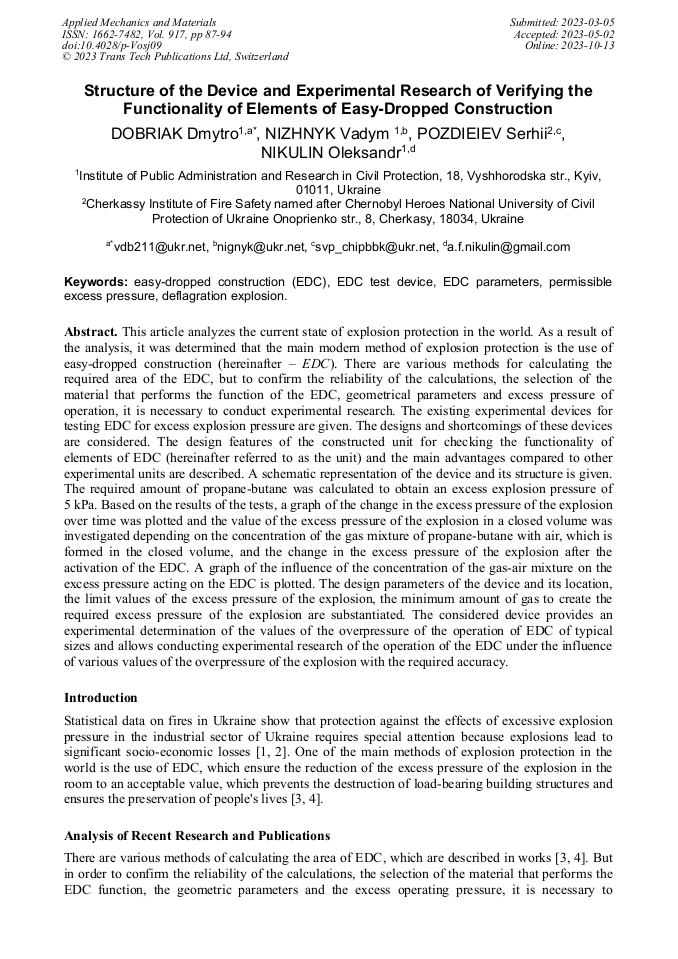

Structure of the Device and Experimental Research of Verifying the Functionality of Elements of Easy-Dropped Construction

Abstract:

This article analyzes the current state of explosion protection in the world. As a result of the analysis, it was determined that the main modern method of explosion protection is the use of easy-dropped construction (hereinafter - EDC). There are various methods for calculating the required area of the EDC, but to confirm the reliability of the calculations, the selection of the material that performs the function of the EDC, geometrical parameters and excess pressure of operation, it is necessary to conduct experimental research. The existing experimental devices for testing EDC for excess explosion pressure are given. The designs and drawbacks of these devices are considered. The design features of the constructed unit for checking the functionality of elements of easy-dropped construction (hereinafter referred to as the unit) and the main advantages compared to other experimental units are described. A scheme of the device and its structure is given. The required amount of propane-butane was calculated to obtain an excess explosion pressure of 5 kPa. Based on the results of the tests, a graph of the change in the excess pressure of the explosion over time is plotted and the value of the excess pressure of the explosion in a closed volume depending on the concentration of the gas mixture of propane-butane with air, which is formed in the closed volume, and the change in the excess pressure of the explosion after the activation of the EDC were investigated. A graph of the influence of the concentration of the gas-air mixture on the excess pressure acting on the EDC is plotted. The design parameters of the device and its location, the limit values of the excess pressure of the explosion, the minimum amount of gas to create the required excess pressure of the explosion are substantiated. The considered device provides an experimental determination of the values of the overpressure of the operation of EDC of typical sizes and allows conducting experimental research of the operation of the EDC under the influence of various values of the overpressure of the explosion with the required accuracy.

• Periodical: Applied Mechanics and Materials (Volume 917)
• Pages: 87-94
• DOI: https://doi.org/10.4028/p-Vosj09
• Online since: October 2023
• Authors: Dmytro Dobriak*, Vadym Nizhnyk, Serhii Pozdieiev, Oleksandr Nikulin
• Keywords: Deflagration Explosion, Easy-Dropped Construction (EDC), EDC Parameters, EDC Test Device, Permissible Excess Pressure

References

[1] Statystyka pozhezh ta yikhnaslidkiv v Ukrainiza 2013-2016 roky. Statystychny i zbirnyk analitychnykh materialiv, Zazahalnoiu redaktsiieiu V.S. Kropyvnytskoho, K.: UkrNDITsZ, (2018).

[2] O.F. Nikulin, N.V. Kravchenko, D.O. Dobriak, O.M. Krykun Statystychni dani shchodo pozhezhi z vybukhamy v ukraini i sviti ta analiz suchasnykh lehkoskydnykh konstruktsii. Zbirnyk naukovykh prats Cherkaskoho instytutu pozhezhnoi bezpeky imeni Heroiv Chornobylia Natsionalnoho universytetu tsyvilnoho zakhystu Ukrainy, Nadzvychaini sytuatsii: bezpeka ta zakhyst, 4 (2020) 53–63.

[3] Yu. Yu. Pidhoretskyi Rozrakhunkovyi metod prohnozuvannia povedinky hnuchkykh prozorykh elementiv bezinertsiinykh lehkoskydnykh konstruktsii za umov vybukhu. Dysertatsiia na zdobuttia naukovoho stupenia kandydata tekhnichnykh nauk za spetsialnistiu, 261 «Pozhezhna bezpeka, Cherkasy, (2021).

[4] Zvit pro naukovo-doslidnu robotu Obgruntuvannia metodyky rozrakhunku parametriv lehkoskydnykh konstruktsii dlia vybukhopozhezhonebezpechnykh prymishchen (zakliuchnyi) Kyiv: IDU ND TsZ, (2021) 544.

[5] NFPA 68. Standard on Explosion Protection by Deflagration Venting. 2013 Edition.

[6] Pat. 151044 Ukraina, MPK (2022.01) A62C 99/00. Ustanovka dlia perevirky funktsionalnosti elementiv lehkoskydnykh konstruktsii / V.V. Nizhnyk, S.V. Pozdieiev, O.F. Nikulin, D.O. Dobriak, Yu.L. Feshchuk, zaiavnyk ta patentovlasnyk Instytut derzhavnoho upravlinnia ta naukovykh doslidzhen z tsyvilnoho zakhystu, № u 2021 04602, zaiav.09.08.2021; opubl.01.06.2022, biul. № 22.

[7] DSTU 9176:2022 Metod yvyznachennia parametriv lehkoskydnykh konstruktsii dlia prymishchen ta budynkiv. Osnovni polozhennia [in Ukrainian].

[8] DSTU B V.1.1-36: 2016 Vyznachennia katehorii prymishchen, budynkiv ta zovnishnikh ustanovok za vybukhopozhezhnoiu ta pozhezhnoiu nebezpekoiu [in Ukrainian].

[9] V.V. Nizhnyk, O.F. Nikulin, S.V. Pozdieiev, D.O. Dobriak, A.I. Moroz, A.I. Kodryk Eksperymentalnyi metod otsiniuvannia pratsezdatnosti lehkoskydnykh konstruktsii, Zbirnyk naukovykh prats Natsionalnoi akademii nauk Ukrainy Instytut heotekhnichnoi mekhanikyim. M.S. Poliakova Vypusk 152. Dnipro, (2019) 127–137.
