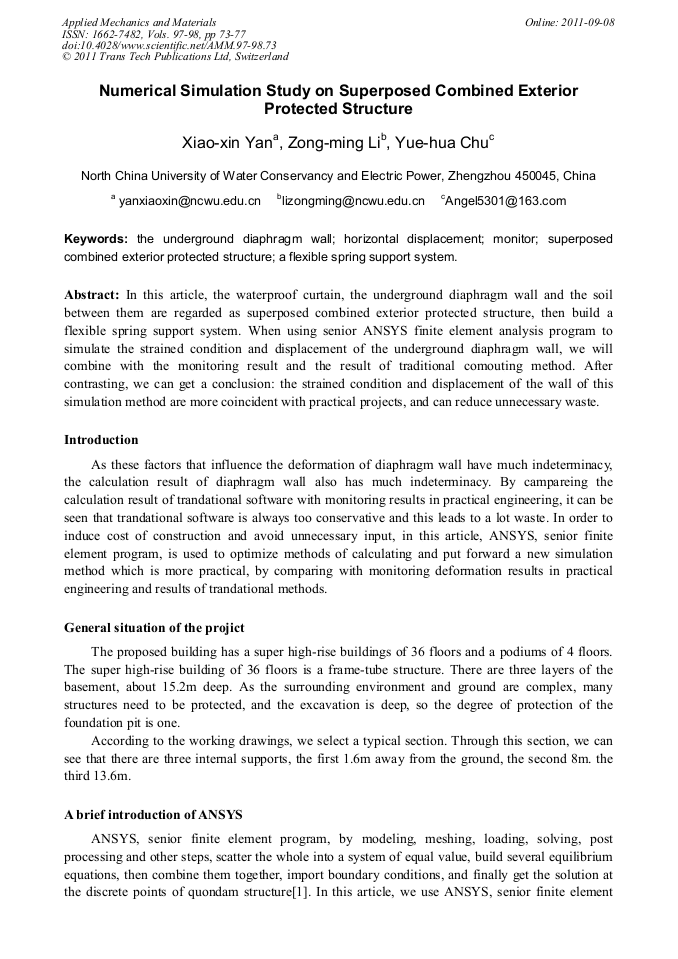

Numerical Simulation Study on Superposed Combined Exterior Protected Structure

Abstract:

In this article, the waterproof curtain, the underground diaphragm wall and the soil between them are regarded as superposed combined exterior protected structure, then build a flexible spring support system. When using senior ANSYS finite element analysis program to simulate the strained condition and displacement of the underground diaphragm wall, we will combine with the monitoring result and the result of traditional comouting method. After contrasting, we can get a conclusion: the strained condition and displacement of the wall of this simulation method are more coincident with practical projects, and can reduce unnecessary waste.

• Periodical: Applied Mechanics and Materials (Volumes 97-98)
• Pages: 73-77
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.97-98.73
• Online since: September 2011
• Authors: Xiao Xin Yan, Zong Ming Li, Yue Hua Chu
• Keywords: A Flexible Spring Support System, Horizontal Displacement, Monitor, Superposed Combined Exterior Protected Structure, Underground Diaphragm Wall

References

[1] Xu Fengnian,Chen Shenghong. Development and existing problems in reinforce technology of geotechnical prestress anchor rod Water Conservancy and Hydroelectric Power News 2001, 22(10).

[2] Lu Shen. Study of support technique for deep excavation in subway station of substep excavation and support. Zhejiang University (2005)
