Effect of Process Parameters on Warpage of Printer Board with Metal-Insert

Abstract:

In order to study the influence of process parameters on forming quality of printer board with metal-insert,shorten the development cycle,reduce the enterprise cost,the warp trend and reasons of injection process parameters,including packing time,hold pressure,mold temperature,melt temperature,on the warpage of the part were analyzed by means of software moldflow. The results show that warpage amounts decreases with packing time and hold pressure increasing,larger packing time and longer hold pressure is advantageous to the injection parts molding;And warpage amounts increases with mold temperature and melt temperature increasing,the lower mold temperature and melt temperature is advantageous to the injection parts molding;Among the four parameters,the melt temperature had the greatest influence,followed by the mold temperature and the hold pressure,packing time had the minimal influence on the warpage.

You might also be interested in these eBooks

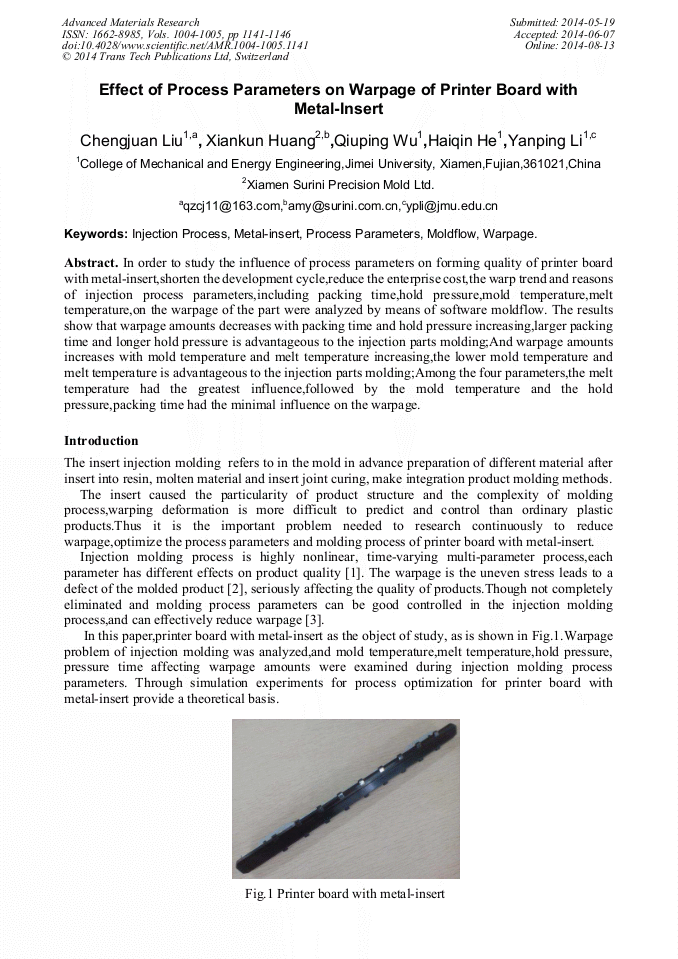

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 1004-1005)

Pages:

1141-1146

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1004-1005.1141

Citation:

Cite this paper

Online since:

August 2014

Authors:

Cheng Juan Liu, Xian Kun Huang, Qiu Ping Wu, Hai Qin He, Yan Ping Li*

Keywords:

Injection Process, Metal-Insert, Moldflow, Process Parameter, Warpage

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] X.X. Li. Warpage Analysis and Process Optimization of Thin-walled Plastic Parts Injection Molding (Jiangsu University Press, In Chinese with English abstract 2010).

Google Scholar

[2] D.X. Li: Flow Analysis from Entry to Master on Moldflow (Tsinghua University Press, China 2012).

Google Scholar

[3] Y.S. Zeng and X. P Xie: China Plastics. Vol. 23 (2009), p.69.

Google Scholar

[4] S.N. Ren. Research on Warpage of Injection Molded Part and its Optimization (NanjingUniversity of Aeronautics and Astronautics Press, In Chinese 2011).

Google Scholar

[5] B. Qiu and W. Li: Plastics Manufacture. Vol. 11 (2006), p.70.

Google Scholar

[6] J.L. Zeng: Engineering Plastics Application. Vol. 41(2013), p.57.

Google Scholar

[7] B.B. Dong and C.Y. Shen: Polymer Materials Science & Engineering . Vol. 21(2013), p.234.

Google Scholar

[8] L.P. Chen: Light Industry Machinery. Vol. 30 (2012), p.33.

Google Scholar
