The Effect of Cooling Rate and Overaging Time on the Mechanical Properties of a Ultra-Low Carbon Auto Steel

Fang Fang; Li Bo Pan

doi:10.4028/www.scientific.net/AMR.1004-1005.179

Paper Titles

Effects of Specimen Diameter on Microstructure and Microhardness of Hot Extruded AZ31B Magnesium Alloy
p.158

Influence of Pre-Deformation Temperature on Mechanics Performance of NiTiNb Shape Memory Alloy: First-Principles Calculation
p.163

Microstructure Characteristic of AZ31/7005 Joints by GTAW with Filler Wire of Mg-Al Alloy
p.168

Effect of RE on Microstructure and Properties of AM60 Magnesium Alloy
p.172

The Effect of Cooling Rate and Overaging Time on the Mechanical Properties of a Ultra-Low Carbon Auto Steel
p.179

High Silicon Addition in 780 MPa Cold-Rolled Dual Phase Steel for Carbon Reduction and Plastic Reinforce
p.183

Research of Microstructure and Mechanical Properties of the Cold Rolled Hot-Dip Galvanizing DP450 Steel with Low Carbon and High Chromium
p.188

Study of Corrosion Mechanism of Al₂O₃-MgO Refractories and its Effect on Cleanness of Molten Steel
p.193

Effect of Retained Austenite Stability on Mechanical Properties of Bainitic Rail Steel
p.198

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 1004-1005The Effect of Cooling Rate and Overaging Time on...

The Effect of Cooling Rate and Overaging Time on the Mechanical Properties of a Ultra-Low Carbon Auto Steel

Abstract:

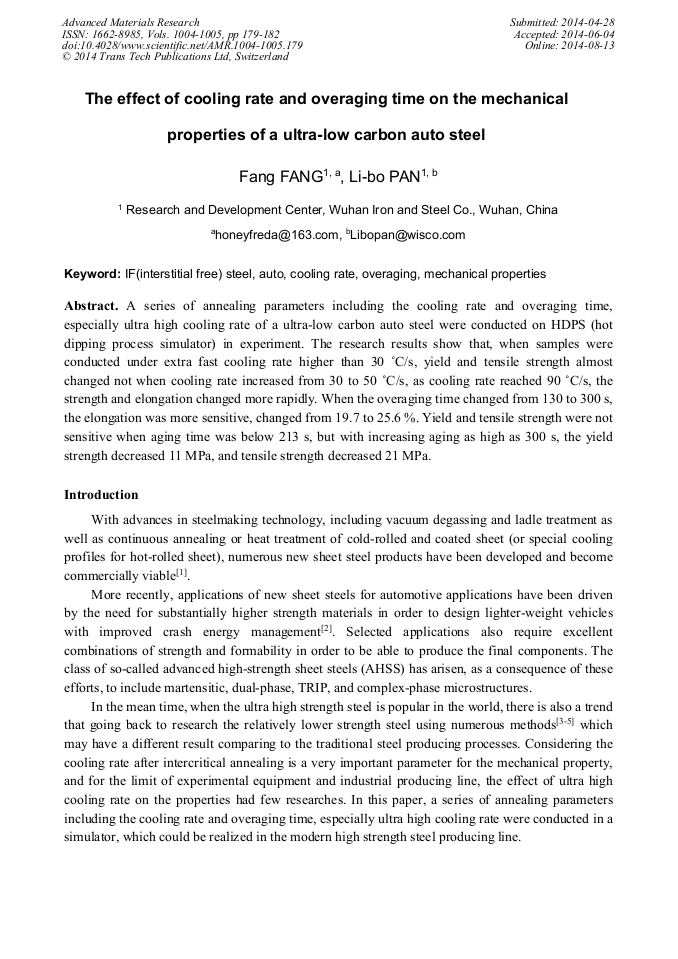

A series of annealing parameters including the cooling rate and overaging time, especially ultra high cooling rate of a ultra-low carbon auto steel were conducted on HDPS (hot dipping process simulator) in experiment. The research results show that, when samples were conducted under extra fast cooling rate higher than 30 °C/s, yield and tensile strength almost changed not when cooling rate increased from 30 to 50 °C/s, as cooling rate reached 90 °C/s, the strength and elongation changed more rapidly. When the overaging time changed from 130 to 300 s, the elongation was more sensitive, changed from 19.7 to 25.6 %. Yield and tensile strength were not sensitive when aging time was below 213 s, but with increasing aging as high as 300 s, the yield strength decreased 11 MPa, and tensile strength decreased 21 MPa.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 1004-1005)

Pages:

179-182

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1004-1005.179

Citation:

Cite this paper

Online since:

August 2014

Authors:

Fang Fang*, Li Bo Pan

Keywords:

Auto, Cooling Rate, IF (Interstitial Free) Steel, Mechanical Property, Overaging

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] D. K. Matlock, G. Krauss, J. G. Speer: Mater. Sci. Forum, Vols. 500-501 (2005), p.87.

Google Scholar

[2] H. Mohrbacher, C. Klinkenberg: Mater. Sci. Forum, Vol. 537-538 (2007), p.679.

Google Scholar

[3] D.A.F. Bayton, G.F. Fourlaris: Material Science and Technology, 2011, 27(1), p.85.

Google Scholar

[4] K. Inoue, N. shikawa, I. Ohnuma, et al.: ISIJ International, 2001, 41(2), p.175.

Google Scholar

[5] Z. W. Zheng, X. L. Yang, X. D. Cheng: Iron Steel Vanadium Titanium, 1998, 19(1), P 38.

Google Scholar

[6] F. Y. SUN, F. Fang: GALVATECH 2013, Beijing, China.

Google Scholar

[7] E. M. Bellhouse, J. R. McDermid: Metall. Mater. Trans. A, 2012, 43A, p.2426.

Google Scholar
