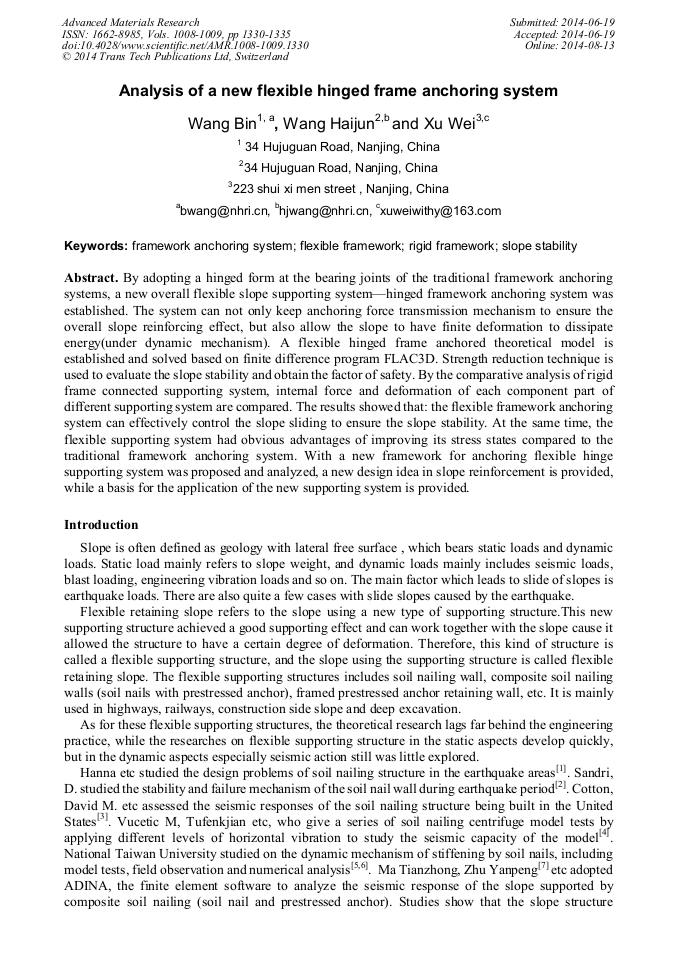

Analysis of a New Flexible Hinged Frame Anchoring System

Abstract:

By adopting a hinged form at the bearing joints of the traditional framework anchoring systems, a new overall flexible slope supporting system—hinged framework anchoring system was established. The system can not only keep anchoring force transmission mechanism to ensure the overall slope reinforcing effect, but also allow the slope to have finite deformation to dissipate energy (under dynamic mechanism). A flexible hinged frame anchored theoretical model is established and solved based on finite difference program FLAC3D. Strength reduction technique is used to evaluate the slope stability and obtain the factor of safety. By the comparative analysis of rigid frame connected supporting system, internal force and deformation of each component part of different supporting system are compared. The results showed that: the flexible framework anchoring system can effectively control the slope sliding to ensure the slope stability. At the same time, the flexible supporting system had obvious advantages of improving its stress states compared to the traditional framework anchoring system. With a new framework for anchoring flexible hinge supporting system was proposed and analyzed, a new design idea in slope reinforcement is provided, while a basis for the application of the new supporting system is provided.

• Periodical: Advanced Materials Research (Volumes 1008-1009)
• Pages: 1330-1335
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1008-1009.1330
• Online since: August 2014
• Authors: Bin Wang, Hai Jun Wang*, Wei Xu
• Keywords: Flexible Framework, Framework Anchoring System, Rigid Framework, Slope Stability

References

[1] HANNAS, JURAN I, LEVYO，et al. Recent developments in soil nailing-design and practice. Journal of Engineering and Applied Science, 1998. 81(5): 259-284.

[2] Sandri, D., Retaining walls stand up to the Northridge earthquake, Geotechnical Fabrics Report, IFAI, St. Paul, MN, USA, Vol. 12, No. 4, (1994)30-31.

[3] COTTON P E, DAVID M, LUARK P F, et al. Seismic response and extended life analys is of the deepest topdown soil nail wall in the U.S. Geotechnical Special Publication, 2004, 124(3): 723-740.

DOI: 10.1061/40713(2004)64

[4] VUCETIC M, TUFENKJIAN M R, DOROUDIAN M. Dynamiccentrifuge testing of soilnailed excavations. Teotechnical Testing Journal, 1993, 16(2): 172-187.

DOI: 10.1520/gtj10034j

[5] Chen Jian-ren. Research on Seismic of Soil Nailing Reinforcement Slope. Taiwan: National Taiwan University Civil Engineering Institute, (2001).

[6] Lai Rong-yi. Dynamic Response Simulation of Soil Nailing Model Slope. Taiwan: National Taiwan University Civil Engineering Institute, (2003).

[7] Ma Tian-zhong, Zhu Yan-peng . Dynamical Response Analysis of Composite Soil Nail Supported Slop under Action of Earthquake. Journal of Lanzhou University of Technology, 2010, 36(5): 108-112.

[8] Zhang Sen, Yan Zhi-xin, Zhang Xue-dong . Analysis of Static and Dynamic Response ofComposite Soil Nailed W all Supporting Structure. Subgrade Construction, 2011, 1: 45-47.

[9] Dong Jian-hua . Study on Dynamic Analysis and Seismic Design of Slope Protected by Soil Nailing RetainingWall under Earthquake. Lan zhou: Lanzhou University of Technology, (2008).

[10] Dong Jian-hua , Zhu Yan-peng . Dynamic Calculation Model and Seismic Response for the System of Soil Nailing and Surrounding Soil. Chinese Journal of Theoretical and Applied Mechanies, 2009, 41(2): 236-242.

[11] Zhu Yan-peng , Dong Jian-hua. Dynamic Calculation Model and Seismic Response for Slope Protected by Soil Nailing under Earthquake. Rock and Soil Mechanics。2010, 31(4): 1013-1022.

[12] Dong Jian-hua , Zhu Yan-peng . Stability Analysis of Slope Supported by Soil Nailing Retaining Wall Under Earthquake. China Journal of Highway and Transport, 2008, 21(6)：20-25.

[13] Yang Wen-feng, Zhang Mingju. Analysing Dynamic Stability of Soil Nailing Support Structure by FLAC 3D. J of China Three Gorges Univ. (Natural Sciences), 2009, 31(5): 46-48.
