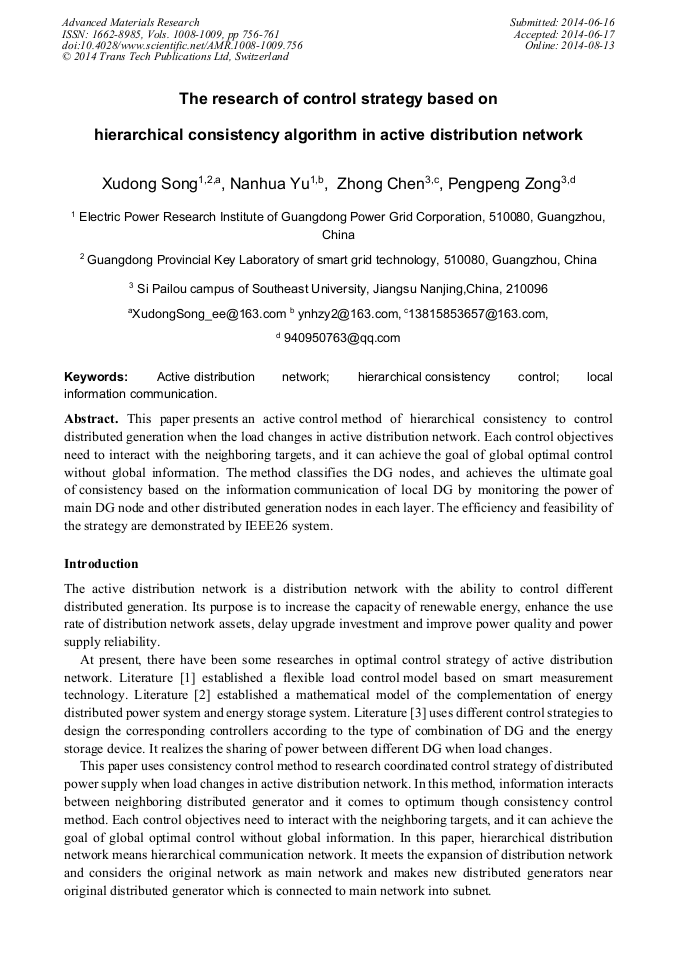

The Research of Control Strategy Based on Hierarchical Consistency Algorithm in Active Distribution Network

Abstract:

With the increase of renewable energy in distribution network, development of active distribution network adapt to the control and management of distributed generation. In order to adapt to the increase of distributed generation which makes the distribution network expansion planning more complex, This paper presents an active control method of hierarchical consistency to control distributed generation when the load changes. Each control objectives need to interact with the neighboring targets, and it can achieve the goal of global optimal control without global information. The method classifies the distributed generation node, and achieves the ultimate goal of consistency based on the information communication of local distributed generation by monitoring the power of main distributed generation node and other distributed generation nodes in each layer. The efficiency and feasibility of the strategy are demonstrated by IEEE26 system.

• Periodical: Advanced Materials Research (Volumes 1008-1009)
• Pages: 756-761
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1008-1009.756
• Online since: August 2014
• Authors: Xu Dong Song*, Nan Hua Yu, Zhong Chen, Peng Peng Zong
• Keywords: Active Distribution Network (ADN), Hierarchical Consistency Control, Local Information Communication

References

[1] Lei Jinyong, Li Zhanying, Lu Zehan, Xin Huanhai, Yang Huan. Review on the Research of Distributed Generation Technology and Its Impacts on Electric Power Systems[J]. Southern Power System Technology, 2011, 05(04), 46-50.

[2] Zeng Xiang-jun, Luo Sha, Hu Xiao-xi, Wang Zhan, Yu Kun. Load control and power quality monitoring in active distribution systems[J]. Journal of Electric Power Science and Technology, 2013, 28(1): 42-47.

[3] Wang Jian, Kang Longyun, Cao Binggang. Energy Complementary Control of a Distributed Renewable Energy Power Generation System[J]. Journal of Xi'an Jiaotong University, 2005, 397(7): 766-770.

DOI: 10.1109/lescpe.2004.1356287

[4] Dong Wei. Research on Coordination Control for Microgrids based on MAS[D]. Hefei University of Technology, (2012).

[5] Zhang Baohua. Study on the Coordination Control Strategy of Wind-Solar-Storage Micro-grid[D]. Shenyang University of Technology, (2013).

[6] Bao Wei; Hu Xuehao; Li Guanghui; He Guoqing. Hierarchical Control of Microgrid to Improve Power Sharing and Power Quality[J]. Proceedings of the CSEE, 33(34): 106-114.

[7] Bidram A, Davoudi A, Lewis F L, et al. Secondary control of microgrids based on distributed cooperative control of multi-agent systems[J]. IET Generation, Transmission & Distribution, 2013, 7(8): 822-831.

DOI: 10.1049/iet-gtd.2012.0576
