The Role of Vanadium in Reduction of Helium Diffusion in Tungsten Based Alloys

Abstract:

Helium diffusion is a very critical factor for designing a plasma facing components of fusion reactor. Because it not only reduce the thermal conductivity but also degrade the surface morphology of tungsten based materials. In this numerical study the specimens of tungsten, vanadium and tungsten vanadium alloys have been simulated under thermo-diffusion conditions. The finite element commercial software Abaqus was used for simulation to obtain helium diffusion profile at temperature of 800 K for concentration of10²⁴number of atoms in tungsten and vanadium metals. Due to its relatively low helium diffusion coefficient, vanadium has shown better resistance against helium penetration as compared to tungsten. Subsequently the analytical effect of helium diffusion in tungsten, vanadium and different grades of tungsten vanadium alloys has been investigated. To study the distribution of vanadium in tungsten, tungsten vanadium alloys were fabricated by spark plasma sintering technique and its morphology has been analyzed by scanning electron microscopy.

You might also be interested in these eBooks

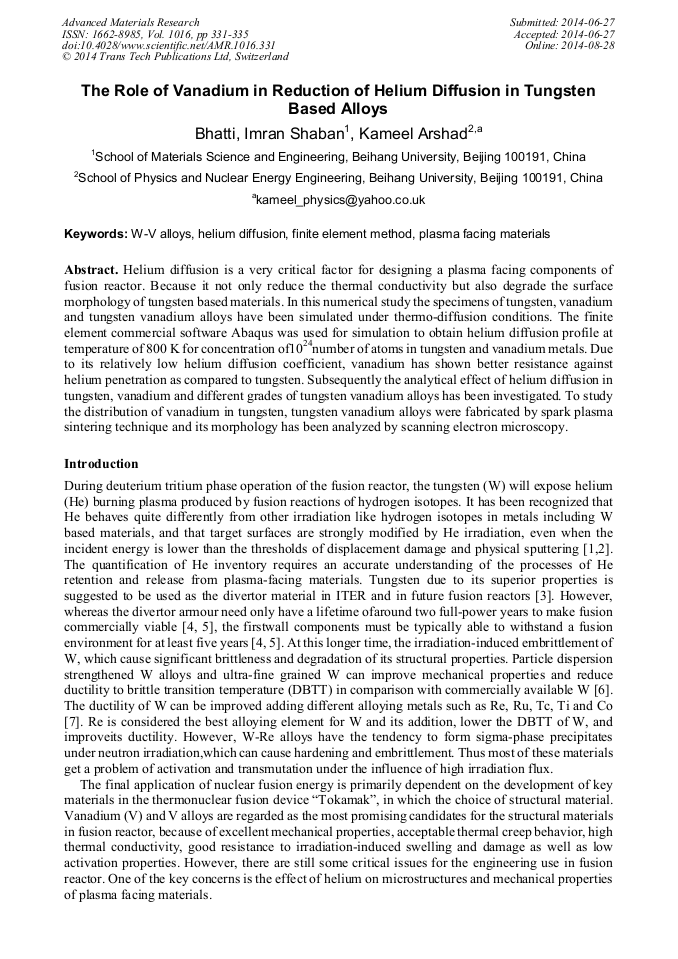

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1016)

Pages:

331-335

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1016.331

Citation:

Cite this paper

Online since:

August 2014

Authors:

Bhatti Imran Shaban*, Kameel Arshad

Keywords:

Finite Element Method (FEM), Helium Diffusion, Plasma Facing Materials, W-V Alloys

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Nishijima D., Ye M.Y., Ohno N. and Takamura S. 2004J. Nucl. Mater. 329–333-1029.

Google Scholar

[2] Baldwin M.J. and Doerner R.P. 2008, Nucl. Fusion 48 035001.

Google Scholar

[3] Cottrell G.A., 2004 J. Nucl. Mater. 334 166–168.

Google Scholar

[4] Zhou Zhang-jianet al, 2009, Fusion Eng: Des., 85(1), 115-121.

Google Scholar

[5] Zhou Zhang-jian, Ma Yao, Du Juan, Linke J., 2009, Materials Science and Engineering A, 505: 131−135.

Google Scholar

[6] Kurishita H, et al, 2007, J. Nucl. Mater., 367−370: 1453−1457.

Google Scholar

[7] Mutoh Y., Ichikawa K., Nagata K. and Takeuchi M., 1995 J. Mater. Sci. 30 770–5.

Google Scholar

[8] ABAQUS v. 6. 10-2. Abaqus analysis user's manual – 6. 8 mass diffusion analysis, Providence (RI, USA): Dassault System Simulia Corp.; (2010).

Google Scholar

[9] Lijiang Gui et al, Progress in Natural Science: Materials International 2013; 23(5): 459–463.

Google Scholar

[10] M.J. Baldwin and R.P. Doerner, Nucl. Fusion48(2008) 035001.

Google Scholar

[11] Kameel Arshad et al, Effects of consolidation conditions on microstructures and properties of tungsten-vanadium alloy, 2014，Proceeding of 11thIBCAST, 12-17.

Google Scholar

[12] Fujii, T., T. Nazama. et al; A safety analysis on overlay disbanding of pressure vessel for hydrogen services, Journal of the American Society for Metals, pp.361-368, (1982).

Google Scholar
