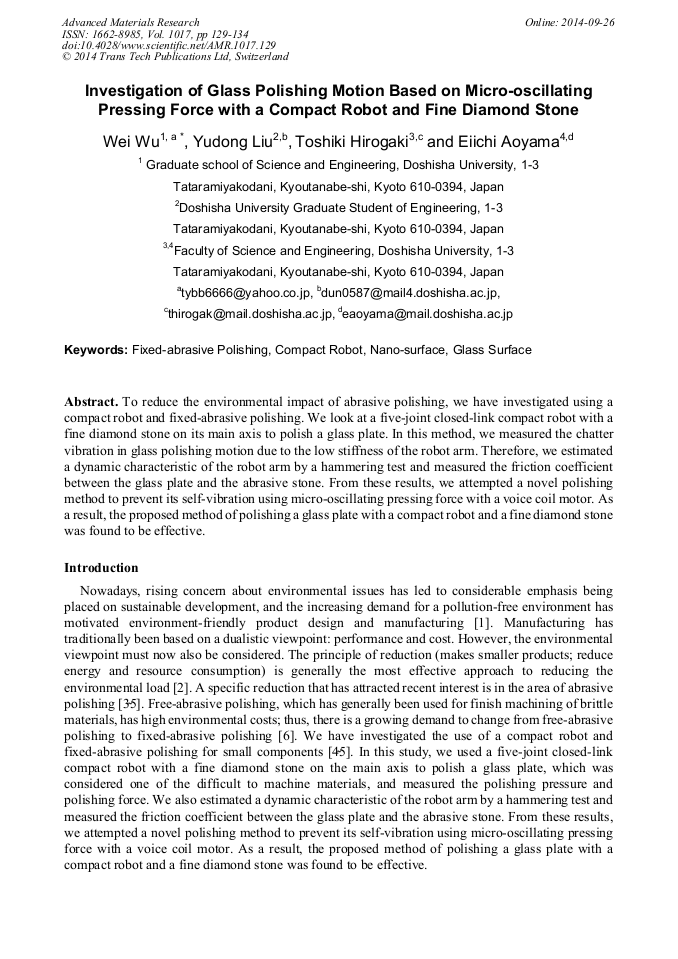

Investigation of Glass Polishing Motion Based on Micro-Oscillating Pressing Force with a Compact Robot and Fine Diamond Stone

Abstract:

To reduce the environmental impact of abrasive polishing, we have investigated using a compact robot and fixed-abrasive polishing. We look at a five-joint closed-link compact robot with a fine diamond stone on its main axis to polish a glass plate. In this method, we measured the chatter vibration in glass polishing motion due to the low stiffness of the robot arm. Therefore, we estimated a dynamic characteristic of the robot arm by a hammering test and measured the friction coefficient between the glass plate and the abrasive stone. From these results, we attempted a novel polishing method to prevent its self-vibration using micro-oscillating pressing force with a voice coil motor. As a result, the proposed method of polishing a glass plate with a compact robot and a fine diamond stone was found to be effective.

• Periodical: Advanced Materials Research (Volume 1017)
• Pages: 129-134
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1017.129
• Online since: September 2014
• Authors: Wei Wu*, Yu Dong Liu, Toshiki Hirogaki, Eiichhi Aoyama
• Keywords: Compact Robot, Fixed-Abrasive Polishing, Glass Surface, Nanosurface

References

[1] K. Doi et al.: J. of JSME C, Vol. 75, No. 749 (2009), p.238 (in Japanese).

[2] K. Ishida et al.: SICE, Vol. 42, No. 10 (2006), p.1168 (in Japanese).

[3] T. Hirogaki et al.: J. of JSME C, Vol. 75, No. 752 (2009), p.1135 (in Japanese).

[4] S. Ogawa et al.: Int. J. of Automation Technology, Vol. 3, No. 4 (2009), p.159.

[5] M. Niwa et al.: Advanced Materials Research, Vol. 565 (2012), p.243.

[6] N. Yasunaga: J. of JSAT, Vol. 53 No. 7 (2009), p.401 (in Japanese).
