Cutting Performance of Binder-Less Nano-Polycrystalline cBN Tool

Abstract:

Binder-less nanopolycrystalline cBN (BL-PcBN) synthesized by direct conversion under high pressure and high temperature has a fine texture consisting of small cBN grains (<100nm), high hardness (40–50 GPa) and high transverse rupture strength (1.3–1.6 GPa). Their mechanical properties strongly depend on their starting materials and synthetic conditions. In this study, Ball-end mill tools prepared from several kinds of BL-PcBN synthesized under various conditions (8–20 GPa, 1500–2300oC) were examined for precision cutting of high-strength hardened steel comparing with conventional sintered cBN. A fine mirror-finish surface with Ra of 20 nm could be produced by precision BL-PcBN tools, while not by conventional sintered cBN tools. The tool wear of BL-PcBN synthesized from hBN at 10 GPa and 2200°C was four to five times less than that of conventional cBN. These results revealed that the BL-PcBN tools have excellent potential for precision cutting on ferrous materials.

You might also be interested in these eBooks

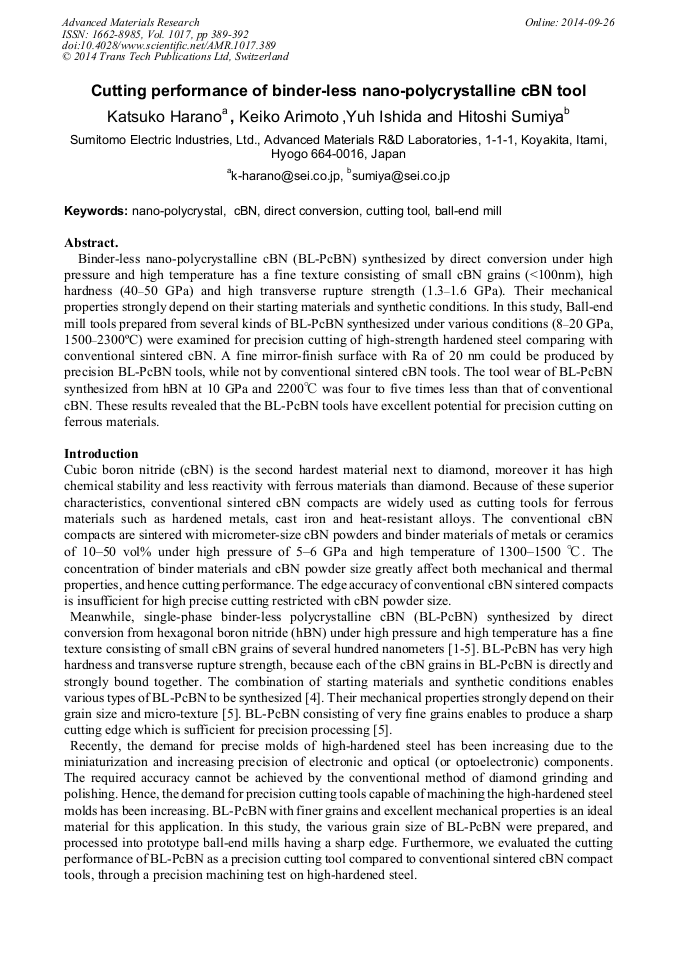

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1017)

Pages:

389-392

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1017.389

Citation:

Cite this paper

Online since:

September 2014

Authors:

Katsuko Harano*, Keiko Arimoto, Yuh Ishida, Hitoshi Sumiya

Keywords:

Ball-End Mill, CBN, Cutting Tool, Direct Conversion, Nanopolycrystal

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] T. Taniguchi et al, Mechanical properties of polycrystalline translucent cubic boron nitride as characterized by Vickers indentation method, J. Am. Ceram. Soc. 79 (1996) 547-549.

DOI: 10.1111/j.1151-2916.1996.tb08165.x

Google Scholar

[2] T. Ohashi et al, Some properties and cutting performance of polycrystalline cubic boron nitride with no additives, Int. J. Refract. Met. Hard Mater. 16 (1998) 403-407.

DOI: 10.1016/s0263-4368(98)00057-2

Google Scholar

[3] H. Sumiya, S. Uesaka, S. Satoh, Mechanical properties of high purity polycrystalline cBN synthesized by direct conversion sintering method, J. Mater. Sci. 35 (2000) 1181-1186.

Google Scholar

[4] Y. Ishida, H. Sumiya, HTHP synthesis of nano composite of cBN and wBN and its characterization, Proceedings of the 2012 Powder Metallurgy World Congress & Exhibition, 2012, 18D-T13-28.

Google Scholar

[5] H. Sumiya, K. Harano, Y. Ishida, Mechanical properties of nano-polycrystalline cBN synthesized by direct conversion sintering under HPHT, Diamond Relat. Mater. 41 (2014) 14-19.

DOI: 10.1016/j.diamond.2013.10.014

Google Scholar
