Wear Characteristics of Binder-Less Nano-Polycrystalline Diamond and Cubic Boron Nitride

Abstract:

Wear characteristics of binder-less (single-phase) nanopolycrystalline diamond (NPD) and cubic boron nitride (BL-PcBN) were investigated by rubbing them against various ceramics such as SiO₂, Si₃N₄, Al₂O₃ and SiC. The wear rates of NPD and BL-PcBN against SiO₂ and Si₃N₄ at high speed rubbing (280-360 m/min) at a loading pressure of 55 MPa (starting condition) were considerably high, indicating the main wear process is a chemical reaction. BL-PcBN specimens were found to be worn at much higher (more than ten times) rates than NPD, suggesting that cBN highly reacts with these ceramics in comparison with diamond under the experiment condition.

You might also be interested in these eBooks

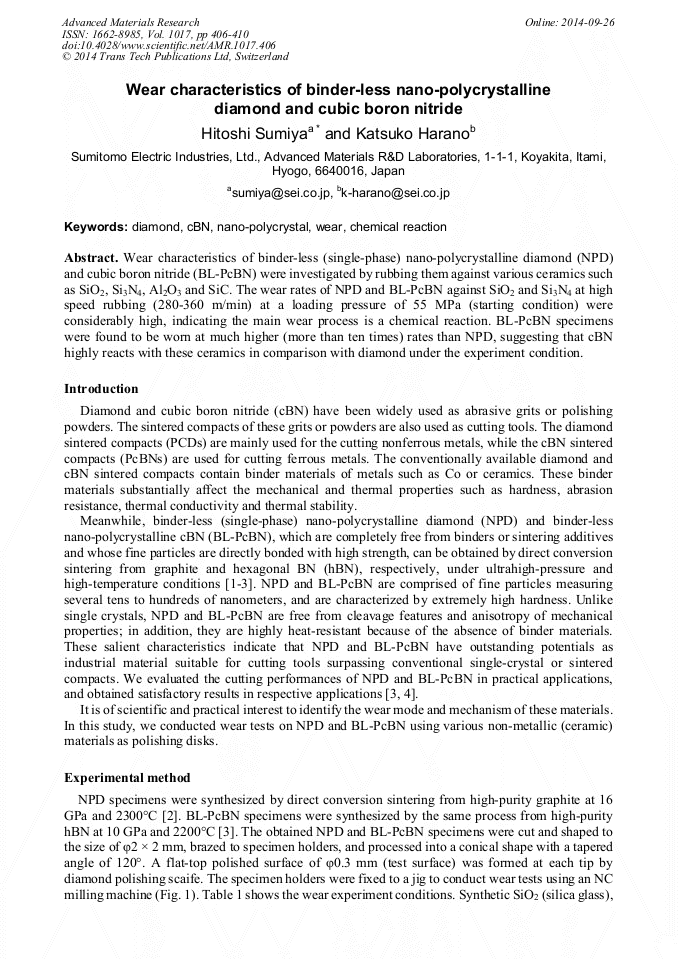

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1017)

Pages:

406-410

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1017.406

Citation:

Cite this paper

Online since:

September 2014

Authors:

Hitoshi Sumiya*, Katsuko Harano

Keywords:

CBN, Chemical Reaction, Diamond, Nanopolycrystal, Wear

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] H. Sumiya, Novel development of high-pressure synthetic diamond: Ultra-hard nano-polycrystalline diamond, SEI Technical Review, 74 (2012) 15-23.

Google Scholar

[2] H. Sumiya, K. Harano, Distinctive mechanical properties of nano-polycrystalline diamond synthesized by direct conversion sintering under HPHT, Diamond Relat. Mater., 24 (2012) 44-48.

DOI: 10.1016/j.diamond.2011.10.013

Google Scholar

[3] H. Sumiya, K. Harano, Y. Ishida, Mechanical properties of nano-polycrystalline cBN synthesized by direct conversion sintering under HPHT, Diamond Relat. Mater., 41 (2014) 14-19.

DOI: 10.1016/j.diamond.2013.10.014

Google Scholar

[4] K. Harano, T. Satoh, H. Sumiya, Cutting performance of nano-polycrystalline diamond, Diamond Relat. Mater., 24 (2012) 78-82.

DOI: 10.1016/j.diamond.2011.11.005

Google Scholar
