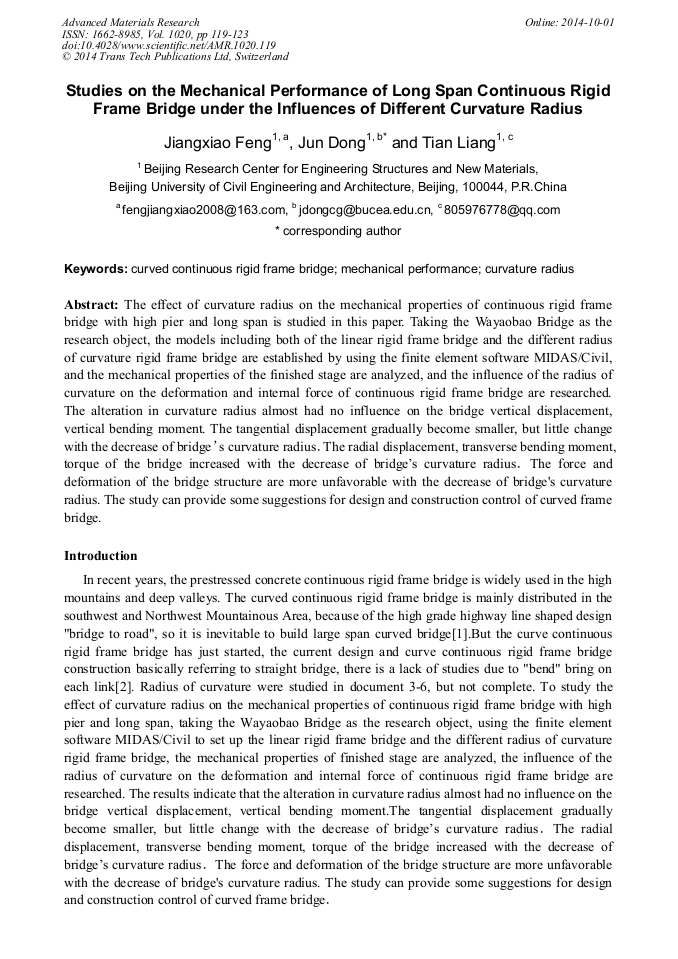

Studies on the Mechanical Performance of Long Span Continuous Rigid Frame Bridge under the Influences of Different Curvature Radius

Abstract:

The effect of curvature radius on the mechanical properties of continuous rigid frame bridge with high pier and long span is studied in this paper. Taking the Wayaobao Bridge as the research object, the models including both of the linear rigid frame bridge and the different radius of curvature rigid frame bridge are established by using the finite element software MIDAS/Civil, and the mechanical properties of the finished stage are analyzed, and the influence of the radius of curvature on the deformation and internal force of continuous rigid frame bridge are researched. The alteration in curvature radius almost had no influence on the bridge vertical displacement, vertical bending moment. The tangential displacement gradually become smaller, but little change with the decrease of bridge’s curvature radius.The radial displacement, transverse bending moment, torque of the bridge increased with the decrease of bridge’s curvature radius.The force and deformation of the bridge structure are more unfavorable with the decrease of bridge's curvature radius. The study can provide some suggestions for design and construction control of curved frame bridge.

• Periodical: Advanced Materials Research (Volume 1020)
• Pages: 119-123
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1020.119
• Online since: October 2014
• Authors: Jiang Xiao Feng, Jun Dong*, Tian Liang
• Keywords: Curvature Radius, Curved Continuous Rigid Frame Bridge, Mechanical Performance

References

[1] YANG Yun, ZHOU Lie-mao, ZHOU Yong-jun. Curved Bridge and High Pier., Beijing: China Communications Press, (2011).

[2] HUANG Zhi-gang. Natural Dynamic Characteristics and Seismic Response Analysis of Curved Continuous Rigid Frame Bridge, Chongqing: Chongqing Jiaotong University, (2011).

[3] CHEN Huai, YAN Hao-jie, LI Jie, SHU Jing-xiao. Analyzing different curvature radius's influence on static mechanical performance of high pier and long span continuous rigid frame bridge, Journal of Railway Science and Engineering, 2013, 10 (1) : 6-10.

[4] YANG Yan-jun. Study on the mechanical properties of the curved rigid frame bridge, Xi'an: Chang'an University, 2010.

[5] LI Xiao-nian, YANG Meng-gang, CHEN Geng. Study on Curvature Effect of Large-span Continuous Rigid Structure Curved Bridge, Technology of Highway and Transport, 2009, ( 4) : 100-102.

[6] GUO Fan, YANG Yong-qing, JIA Shu-yang． Inner force analysis of curved prestressed concrete rigid frame bridge with long-span and high piers, Sichuan Building Science, 2009, 35( 6) : 35-37.
