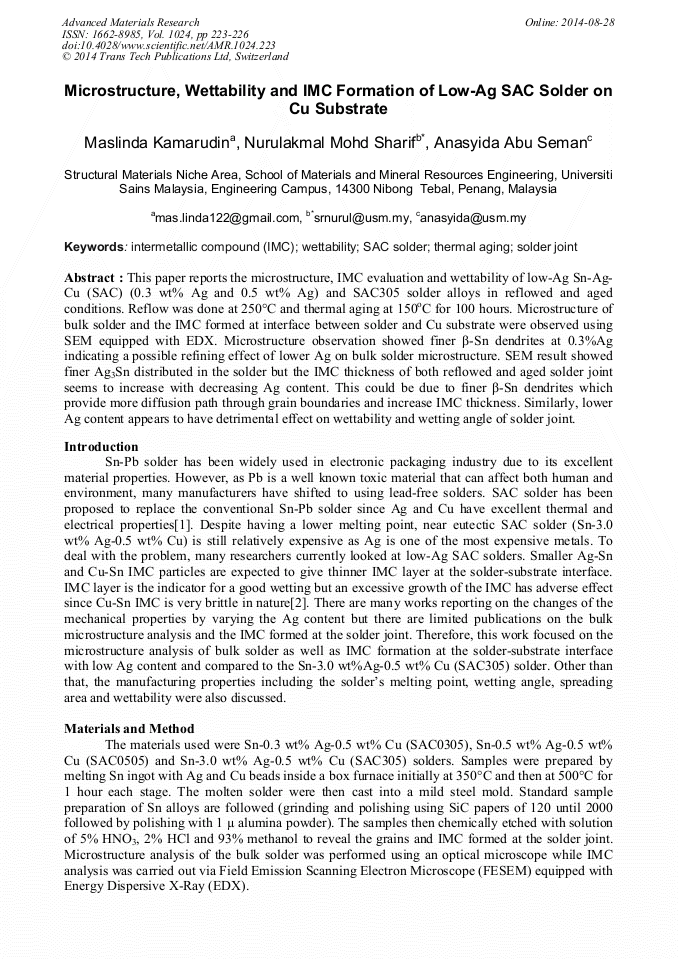

Microstructure, Wettability and IMC Formation of Low-Ag SAC Solder on Cu Substrate

Abstract:

This Paper Reports the Microstructure, IMC Evaluation and Wettability of Low-Ag Sn-Ag-Cu(SAC) (0.3 Wt% Ag and 0.5 Wt% Ag) and SAC305 Solder Alloys in Reflowed and Agedconditions. Reflow was Done at 250°C and Thermal Aging at 150°C For100 Hours. Microstructure of Bulk Solder and the IMC Formed at Interfacebetween Solder and Cu Substrate were Observed Using SEM Equipped with EDX. Microstructureobservation Showed Finer β-Sn Dendrites at 0.3%Ag Indicating a Possiblerefining Effect of Lower Ag on Bulk Solder Microstructure. SEM Result Showedfiner Ag₃Sn Distributed in the Solder but the IMC Thickness of Bothreflowed and Aged Solder Joint Seems to Increase with Decreasing Ag Content.This could be due to Finer β-Sn Dendrites which Provide more Diffusion Paththrough Grain Boundaries and Increase IMC Thickness. Similarly, Lower Ag Content Appears to have Detrimental Effect on Wettability and Wetting Angle Ofsolder Joint.

• Periodical: Advanced Materials Research (Volume 1024)
• Pages: 223-226
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1024.223
• Online since: August 2014
• Authors: Maslinda Kamarudin, Mohd Sharif Nurulakmal*, Abu Seman Anasyida
• Keywords: Intermetallic Compound (IMC), SAC Solder, Solder Joint, Thermal Aging, Wettability

References

[1] Tan, K. and K. Cheong, Advances of Ag, Cu, and Ag–Cu alloy nanoparticles synthesized via chemical reduction route. Journal of Nanoparticle Research, 2013. 15(4): pp.1-29.

DOI: 10.1007/s11051-013-1537-1

[2] Li, D., C. Liu, and P.P. Conway, Characteristics of intermetallics and micromechanical properties during thermal ageing of Sn–Ag–Cu flip-chip solder interconnects. Materials Science and Engineering: A, 2005. 391(1–2): pp.95-103.

DOI: 10.1016/j.msea.2004.10.007

[3] Seok-Hwan Huh, K. -S.K., Katsuaki Suganuma, Effect of Ag Addition to the Microstructural and Mechanical Properties of Sn-Cu Eutectic Solder. Materials Transactions, 2001. 42(No. 5): p.739 to 744.

DOI: 10.2320/matertrans.42.739

[4] Lee, J. -H., et al., Reaction properties and interfacial intermetallics for Sn−xAg−0. 5Cu solders as a function of Ag content. Metals and Materials International, 2008. 14(5): pp.649-654.

DOI: 10.3365/met.mat.2008.10.649

[5] Deng, X., et al., Influence of initial morphology and thickness of Cu6Sn5 and Cu3Sn intermetallics on growth and evolution during thermal aging of Sn-Ag solder/Cu joints. Journal of Electronic Materials, 2003. 32(12): pp.1403-1413.

DOI: 10.1007/s11664-003-0108-0
