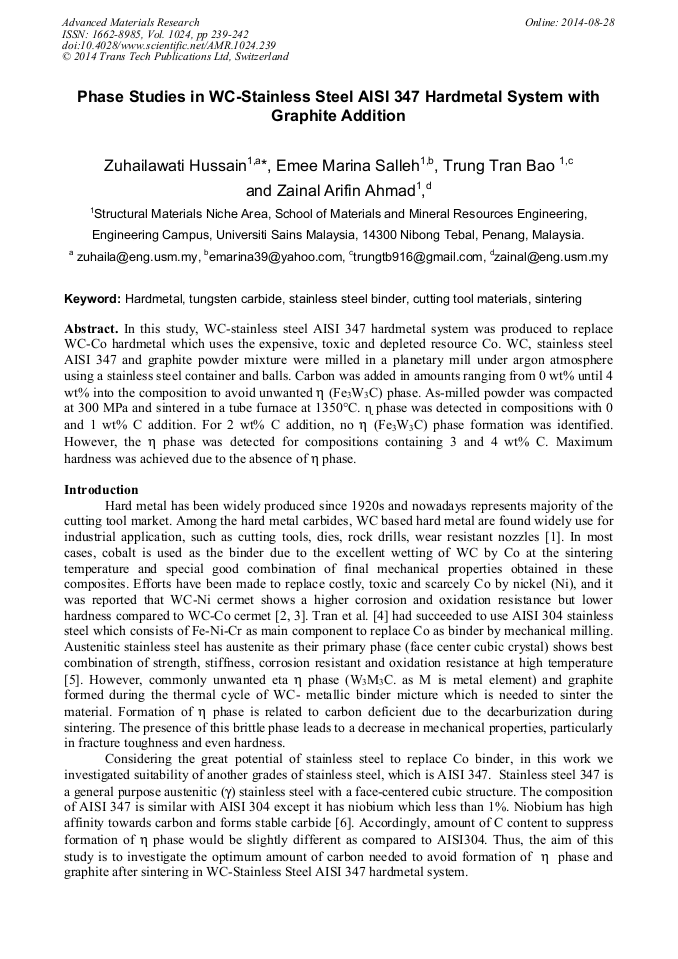

Phase Studies in WC-Stainless Steel AISI 347 Hardmetal System with Graphite Addition

Abstract:

In this study, WC-stainless steel AISI 347 hardmetal system was produced to replace WC-Co hardmetal which uses the expensive, toxic and depleted resource Co. WC, stainless steel AISI 347 and graphite powder mixture were milled in a planetary mill under argon atmosphere using a stainless steel container and balls. Carbon was added in amounts ranging from 0 wt% until 4 wt% into the composition to avoid unwanted η (Fe₃W₃C) phase. As-milled powder was compacted at 300 MPa and sintered in a tube furnace at 1350°C. ɳ phase was detected in compositions with 0 and 1 wt% C addition. For 2 wt% C addition, no η (Fe₃W₃C) phase formation was identified. However, the η phase was detected for compositions containing 3 and 4 wt% C. Maximum hardness was achieved due to the absence of η phase.

• Periodical: Advanced Materials Research (Volume 1024)
• Pages: 239-242
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1024.239
• Online since: August 2014
• Authors: Zuhailawati Hussain*, Emee Marina Salleh, Tran Bao Trung, Zainal Arifin Ahmad
• Keywords: Cutting Tool Materials, Hardmetal, Sintering, Stainless Steel Binder, Tungsten Carbide

References

[1] C. M Fernandes, A.M.R. Senos, Mechanical characterization of composites prepared from WC powders coated with Ni rich binders. International Journal Refractory Metals & Hard Materials, 26 (2008) 491-498.

DOI: 10.1016/j.ijrmhm.2007.12.001

[2] I.J. Shon, I.K. Jeong, Properties and rapid consolidation of WC-based hard materials with various binders by a pulsed current activated sintering method. Journal Ceramic Processing Research, 9 (5), (2008) 512-516.

[3] Yuhong Xiong, Ki Lau, Schoenung. A streamlined life cycle assessment on the fabrication of the WC-Co cermets. J Cleaner Production, 16 (2008) 1118-1126.

DOI: 10.1016/j.jclepro.2007.05.007

[4] T.B. Tran, H. Zuhailawati, Z.A. Ahmad, K.N. Ishihara, Grain growth, phase evolution and properties of NbC carbide-doped WC-10AISI304 hardmetals produced by pseudo hot isostatic pressing, Journal of Alloys & Compounds 552 (2013) 20–25.

DOI: 10.1016/j.jallcom.2012.10.060

[5] C.M. Fernandes, A.M.R. Senos, et al. Sintering of tungsten carbide particles sputter-deposited with stainless steel. Int J Refractory Metals & Hard Materials, 21 (2003) 147-154.

DOI: 10.1016/s0263-4368(03)00029-5

[6] C.M. Fernandes, A.M.R. Senos, et al. Control of eta carbide formation in tungsten carbide powders sputtercoated with (Fe/Ni/Cr). International Journal Refractory Metals & Hard Materials, 25 (2007), 310-317.

DOI: 10.1016/j.ijrmhm.2006.07.004

[7] C.M. Fernandes, A.M.R. Senos, Particle surface properties of stainless steel coated tungsten carbide powders. Powder Technology, 164 (2006) 124-129.

DOI: 10.1016/j.powtec.2006.03.005

[8] L. Gardner, A. Insausti. Elevated temperature material properties of stainless steel alloys. Journal Construction Steel Research, 66 (2010), 634-647.

DOI: 10.1016/j.jcsr.2009.12.016

[9] E. Menthe, K. -T. Rie. Further investigation of the structure and properties of austenitic stainless steel after plasma nitriding. Surface and Coatings Technology, 116-119 (1999) 199-204.

DOI: 10.1016/s0257-8972(99)00085-7

[10] C.M. Fernandes, V. Popovich, Carbide phases formed in WC-M (M=Fe/Ni/Cr) systems. Ceramics International, 35 (2009) 369-372.

DOI: 10.1016/j.ceramint.2007.11.001

[11] Hwan-Cheol Kim, In-Jin Shon, et al. Rapid sintering of ultrafine WC-Ni cermets. International Journal Refractory Metals & Hard Materials, 24 (2006) 427-431.

DOI: 10.1016/j.ijrmhm.2005.07.002
