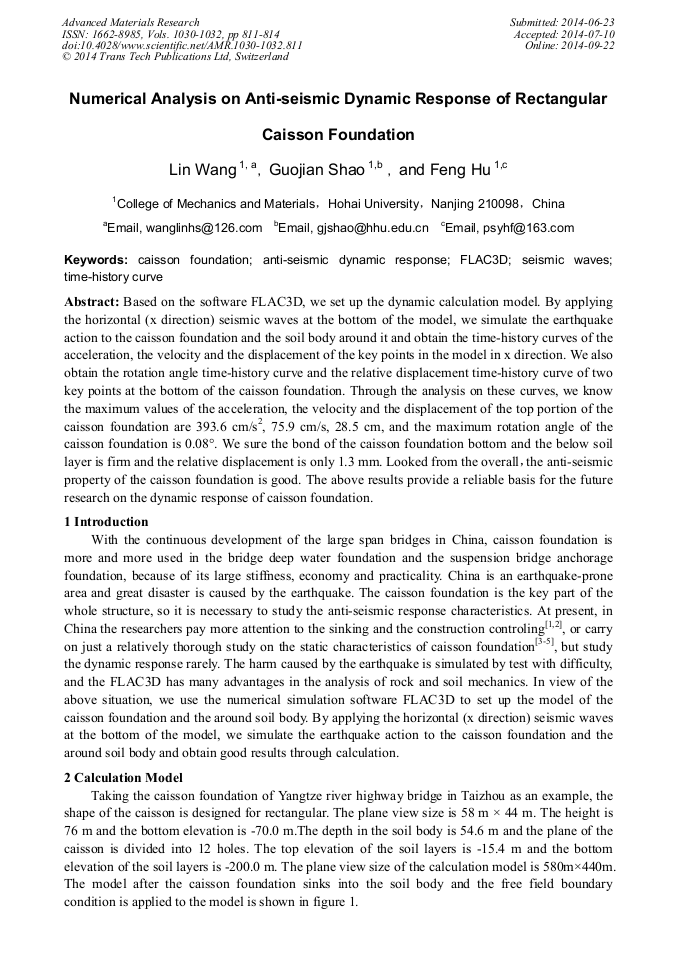

Numerical Analysis on Anti-Seismic Dynamic Response of Rectangular Caisson Foundation

Abstract:

Based on the software FLAC3D, we set up the dynamic calculation model. By applying the horizontal (x direction) seismic waves at the bottom of the model, we simulate the earthquake action to the caisson foundation and the soil body around it and obtain the time-history curves of the acceleration, the velocity and the displacement of the key points in the model in x direction. We also obtain the rotation angle time-history curve and the relative displacement time-history curve of two key points at the bottom of the caisson foundation. Through the analysis on these curves, we know the maximum values of the acceleration, the velocity and the displacement of the top portion of the caisson foundation are 393.6 cm/s², 75.9 cm/s, 28.5 cm, and the maximum rotation angle of the caisson foundation is 0.08°. We sure the bond of the caisson foundation bottom and the below soil layer is firm and the relative displacement is only 1.3 mm. Looked from the overall,the anti-seismic property of the caisson foundation is good. The above results provide a reliable basis for the future research on the dynamic response of caisson foundation.

• Periodical: Advanced Materials Research (Volumes 1030-1032)
• Pages: 811-814
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1030-1032.811
• Online since: September 2014
• Authors: Lin Wang, Guo Jian Shao*, Feng Hu
• Keywords: Anti-Seismic Dynamic Response, Caisson Foundation, FLAC3D, Seismic Waves, Time-History Curve

References

[1] LIU Jianbo, YANG Yanhua, ZHAI Shihong, et al. Key construction technology of large deepwater open-caisson foundation in Taizhou Yangtze River Bridge[J]. Construction Technology, 2011, 40(339): 74-77, 82.

[2] CHEN Yuzhen. Construction technique of caisson foundation for coastal structure engineering[J]. Port & Waterway Engineering, 2012, (4): 191-195.

[3] ZHU Jianmin, GONG Weiming, MU Baogang, et al. Research on stress and settlement of super-large open caisson during first lifts[J]. Rock and Soil Mechanics, 2012, 33(7): 2055-2060, (2066).

[4] MU Baogang, WANG Yan, ZHU Jianmin. Analysis of large caisson sinking measured resistance[J]. Journal of Civil, Architectural & Environmental Engineering, 2012, 33(S1): 107-115.

[5] HE Qiaoling, WANG Jinguo, XU Yushen. Study of monitoring of the earth pressure of south anchorage foundation of Taizhou Changjiang River Highway Bridge[J]. Science Technology and Engineering, 2013, 13(12): 3514-3519.

[6] CHEN Yumin, XU Dingping. The FLAC/FLAC3D Foundation and Engineering Examples(Second Edition)[M]. Beijing: China WaterPower Press, 2013: 217-229.
