Effect of Annealing Treatment on the Isothermal and Cyclic Oxidation Behavior of an Electrodeposited Alumina-Forming Ni-Al Microcomposite

Abstract:

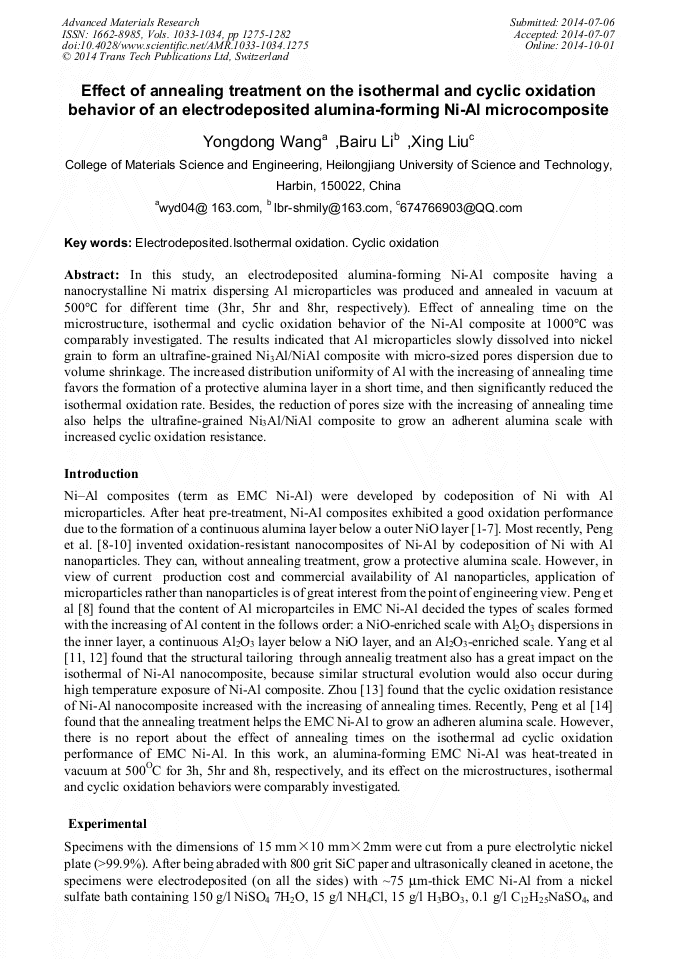

In this study, an electrodeposited alumina-forming Ni-Al composite having a nanocrystalline Ni matrix dispersing Al microparticles was produced and annealed in vacuum at 500°C for different time (3hr, 5hr and 8hr, respectively). Effect of annealing time on the microstructure, isothermal and cyclic oxidation behavior of the Ni-Al composite at 1000°C was comparably investigated. The results indicated that Al microparticles slowly dissolved into nickel grain to form an ultrafine-grained Ni₃Al/NiAl composite with micro-sized pores dispersion due to volume shrinkage. The increased distribution uniformity of Al with the increasing of annealing time favors the formation of a protective alumina layer in a short time, and then significantly reduced the isothermal oxidation rate. Besides, the reduction of pores size with the increasing of annealing time also helps the ultrafine-grained Ni₃Al/NiAl composite to grow an adherent alumina scale with increased cyclic oxidation resistance.

• Periodical: Advanced Materials Research (Volumes 1033-1034)
• Pages: 1275-1282
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1033-1034.1275
• Online since: October 2014
• Authors: Yong Dong Wang*, Bai Ru Li, Xing Liu
• Keywords: Cyclic Oxidation, Electrodeposited, Isothermal Oxidation

References

[1] FOSTER J, CAMERON B P and CAREW J A: Trans Inst Met Finish. Vol. 63(1985), p.115.

[2] IZAKI M, FUKUSUMI M, ENOMOT H, et al: J Japan Inst Met. Vol. 57(1993), p.182.

[3] SUSAN D F and MARDER A R. Oxid Met. Vol. 57(2002) , p.131.

[4] SUSAN D F and MARDER A R. Oxid Met. Vol. 57(2002) , p.159.

[5] LIU H F and CHEN W X. Oxid Met . Vol. 64(2005), p.331.

[6] LIU H F and CHEN W X. Corrosion Science . Vol. 49(2007), p.3453.

[7] ZHOU Y B, ZHAO G G, ZHANG H J, et al. Vacuum . Vol. 83(2009), p.1333.

[8] ZHOU Y, PENG X and WANG F. Oxid Met . Vol. 64(2005), p.169.

[9] ZHOU Y, PENG X and WANG F. . Vol. 50(2004), p.1429.

[10] ZHOU Y, PENG X and WANG F. Scripta Materialia . Vol. 55(2006), p.1039.

[11] YANG X. PENG X, WANG F. Corrosion Science . Vol. 50(2009), p.3227.

[12] YANG X. PENG X and WANG F. Scripta Materialia . Vol. 56(2007), p.509.

[13] ZHOU Yue-bo, ZHANG Hai-jun. Transactions of Nonferrous Metals Society of China . Vol. 21(2011), p.322.

[14] PENG X, LI M and WANG F. Corrosion Science . Vol. 53(2011), p.1616.

[15] LIU H F and CHEN W X. Intermetallics . Vol. 13(2005), p.805.

[16] SUSAN D F, MISIOLEK W Z, MARDER A R. Metall Mater Trans A. Vol. 32(2001), p.379.

[17] SUSAN D F and MARDER A R. Acta Materialia. Vol. 49(2001), p.1153.
