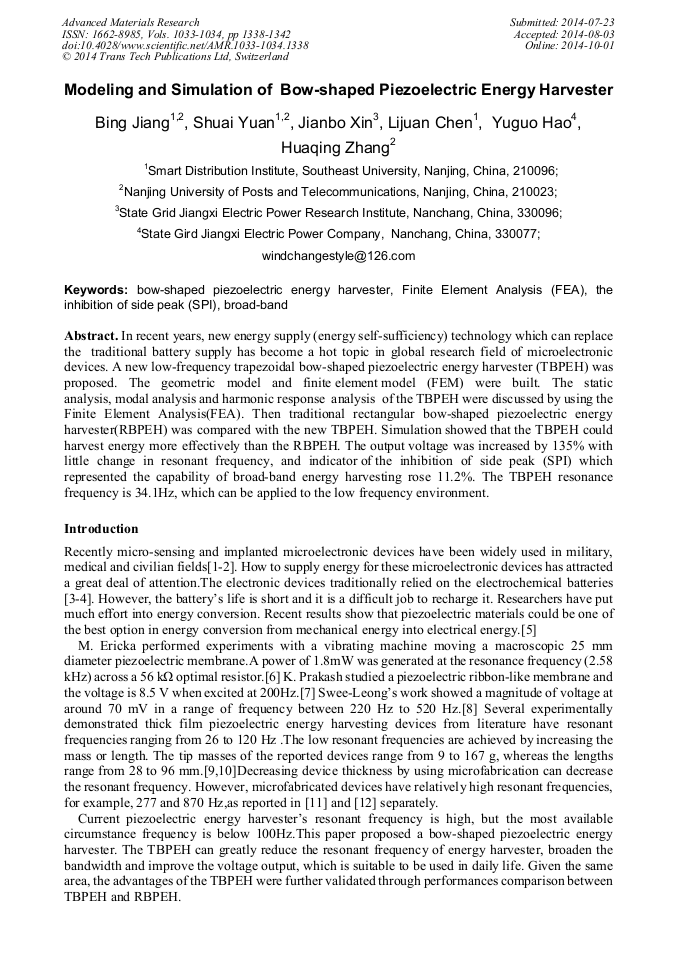

Modeling and Simulation of Bow-Shaped Piezoelectric Energy Harvester

Abstract:

In recent years, new energy supply (energy self-sufficiency) technology which can replace the traditional battery supply has become a hot topic in global research field of microelectronic devices. A new low-frequency trapezoidal bow-shaped piezoelectric energy harvester (TBPEH) was proposed. The geometric model and finite element model (FEM) were built. The static analysis, modal analysis and harmonic response analysis of the TBPEH were discussed by using the Finite Element Analysis(FEA). Then traditional rectangular bow-shaped piezoelectric energy harvester(RBPEH) was compared with the new TBPEH. Simulation showed that the TBPEH could harvest energy more effectively than the RBPEH. The output voltage was increased by 135% with little change in resonant frequency, and indicator of the inhibition of side peak (SPI) which represented the capability of broad-band energy harvesting rose 11.2%. The TBPEH resonance frequency is 34.1Hz, which can be applied to the low frequency environment.

• Periodical: Advanced Materials Research (Volumes 1033-1034)
• Pages: 1338-1342
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1033-1034.1338
• Online since: October 2014
• Authors: Bing Jiang, Shuai Yuan*, Jian Bo Xin, Li Juan Chen, Yu Guo Hao, Hua Qing Zhang
• Keywords: Bow-Shaped Piezoelectric Energy Harvester, Broad-Band, Finite Element Analysis (FEA), Inhibition of Side Peak (SPI)

References

[1] Mack, S., Hussein, Tracking the thermal induced vapor transport across foam microstructure by means of micro-sensing technology, journal of food engineering, vol. 116. (2013).

DOI: 10.1016/j.jfoodeng.2012.11.015

[2] Hu Jingfang, Sun Jizhou, Study on Micro-sensing Chip of Nitrate Based on Three-dimensional Nano-structured Silver Modified Electrode, ACTA CHIMICA SINICA. (2012).

DOI: 10.6023/a1110013

[3] Guido Wager, Testing energy efficiency and driving range of electric vehicles in relation to gear selection, Renewable Energy, vol. 62, p.303. (2014).

DOI: 10.1016/j.renene.2013.07.029

[4] M.G. Ippolito, Multi-objective optimized management of electrical energy storage systems in an islanded network with renewable energy sources under different design scenarios, Energy. (2014).

DOI: 10.1016/j.energy.2013.11.065

[5] Z. Abdin, Solar energy harvesting with the application of nanotechnology, Renewable and Sustainable Energy Reviews, vol. 26, p.837. (2013).

DOI: 10.1016/j.rser.2013.06.023

[6] M. Ericka, Energy harvesting from vibration using a piezoelectric membrane,J. Phys. IV France 128 . (2005).

DOI: 10.1051/jp4:2005128028

[7] K. Prakash, Harvesting energy at resonance from standing waves on polymer piezoelectric ribbon-like membrane , electronics letters . (2013).

DOI: 10.1049/el.2013.2426

[8] Swee-Leong, Kok, Multi-Frequency Energy Harvesting Using Thick-Film Piezoelectric Cantilever, Control and Computer Engineering. (2011).

DOI: 10.1109/inecce.2011.5953918

[9] K. Adachi and T. Tanaka, An experimental power generation evaluation of cantilever type of piezoelectric vibration energy harvester, in ASME Conf. Smart Materials, Adaptive Structures and Intelligent Systems. ( 2009).

DOI: 10.1115/smasis2010-3708

[10] E. S. Leland, E. M. Lai, and P. K. Wright, A self-powered wireless sensor for indoor environmental monitoring, in Wireless Networking Symp., pp.1-5. (2004).

[11] R . Elfrink, Vibration energy harvesting with aluminum nitride-based piezoelectric devices,J. Micromech. Microeng., vol. 19, no. 9, art. no. 094005. (2009).

DOI: 10.1088/0960-1317/19/9/094005

[12] H. Kim, Laser-machined piezoelectric cantilevers for mechanical energy harvesting, IEEE Trans. Ultrason. Ferroelectr. Freq. Control, vol. 55, no. 9, p.1900–1905, Sep. (2008).

DOI: 10.1109/tuffc.881

[13] Zhu, Strategies for increasing the operating frequency range of vibration energy harvesters: a review. Meas. Sci. Technol. (2010).

[14] Kok, Free-standing thickfilm piezoelectric device. Electronics Letters, pp.280-281. (2008).
