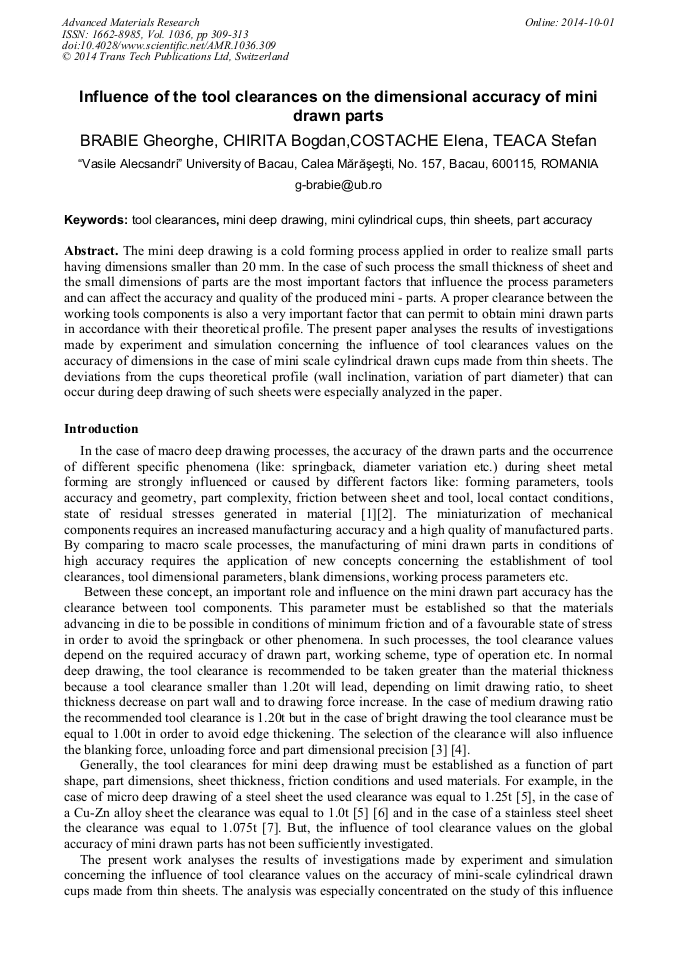

Influence of the Tool Clearances on the Dimensional Accuracy of Mini Drawn Parts

Abstract:

The mini deep drawing is a cold forming process applied in order to realize small parts having dimensions smaller than 20 mm. In the case of such process the small thickness of sheet and the small dimensions of parts are the most important factors that influence the process parameters and can affect the accuracy and quality of the produced mini - parts. A proper clearance between the working tools components is also a very important factor that can permit to obtain mini drawn parts in accordance with their theoretical profile. The present paper analyses the results of investigations made by experiment and simulation concerning the influence of tool clearances values on the accuracy of dimensions in the case of mini scale cylindrical drawn cups made from thin sheets. The deviations from the cups theoretical profile (wall inclination, variation of part diameter) that can occur during deep drawing of such sheets were especially analyzed in the paper.

• Periodical: Advanced Materials Research (Volume 1036)
• Pages: 309-313
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1036.309
• Online since: October 2014
• Authors: Gheorghe Brabie*, Bogdan Chirita, Elena Costache, Robert Stefanut Teaca
• Keywords: Mini Cylindrical Cups, Mini Deep Drawing, Part Accuracy, Thin Sheets, Tool Clearances

References

[1] D. Joannic, J.C. Gelin, Shape defects in sheet metal forming operation after springback, Int. Conf. Numisheet'99, Besancon, France (1999) 29-34.

[2] P. Ulintz, Tooling by design. Anatomy of a deep drawn cup, Metalforming / April (2007) 54-55.

[3] G. Fang, P. Zeng, L. Lou, Finite element simulation of the effect of clearance on the forming quality in the blanking process, J. of Mater. Process. Technol. This article is not included in your organization's subscription. However, you may be able to access this article under your organization's agreement with Elsevier. 119, Issues 1-3 (2001).

[4] Sheet Steel Forming Handbook. Size shearing and plastic forming, SSAB Tunnplat AB (1998).

[5] Y. Saotome, K. Yasuda, H. Kaga, Microdeep drawability of very thin sheets steel, J. of Mater. Process. Technol. 113 (2001) 641-647.

DOI: 10.1016/s0924-0136(01)00626-4

[6] H. Justinger, N. Witulski, G. Hirt, Experimental and Numerical Investigation of Miniaturisation in Deep Drawing, Proc. of the 10th Int. Conf. on Metal Forming, Krakow, (2004) 693–698.

[7] K. Manabe, T. Shimizua, H. Koyamab, M. Yanga, K. Itoc, Validation of FE simulation based on surface roughness model in micro-deep drawing, J. of Mater. Process. Technol. 204(2008) 89-93.

DOI: 10.1016/j.jmatprotec.2007.10.081
