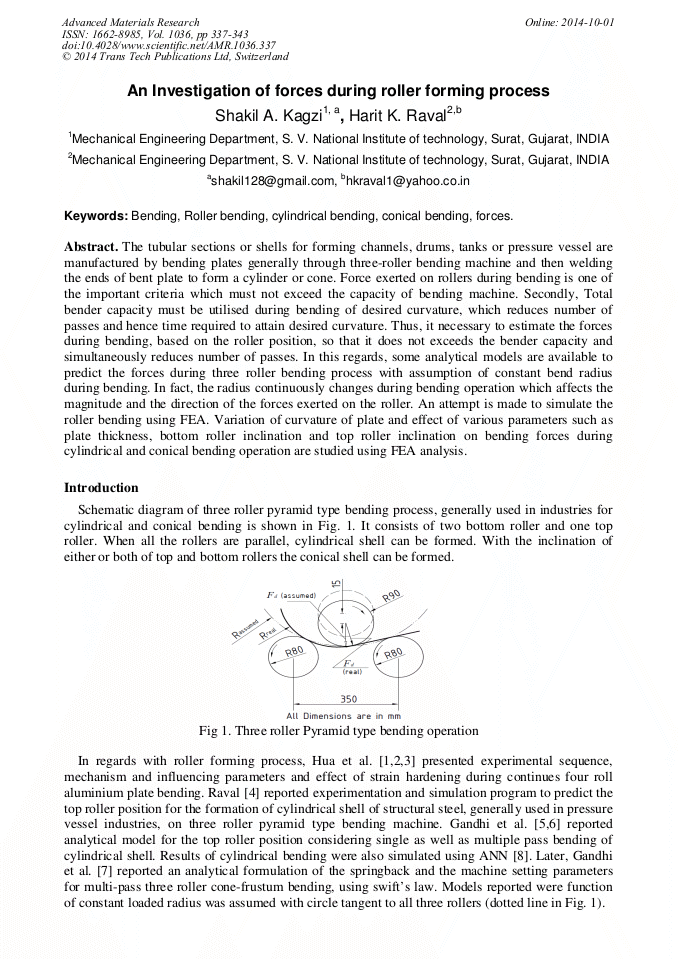

An Investigation of Forces during Roller Forming Process

Abstract:

The tubular sections or shells for forming channels, drums, tanks or pressure vessel are manufactured by bending plates generally through three-roller bending machine and then welding the ends of bent plate to form a cylinder or cone. Force exerted on rollers during bending is one of the important criteria which must not exceed the capacity of bending machine. Secondly, Total bender capacity must be utilised during bending of desired curvature, which reduces number of passes and hence time required to attain desired curvature. Thus, it necessary to estimate the forces during bending, based on the roller position, so that it does not exceeds the bender capacity and simultaneously reduces number of passes. In this regards, some analytical models are available to predict the forces during three roller bending process with assumption of constant bend radius during bending. In fact, the radius continuously changes during bending operation which affects the magnitude and the direction of the forces exerted on the roller. An attempt is made to simulate the roller bending using FEA. Variation of curvature of plate and effect of various parameters such as plate thickness, bottom roller inclination and top roller inclination on bending forces during cylindrical and conical bending operation are studied using FEA analysis.

• Periodical: Advanced Materials Research (Volume 1036)
• Pages: 337-343
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1036.337
• Online since: October 2014
• Authors: Shakil A. Kagzi*, Harit K. Raval
• Keywords: Bending, Conical Bending, Cylindrical Bending, Forces, Roller Bending

References

[1] M. Hua, D.H. Sansome, K.P. Rao, K. Baines, Continues four roll plate bending process: its bending mechanism and influential parameters, J. Mater. Process. Tech. 45 (1994) 181-186.

DOI: 10.1016/0924-0136(94)90338-7

[2] M. Hua, D.H. Sansome, K. Baines, Mathematical modeling of internal bending moment at top roller contact in multi-pas four roll thin plate bending, J. Mater. Process. Tech. 52(1995b) 425-459.

DOI: 10.1016/0924-0136(94)01732-g

[3] M. Hua, Y.H. Lin, Effect of strain hardening on the continues four roll plate edge bending process, J. Mater. Process. Tech. 89-90(1999) 12-18.

DOI: 10.1016/s0924-0136(99)00010-2

[4] H.K. Raval, Experimental and theoretical investigation of bending process (Vee and three roler bending), Ph. D. Thesis, South Gujarat University, India, (2002).

[5] A.H. Gandhi, H.K. Raval, Analytical modeling of top roller position for multiple pass (3-roller) cylindrical forming of plates, Proceedings of IMECE 2006, ASME Mechanical Engineering congress and Exposition, Chicago, Illinios, USA, 10 (2006).

DOI: 10.1115/imece2006-14279

[6] A.H. Gandhi, H.K. Raval, Analytical and empirical modeling of top roller position for three roller cylindrical bending of plates and its experimental verification, J. Mater. Process. Tech. 197(2008) 268-278.

DOI: 10.1016/j.jmatprotec.2007.06.033

[7] A.H. Gandhi, H.K. Raval, Formulation of springback and machine setting parameters for multi-pass three-roller cone frustum bending with change in flexural modulus, Int. J. Mater. Form. 2(2009) 45-57.

DOI: 10.1007/s12289-008-0390-8

[8] A.H. Gandhi, P.P. Gohil, H.K. Raval, Simulation of three roller bending process through ANN: A perametric Study, Int. J. Manufac. Res. 4-3(2009) 265-280.

DOI: 10.1504/ijmr.2009.026574

[9] A.H. Gandhi, Prediction of machine setting parameters and roller configuration for continues bending of conical shell on three roller bending machine, Ph. D. Thesis, S. V. National Institute of Technology, India (2009).

[10] Feng Zhengkun, Chamliaud Henri, Three stage process for improving roll bending quality, Simul. Model. Pract. Th. 19(2011a) 887-898.

[11] Zeng, Jun, Zhao, heng, Liu, Chamliaud Henri, FEM dynamic simulation and analysis of roll-bending process for forming of conical tube, J. Mater. Process. Tech. 198 (2008) 330-343.

DOI: 10.1016/j.jmatprotec.2007.07.016

[12] Feng Zhengkun, Chamliaud Henri, Modelling and simulation of asymmetrical three-roll bending process, Simul. Model. Pract. Th. 19(2011) 1913-(1917).

DOI: 10.1016/j.simpat.2011.05.006

[13] Feng Zhengkun, Chamliaud Henri, "Investigation of non-kinematic conical roll bending process with conical rolls, Simul. Model. Pract. Th. 27(2012) 25-65.

DOI: 10.1016/j.simpat.2012.05.007

[14] M. K. Chudasama, H.K. Raval, An Approximate bending force prediction for three roller conical bending process, Int. J. Met. Form. 6(2013) 303-314.

DOI: 10.1007/s12289-011-1087-y

[15] M. K. Chudasama, H.K. Raval, Bending force prediction for dynamic roll-bending during 3-roller conical bending process, J. Manufac. Process (2013). (Accepted).

DOI: 10.1016/j.jmapro.2013.09.008

[16] Ming Yang, Susumu Shima, Simulation of bending type three roller bending process, Int. J. Mech. Sci. 30-12(1988) 877-886.

DOI: 10.1016/0020-7403(88)90071-9
