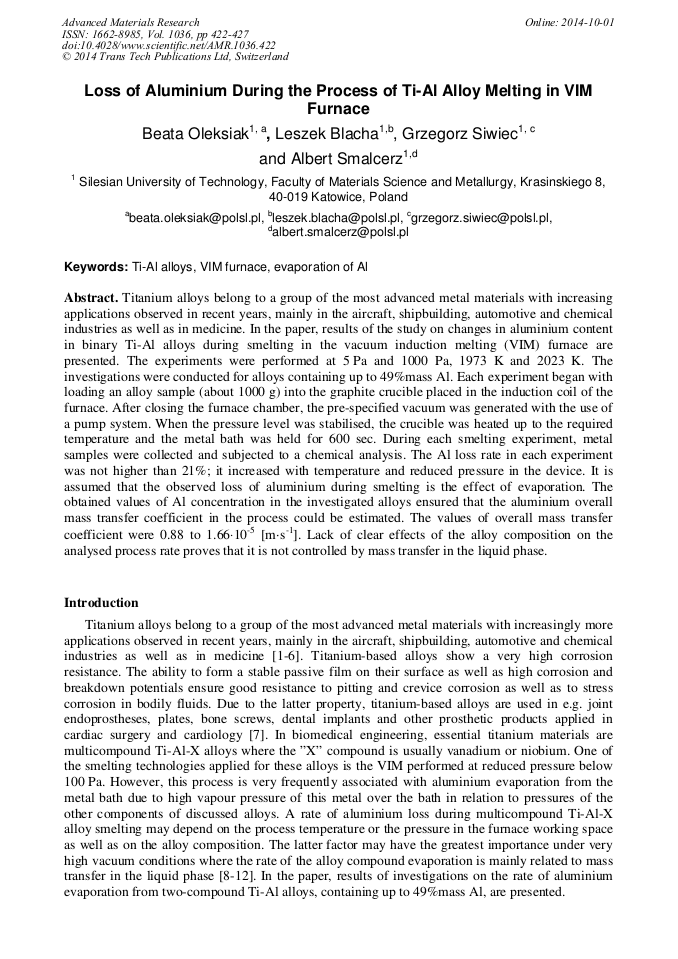

Loss of Aluminium during the Process of Ti-Al Alloy Melting in VIM Furnace

Abstract:

Titanium alloys belong to a group of the most advanced metal materials with increasing applications observed in recent years, mainly in the aircraft, shipbuilding, automotive and chemical industries as well as in medicine. In the paper, results of the study on changes in aluminium content in binary Ti-Al alloys during smelting in the vacuum induction melting (VIM) furnace are presented. The experiments were performed at 5 Pa and 1000 Pa, 1973 K and 2023 K. The investigations were conducted for alloys containing up to 49%mass Al. Each experiment began with loading an alloy sample (about 1000 g) into the graphite crucible placed in the induction coil of the furnace. After closing the furnace chamber, the pre-specified vacuum was generated with the use of a pump system. When the pressure level was stabilised, the crucible was heated up to the required temperature and the metal bath was held for 600 sec. During each smelting experiment, metal samples were collected and subjected to a chemical analysis. The Al loss rate in each experiment was not higher than 21%; it increased with temperature and reduced pressure in the device. It is assumed that the observed loss of aluminium during smelting is the effect of evaporation. The obtained values of Al concentration in the investigated alloys ensured that the aluminium overall mass transfer coefficient in the process could be estimated. The values of overall mass transfer coefficient were 0.88 to 1.66×10^-5 [m·s^-1]. Lack of clear effects of the alloy composition on the analysed process rate proves that it is not controlled by mass transfer in the liquid phase.

• Periodical: Advanced Materials Research (Volume 1036)
• Pages: 422-427
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1036.422
• Online since: October 2014
• Authors: Beata Oleksiak*, Leszek Blacha, Grzegorz Siwiec, Albert Smalcerz
• Keywords: Evaporation of Al, TiAl Alloys, VIM Furnace

References

[1] R. Burdzik, Ł. Konieczny, Research on structure, propagation and exposure to general vibration in passenger car for different damping parameters, Journal of Vibroengineering 15 (4) (2013) 1680-1688.

[2] J. Mańkowski, J., Osiński, P., Żach, Tension field in thin walled aeronautical girders, Mechanics and Mechanical Engineering 14 (2) (2010) 291-308.

[3] A. Grządziela, Ship impact modeling of underwater explosion, Journal of Kones Powertrain and Transport 18 (2) (2011) 145-152.

[4] A. Grządziela, Diagnosis of naval gas turbine rotors with the use of vibroacoustic papmeters, Polish Maritime Researches 7 (3) (2000) 14 – 17.

[5] A. Lisiecki, Welding of titanium alloy by Disk laser, Proceedings of SPIE, Laser Technology 2012: Applications of Lasers 8703 (2013).

DOI: 10.1117/12.2013431

[6] L.A. Dobrzanski, K. Lukaszkowicz, A. Kriz, Properties of the multi-layer Ti/CrN and Ti/TiAlN coatings deposited with the PVD technique onto the brass substrate, Journal of Materials Processing Technology 143-144 (2003) 832-837.

DOI: 10.1016/s0924-0136(03)00351-0

[7] J. Marciniak, Biomateriały. Wydawnictwo Politechniki Śląskiej, Gliwice (2013).

[8] J. Łabaj, Kinetics of copper evaporation from the Fe-Cu alloys under reduced pressure, Archives of Metallurgy and Materials. 57 (1) (2012) 165–172.

DOI: 10.2478/v10172-012-0005-8

[9] R. G. Ward, Evaporative losses during vacuum induction melting of steel, Journal of the Iron and Steel Inst. 201 (1963) 920-923.

[10] L. Blacha, Bleientfernung aus kupferlegierungen im prozess der vakuumraffination, Archives of Metallurgy. 48 (1) (2003) 105-127.

[11] E. Ozberk, R. Guthrie, Evaluation of vacuum induction melting for copper refining, Transactions of the Institution of Mining and Metallurgy, Section C: Mineral Processing and Extractive Metallurgy. 94 (1985) 146-157.

[12] E. Ozberk, R. Guthrie, A kinetic model for the vacuum refining of inductively stirred copper melts. Metallurgical Transactions B. 17 (1) (1986) 87-103.

DOI: 10.1007/bf02670822

[13] A. Spitans, E. Jakovics, B. Baake, B. Nacke, Numerical modelling of free surface dynamics of conductive melt in the induction crucible furnace, Magnetohydrodynamics. 46 (2010) 425-436.

DOI: 10.22364/mhd.46.4.12

[14] S. Spitans, A. Jakovics, E. Baake, B. Nacke, Numerical modelling of free surface dynamics of melt in an alternate electromagnetic field, Magnetohydrodynamics. 47 (2011), 385-398.

DOI: 10.1007/s11663-015-0515-7

[15] S. Golak, R. Przyłucki, The optimization of an inductor position for minimization of a liquid metal free surface, Przeglad Elektrotechniczny (Electrical Review). 84 (11) (2008) 163-164.

[16] T. Isawa, H. Nakamura, K. Murakami, Aluminum evaporation from titanium alloys in EB hearth melting process, ISIJ International. 32 (5) (1992) 607-615.

DOI: 10.2355/isijinternational.32.607

[17] S. Watakabe, K. Suzuki, K. Nishikawa, Control of chemical compositions of Ti-6Al-4V alloy during melting by electron beam furnace, ISIJ International. 32 (5) (1992) 625-629.

DOI: 10.2355/isijinternational.32.625

[18] Y. Su, J. Guo, J. Jia, G. Liu, Y. Liu, Composition control of a TiAl melt during the induction skull melting (ISM) process, Journal of Alloys and Compounds. 334 (2002) 261-266.

DOI: 10.1016/s0925-8388(01)01766-2

[19] T. Landig, R. McKoon, M. Young, Electron-beam melting of Ti–6Al–4V, Journal of Vacuum Science Technology. 14 (3) (1977) 808-814.

DOI: 10.1116/1.569272

[20] Siwiec G.: The Kinetics of Aluminum Evaporation from the Ti-6Al-4V Alloy, Archives of Metallurgy and Materials 58 (4) (2013) 1155 – 1160.

DOI: 10.2478/amm-2013-0141

[21] G. Siwiec, Elimination of Aluminum during the Process of Ti-6Al-4V Alloy, Smelting in a Vacuum Induction Furnace. 57 (4) (2012) 951-956.

DOI: 10.2478/v10172-012-0105-5

[22] L. Blacha, J. Mizera, P. Folęga, The effects of mass transfer in the liquid phase on the rate of aluminium evaporation from the Ti-6Al-7Nb alloy, Metalurgija. 53 (1) (2014) 51-54.
