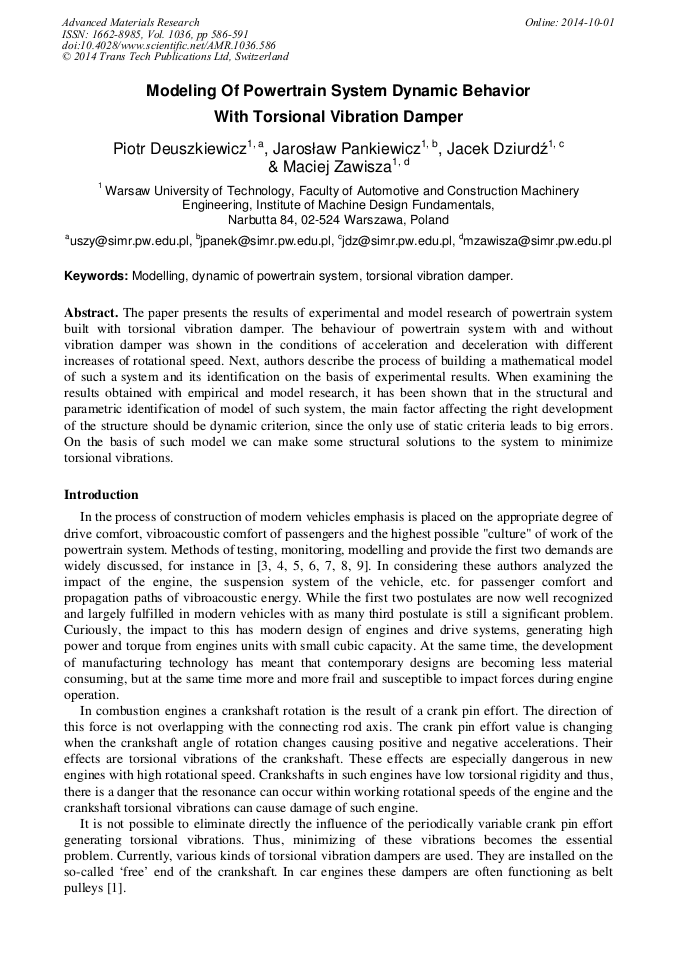

Modeling of Powertrain System Dynamic Behavior with Torsional Vibration Damper

Abstract:

The paper presents the results of experimental and model research of powertrain system built with torsional vibration damper. The behaviour of powertrain system with and without vibration damper was shown in the conditions of acceleration and deceleration with different increases of rotational speed. Next, authors describe the process of building a mathematical model of such a system and its identification on the basis of experimental results. When examining the results obtained with empirical and model research, it has been shown that in the structural and parametric identification of model of such system, the main factor affecting the right development of the structure should be dynamic criterion, since the only use of static criteria leads to big errors. On the basis of such model we can make some structural solutions to the system to minimize torsional vibrations.

• Periodical: Advanced Materials Research (Volume 1036)
• Pages: 586-591
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1036.586
• Online since: October 2014
• Authors: Piotr Deuszkiewicz*, Jarosław Pankiewicz, Jacek Dziurdź, Maciej Zawisza
• Keywords: Dynamic System, Modeling, Powertrain System, Torsional Vibration Damper

References

[1] W. Homik, J. Pankiewicz, Examinations of Torsional Vibration Dampers Used in Reciprocating Internal Combustion Engines, Polish Journal of Environmental Studies, Vol. 20, No. 5A, Olsztyn, 2011, pp.108-111.

[2] W. Homik, Broadband Torsional Dampers (In Polish), Wydawnictwo Naukowe Instytutu Technologii Eksploatacji - PIB, Rzeszów, (2012).

[3] R. Burdzik, Research on the influence of engine rotational speed to the vibration penetration into the driver via feet - multidimensional analysis, Journal of Vibroengineering 15 (4) (2013) 2114-2123.

[4] R. Burdzik, Identification of structure and directional distribution of vibration transferred to car-body from road roughness, submitted to Journal of  Vibroengineering 16(1) (2014).

[5] R. Burdzik, Monitoring system of vibration propagation in vehicles and method of analysing vibration modes, in: J. Mikulski (Ed. ), Telematics in the transport environment, CCIS 329, Springer, Heidelberg, 2012, pp.406-413.

DOI: 10.1007/978-3-642-34050-5_46

[6] R. Burdzik, Ł. Konieczny, Research on structure, propagation and exposure to general vibration in passenger car for different damping parameters, Journal of Vibroengineering 15 (4) (2013) 1680-1688.

[7] R. Burdzik, Ł. Konieczny, T. Figlus, Concept of On-board Comfort Vibration Monitoring System for Vehicles, in: J. Mikulski (Ed. ), Activities of Transport Telematics, CCIS 395, Springer, Heidelberg, 2013, pp.418-425.

DOI: 10.1007/978-3-642-41647-7_51

[8] Ł. Konieczny, R. Burdzik, B. Łazarz, Application of the vibration test in the evaluation of the technical condition of shock absorbers built into the vehicle, Journal of Vibroengineering Vol. 15, Issue 4, 2013, p.2042-(2048).

[9] Ł. Konieczny, R. Burdzik, T. Figlus, The possibility to control and adjust the suspensions of vehicles, , J. Mikulski (Ed. ): Activities of Transport Telematics, TST 2013, CCIS 395, pp.378-383. Springer, Heidelberg (2013).

DOI: 10.1007/978-3-642-41647-7_46

[10] A. Grządziela, Modeling Of Propeller Shaft Dynamics At Pulse Load, Polish Maritime Researches, 2008, Vo. 15, Nr 4, p.52 – 58.

DOI: 10.2478/v10012-007-0097-7

[11] A. Grządziela, Diagnosis Of Naval Gas Turbine Rotors With The Use Of Vibroacoustic Parameters, Polish Maritime Researches, 2000, Vo. 7, Nr 3, p.14 – 17.

[12] P. Folęga, FEM analysis of the options of using composite materials in flexsplines, Archives of Materials Science and Engineering, 51(1) (2011) 55-60.

[13] P. Folęga, G. Siwiec, Numerical analysis of selected materials for flexsplines, Archives of Metallurgy and Materials, 57(1) (2012) 185-191.

DOI: 10.2478/v10172-012-0008-5

[14] P. Folęga, The study of the dynamic properties of some structural components of harmonic drive, Journal of Vibroengineering, 15(4) (2013) 2096-2102.
