Research on Measurement Method of Joint Angle for Underwater Manipulator

Abstract:

Measurement method of joint angle for underwater manipulator is studied in this paper. The swing of a manipulator can be described as a circular motion in spatial. Therefore this paper proposes a spatial circle fitting algorithm. The points for spatial circle fitting come from multiple stereo vision system. At first, attach the designed target to the robot arm, then proposes algorithm to track the target in real time. Then three-dimensional coordinates of target’s movement in space at each location can be obtained by using stereo reconstruction techniques. At last, the center and radius of the circle can be calculated by spatial circle fitting. Through the theory of analytic geometry, the manipulator’s joint angle can be calculated. Experiments show that the algorithm proposed in this paper is well used in manipulator’s joint angle measurement.

You might also be interested in these eBooks

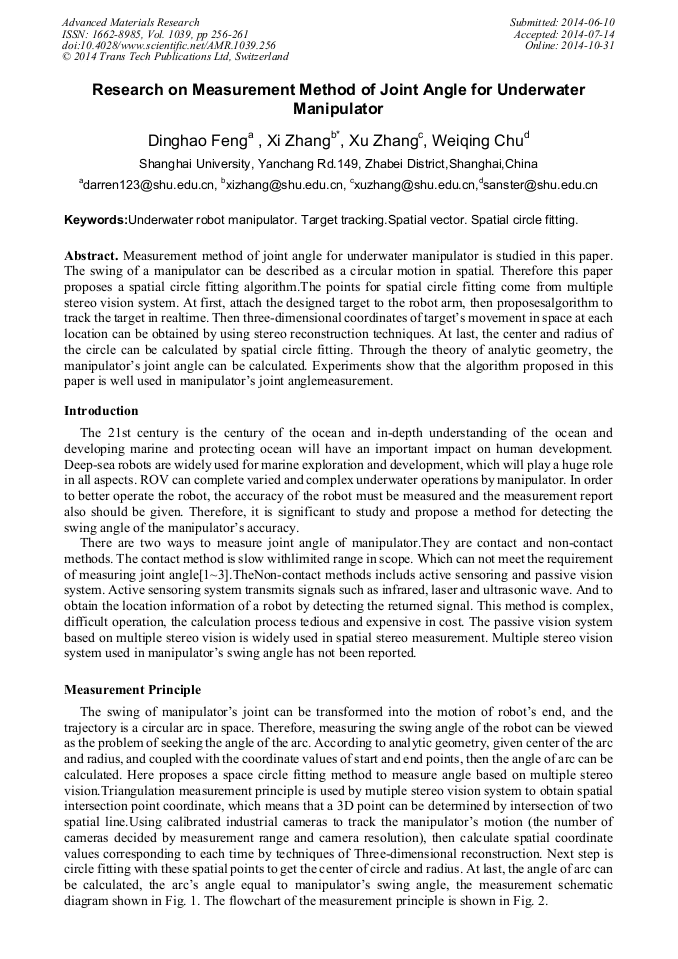

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1039)

Pages:

256-261

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1039.256

Citation:

Cite this paper

Online since:

October 2014

Authors:

Ding Hao Feng, Xi Zhang*, Xu Zhang, Wei Qing Chu

Keywords:

Spatial Circle Fitting, Spatial Vector, Target Tracking, Underwater Robot Manipulator

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] ZHENGKuijing, Wang Lianfeng, Monitoring platform design based on binocular active vision, J. Computer Integrated Manufacturing System. 2010, 16(4)710-716.

Google Scholar

[2] ZHANGYali, Liu Bo, XieZhoukai, Wang Xiaobai, Image Processing Method Used in aerial Object's Pose Measurement,J. Science Technology and Engineering. 2010, 10(10)2239-2342.

Google Scholar

[3] SUI Bo, Dou Dong, Chen Qiang, Sun Zhenguo, Han Xiangyu, Path accuracy measurement of industrial robot based on binocular vision, J. Journal of Mechanical Engineering. 2003, 0588-91.

DOI: 10.3901/jme.2003.05.088

Google Scholar

[4] XU Bo, Xi Juntong, Chen Xiaobo, High accurate stereo vision metrology for geometric parameters of 3D-hole based on subpixel, J. Aeronautical Computing Technique. 2008, 38(3)94-96.

Google Scholar

[5] ZOU Jingui, CHEN Jian, Research and application of the arithmetic based on space vector in 3D circle fitting, J. Journal of Geomatics. 2012, 37(6)3-5.

Google Scholar

[6] PAN Guorong, LI Huaifeng, A new test method based on space vector in 3D circle fitting, J. Journal of Geodesy and Geodynamics. 2010, 30(4) 106-108.

Google Scholar
