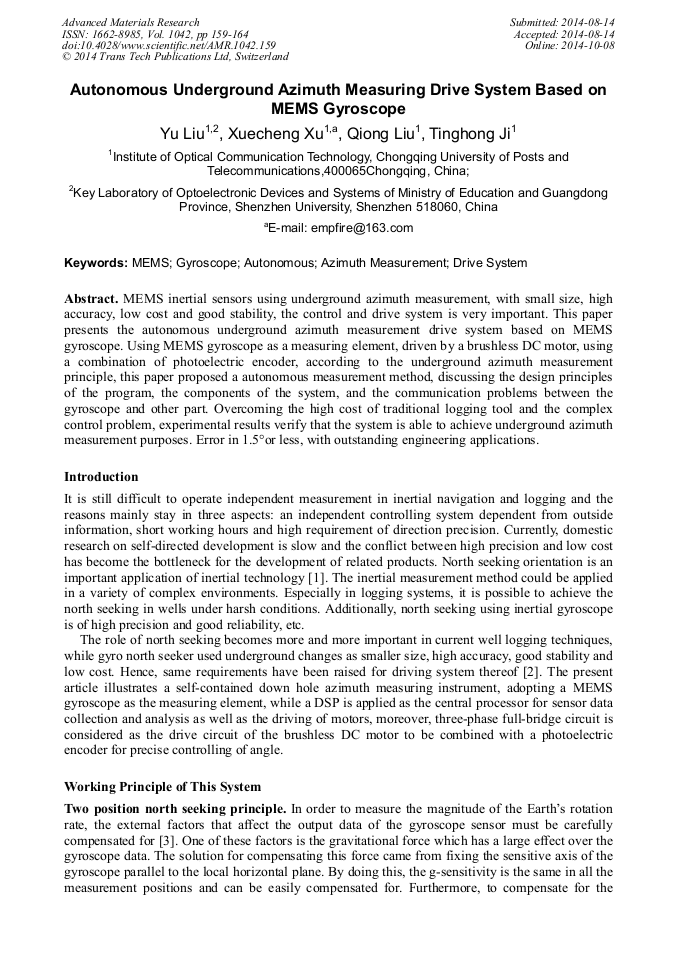

Autonomous Underground Azimuth Measuring Drive System Based on MEMS Gyroscope

Abstract:

MEMS inertial sensors using underground azimuth measurement, with small size, high accuracy, low cost and good stability, the control and drive system is very important. This paper presents the autonomous underground azimuth measurement drive system based on MEMS gyroscope. Using MEMS gyroscope as a measuring element, driven by a brushless DC motor, using a combination of photoelectric encoder, according to the underground azimuth measurement principle, this paper proposed a autonomous measurement method, discussing the design principles of the program, the components of the system, and the communication problems between the gyroscope and other part. Overcoming the high cost of traditional logging tool and the complex control problem, experimental results verify that the system is able to achieve underground azimuth measurement purposes. Error in 1.5°or less, with outstanding engineering applications.

• Periodical: Advanced Materials Research (Volume 1042)
• Pages: 159-164
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1042.159
• Online since: October 2014
• Authors: Yu Liu*, Xue Cheng Xu, Qiong Liu, Ting Hong Ji
• Keywords: Autonomous, Azimuth Measurement, Drive System, Gyroscope, MEMS

References

[1] ZHANG Z L, CHENG K, ZHOU S F. Complex rapid omnibearing north seeking of pendulous gyroscope[J]. Opt. Precision Eng, 2013, 21(12).

[2] Gao J, Hu Y. Direct self-control for BLDC motor drives based on three-dimensional coordinate system[J]. Industrial Electronics, IEEE Transactions on, 2010, 57(8): 2836-2844.

DOI: 10.1109/tie.2009.2036027

[3] IozanLI, Kirkko-Jaakkola M, Collin J, etal. North finding system using a MEMS gyroscope[C]/Proc. European Navigation Conf. on Global Navigation Satellite Systems. (2010).

[4] Johnson B R, Cabuz E, French H B, et al. Development of a MEMS gyroscope for northfinding applications[C]/Position Location and Navigation Symposium (PLANS), 2010 IEEE/ION. IEEE, 2010: 168-170.

DOI: 10.1109/plans.2010.5507133

[5] TMS320x28xx, 28xxx Enhanced Quadrature Encoder Pulse (eQEP). Texas Instruments[Z], September (2007).

[6] Maoli Wang, GuangheCheng, Xiangxin Kong. A Single Neuron Self-Adaptive PID Controller of Brushless DC Motor[C]. Third International Conference on Measuring Technology and Mechatronics Automation, 2011, 5(1): 193-202.

DOI: 10.1109/icmtma.2011.70

[7] WANG JF. Research of the Brushless DC motor intelligent control system based on DSP[D]. Nanjing: Posts and Telecommunications of Nanjing University, (2011).

[8] Wang S, Li H, Meng H R Active disturbance rejection controller for speed-loop in telescope servo system[J]. Opt. Precision Eng, 2011, 19(10).

[9] XIE Q H, Zhang X L. TMS320F2812DSP principle and its application in motion control system[M]. Beijing: Publishing House of Electronics Industry, (2009).

[10] Wu M, Fu L, Lin Y. Control System of Two-Phase Brushless DC Gyro Motor Based on DSP[J]. Chinese Journal of Sensor and Actuators, 2013, 26(2): 187-190.

DOI: 10.1109/imccc.2012.134
