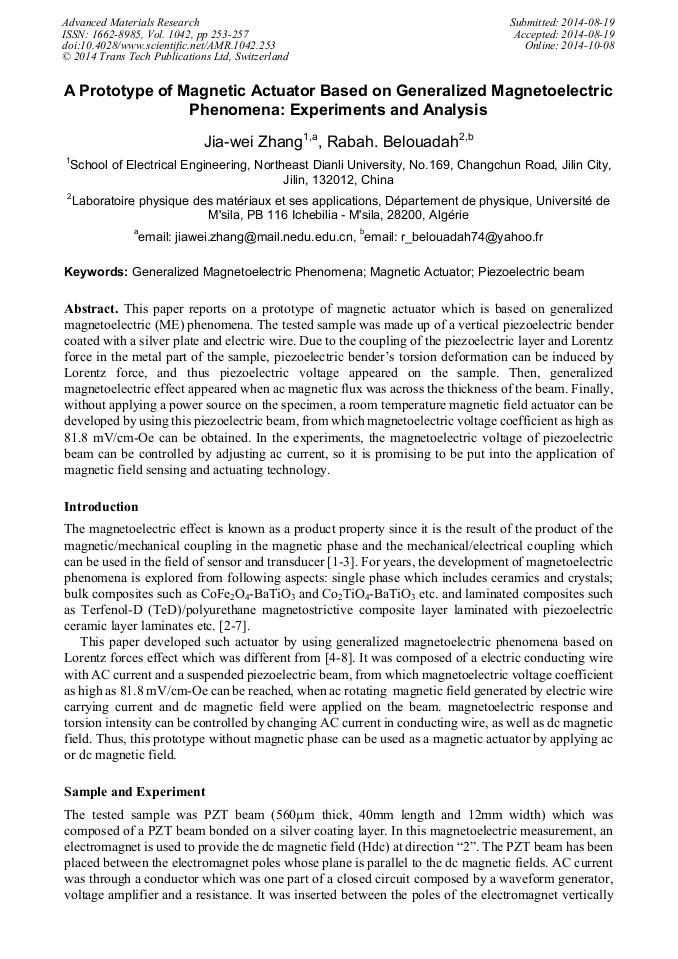

A Prototype of Magnetic Actuator Based on Generalized Magnetoelectric Phenomena: Experiments and Analysis

Abstract:

This paper reports on a prototype of magnetic actuator which is based on generalized magnetoelectric (ME) phenomena. The tested sample was made up of a vertical piezoelectric bender coated with a silver plate and electric wire. Due to the coupling of the piezoelectric layer and Lorentz force in the metal part of the sample, piezoelectric bender’s torsion deformation can be induced by Lorentz force, and thus piezoelectric voltage appeared on the sample. Then, generalized magnetoelectric effect appeared when ac magnetic flux was across the thickness of the beam. Finally, without applying a power source on the specimen, a room temperature magnetic field actuator can be developed by using this piezoelectric beam, from which magnetoelectric voltage coefficient as high as 81.8 mV/cm-Oe can be obtained. In the experiments, the magnetoelectric voltage of piezoelectric beam can be controlled by adjusting ac current, so it is promising to be put into the application of magnetic field sensing and actuating technology.

• Periodical: Advanced Materials Research (Volume 1042)
• Pages: 253-257
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1042.253
• Online since: October 2014
• Authors: Jia Wei Zhang*, Rabah Belouadah
• Keywords: Generalized Magnetoelectric Phenomena, Magnetic Actuator, Piezoelectric Beam

References

[1] M. Fiebig: J. Phys. D: Appl. Phys. Vol. 38 (2005) , p. R123.

[2] G. Harse, J.P. Dougherty and R.E. Newnham: Int. J. Appl. Electromagn. Mater. Vol. 4 (1993) , p.161.

[3] C. W. Nan: Phys. Rev. B. Vol. 50 (1994) , p.6082.

[4] L. Fuentes, M. Garcia, J. Matutes-Aquino. D. Rios-Jara: J. Alloys Compd. Vol. 369 (2004) , pp.10-13.

[5] V. Suchetelene: Philips. Res. Rep Vol. 27 (1972) , p.28.

[6] D. Guyomar, D.F. Matei, Q. Le, B. Guiffard, and R. Belouadah: Mater. Lett. Vol. 63 (2009), p.611.

[7] S. Dong, J. F. Li and D. Viehland: IEEE trans. Ultrason. Ferroelectr. Freq. Control, Vol. 51 (2004) , p.793.

[8] J. Zhai, J. F. Li, D. Viehland and M. I. Bichurin: J. Appl. Phys. Vol. 101 (2007) , pp.014102-1.

[9] B. Guiffard, D. Guyomar, L. Garbuio, R. Belouadah, J.W. Zhang, and P-J. Cottinet: Appl. Phys. Lett, Vol. 96 (2010) , p.044105.

DOI: 10.1063/1.3298551

[10] D. Guyomar, B. Guiffard, R. Belouadah, and L. Petit: J. Appl. Phys. Vol. 104, (2008) p.074902.

[11] B. Guiffard, J. W. Zhang, D. Guyomar, L. Garbuio, P. -J. Cottinet and R. Belouadah: J. Appl. Phys. Vol. 108 (2010) , p.094901.

DOI: 10.1063/1.3503424

[12] J. Ryu, A. V. Carazo, K. Uchino and H-E Kim: Jpn. J. Appl. Phys. Vol. 40, pp.4948-4951, (2001).

[13] S. Narendra Babu, T. Bhimasankaram and S. V. Suryanarayana: Bull. Mater. Sci. Vol. 28 (2005) , p.419.

[14] R. C Kambale, P. A. Shaikh, C.H. Bhosale, K. Y. Rajpure and Y. D. Kolekar: J. Alloys and Compounds. Vol. 489 (2010) , p.310.

DOI: 10.1016/j.jallcom.2009.09.080

[15] G. V. Duong, R. S. Turtelli and R. Groessinger: J. Magn. Magn. Mater . Vol. 322 (2010) , p.1581.
