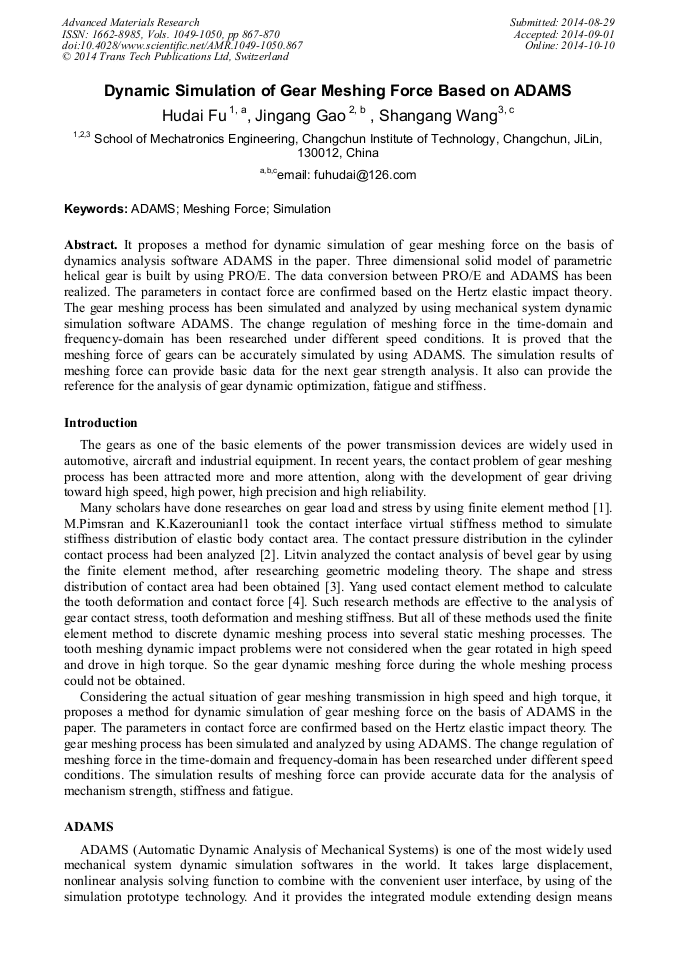

Dynamic Simulation of Gear Meshing Force Based on ADAMS

Abstract:

It proposes a method for dynamic simulation of gear meshing force on the basis of dynamics analysis software ADAMS in the paper. Three dimensional solid model of parametric helical gear is built by using PRO/E. The data conversion between PRO/E and ADAMS has been realized. The parameters in contact force are confirmed based on the Hertz elastic impact theory. The gear meshing process has been simulated and analyzed by using mechanical system dynamic simulation software ADAMS. The change regulation of meshing force in the time-domain and frequency-domain has been researched under different speed conditions. It is proved that the meshing force of gears can be accurately simulated by using ADAMS. The simulation results of meshing force can provide basic data for the next gear strength analysis. It also can provide the reference for the analysis of gear dynamic optimization, fatigue and stiffness.

• Periodical: Advanced Materials Research (Volumes 1049-1050)
• Pages: 867-870
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1049-1050.867
• Online since: October 2014
• Authors: Hu Dai Fu*, Jin Gang Gao, Shan Gang Wang
• Keywords: Adam, Meshing Force, Simulation

References

[1] Simon V. Load and stress distributions in spur and helical gears [J]. Journal of Mechanisms. Transmissions and Automation in Design, 1988 10: 197-202.

DOI: 10.1115/1.3258926

[2] PIMSARN M, KAZEROUNIAN K. Pesudo-interference stiffness estimation, a highly efficient numerical method for force evaluation in contact problems [J]. Engineering with Computers. 2003 19: 85-91.

DOI: 10.1007/s00366-003-0250-6

[3] LITVIN F L, FUENTES A. Computerized design simulation of meshing and stress analysis of face milled formate generated spiral bevel gears [J]. Mechanism and Machine Theory. 2002 5(37): 441-459.

DOI: 10.1016/s0094-114x(01)00086-6

[4] Yang Shenghua. Finite element analysis of gear contact [J]. Computational Mechanics. 2003 20(2): 189-194.

[5] Jianrong Zheng. Introduction and improvement of ADAMS virtual prototype technology [M]. Beijing: China Machine Press. (2012).

[6] Runfang Li, Jianjun Wang. Gear System Dynamics [M]. Beijing: sciences press. (1997).
