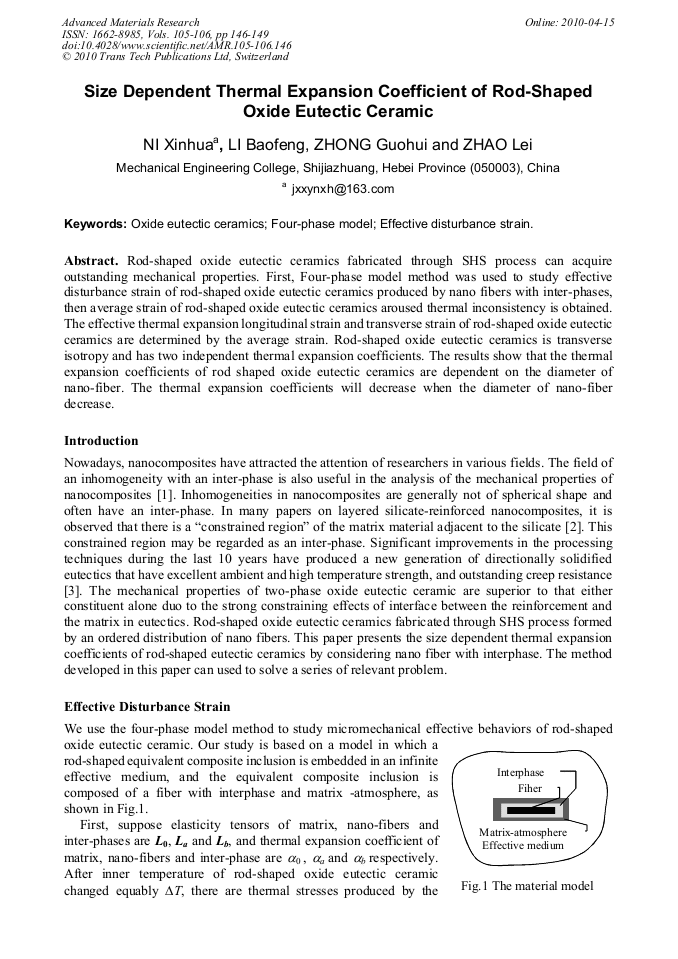

Size Dependent Thermal Expansion Coefficient of Rod-Shaped Oxide Eutectic Ceramic

Abstract:

Rod-shaped oxide eutectic ceramics fabricated through SHS process can acquire outstanding mechanical properties. First, Four-phase model method was used to study effective disturbance strain of rod-shaped oxide eutectic ceramics produced by nano fibers with inter-phases, then average strain of rod-shaped oxide eutectic ceramics aroused thermal inconsistency is obtained. The effective thermal expansion longitudinal strain and transverse strain of rod-shaped oxide eutectic ceramics are determined by the average strain. Rod-shaped oxide eutectic ceramics is transverse isotropy and has two independent thermal expansion coefficients. The results show that the thermal expansion coefficients of rod shaped oxide eutectic ceramics are dependent on the diameter of nano-fiber. The thermal expansion coefficients will decrease when the diameter of nano-fiber decrease.

• Periodical: Advanced Materials Research (Volumes 105-106)
• Pages: 146-149
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.105-106.146
• Online since: April 2010
• Authors: Xin Hua Ni, Bao Feng Li, Guo Hui Zhong, Lei Zhao
• Keywords: Effective Disturbance Strain, Four-Phase Model, Oxide Eutectic Ceramics

References

[1] X. Wang, X.Y. Tan, Y.K. Yin, et al.: J. Ceramics (China) Vol. 21.

[2] (2000), p.107.

[2] Z.M. Zhao, J.J. Wang, L. Zhang, et al.: Casting (China). Vol. 52.

[11] (2003), p.1053.

[3] P. Ponte-Castneda and J.R. Willis: J. Mech. Phy. Solids. Vol. 43 (1995), p. (1919).

[4] X.H. Ni: Doctor Degree Thesis (Mechanical Engineering College, Shijiazhuang, China, 2008). Fig. 2 Longitudinal thermal expansion coefficient Fig. 3 Transversal thermal expansion coefficient.
