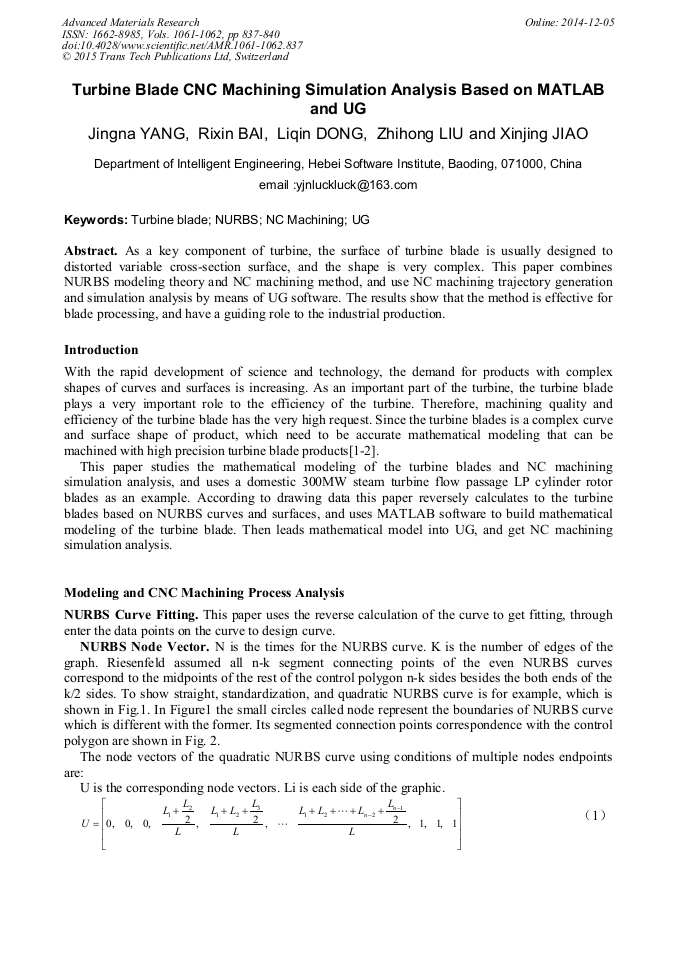

Turbine Blade CNC Machining Simulation Analysis Based on MATLAB and UG

Abstract:

As a key component of turbine, the surface of turbine blade is usually designed to distorted variable cross-section surface, and the shape is very complex. This paper combines NURBS modeling theory and NC machining method, and use NC machining trajectory generation and simulation analysis by means of UG software. The results show that the method is effective for blade processing, and have a guiding role to the industrial production.
