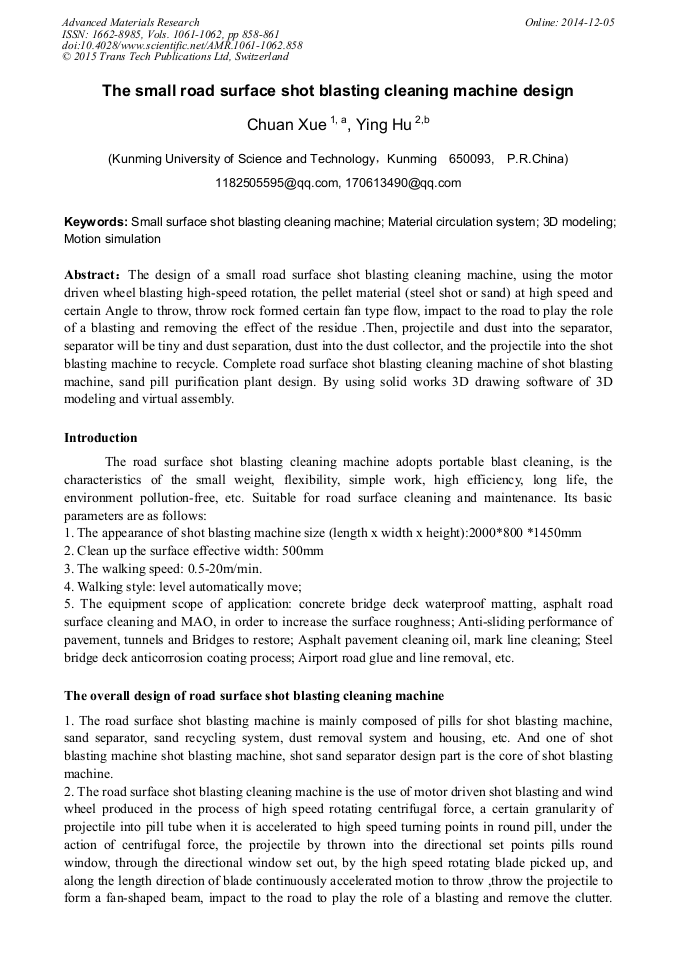

The Small Road Surface Shot Blasting Cleaning Machine Design

Abstract:

The design of a small road surface shot blasting cleaning machine, using the motor driven wheel blasting high-speed rotation, the pellet material (steel shot or sand) at high speed and certain Angle to throw, throw rock formed certain fan type flow, impact to the road to play the role of a blasting and removing the effect of the residue .Then, projectile and dust into the separator, separator will be tiny and dust separation, dust into the dust collector, and the projectile into the shot blasting machine to recycle. Complete road surface shot blasting cleaning machine of shot blasting machine, sand pill purification plant design. By using solid works 3D drawing software of 3D modeling and virtual assembly.

• Periodical: Advanced Materials Research (Volumes 1061-1062)
• Pages: 858-861
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1061-1062.858
• Online since: December 2014
• Authors: Chuan Xue, Ying Hu
• Keywords: 3D Modeling, Material Circulation System, Motion Simulation, Small Surface Shot Blasting Cleaning Machine

References

[1] Shouren Wang, Ruiguo Wang, Cast (spray) pill cleaning process and equipment; Beijing: Mechanical Engineering Press, 2012. 4.

[2] Zurao Fan, Nonstandard mechanical equipment manual (Electronic Edition), Beijing: Machinery: Machinery Industry Press, 2002. 5.

[3] Zongze Wu. Mechanical designer hand (2), Beijing: Mechanical Industry Press, 2008. 7.

[4] Datong Qin. Liyang Xie. Modern Mechanical.

[5] Lianggui Pu. A. Mechanical design [M], Beijing: higher press, 2004. 5.

[6] Beijing Institute of mechanical engineering, materials handling equipment manual (Electronic Edition), Beijing：China Communications Press, 2002. 3. 7.
