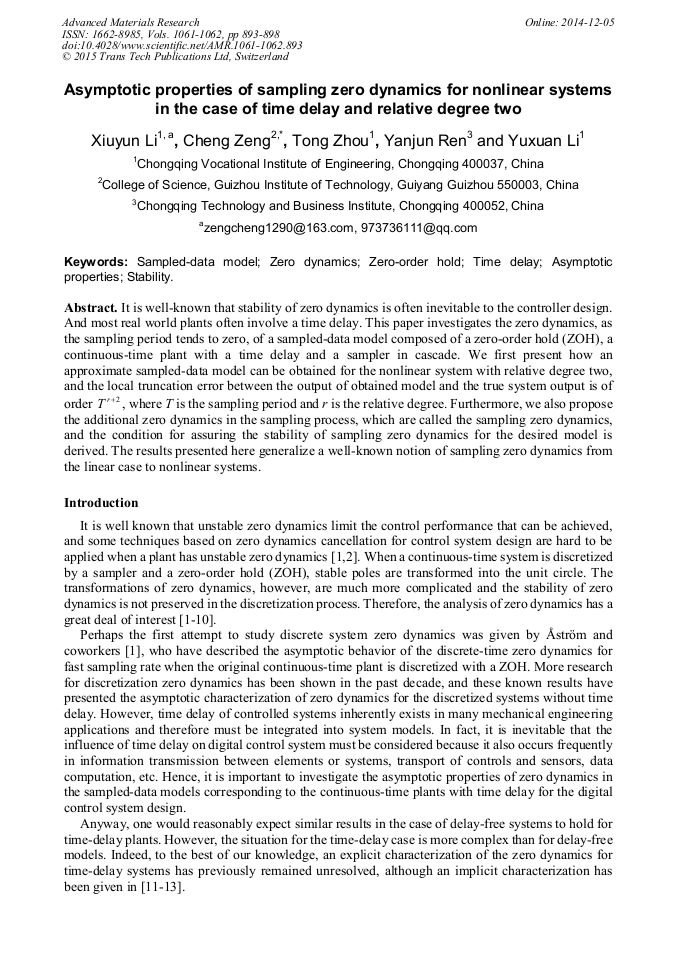

Asymptotic Properties of Sampling Zero Dynamics for Nonlinear Systems in the Case of Time Delay and Relative Degree Two

Abstract:

It is well-known that stability of zero dynamics is often inevitable to the controller design. And most real world plants often involve a time delay. This paper investigates the zero dynamics, as the sampling period tends to zero, of a sampled-data model composed of a zero-order hold (ZOH), a continuous-time plant with a time delay and a sampler in cascade. We first present how an approximate sampled-data model can be obtained for the nonlinear system with relative degree two, and the local truncation error between the output of obtained model and the true system output is of order , where T is the sampling period and r is the relative degree. Furthermore, we also propose the additional zero dynamics in the sampling process, which are called the sampling zero dynamics, and the condition for assuring the stability of sampling zero dynamics for the desired model is derived. The results presented here generalize a well-known notion of sampling zero dynamics from the linear case to nonlinear systems.

• Periodical: Advanced Materials Research (Volumes 1061-1062)
• Pages: 893-898
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1061-1062.893
• Online since: December 2014
• Authors: Xiu Yun Li, Cheng Zeng*, Tong Zhou, Yan Jun Ren, Yu Xuan Li
• Keywords: Asymptotic Properties, Sampled-Data Model, Stability, Time Delay, Zero Dynamics, Zero-Order Hold

References

[1] K. Åström, P. Hagander, J. Sternby, Zeros of sampled systems. Automatica, 20(1): 31-38, (1984).

DOI: 10.1016/0005-1098(84)90062-1

[2] C. Zeng, S. Liang, H. Li, Y. Su, Current development and future challenges for zero dynamics of discrete-time systems. Control Theory & Applications, 30(10): 1213-1230, 2013. (in Chinese).

[3] A. Isidori, The zero dynamics of a nonlinear system: from the origin to the latest progresses of a long successful story. European Journal of Control, 19(5): 369-378, (2013).

DOI: 10.1016/j.ejcon.2013.05.014

[4] J. I. Yuz, G. C. Goodwin, On sampled-data models for nonlinear systems. IEEE Transactions on Automatic Control, 50(10): 1477-1489, (2005).

DOI: 10.1109/tac.2005.856640

[5] S. Liang, X. Xian, M. Ishitobi, K. Xie, Stability of zeros of discrete-time multivariable systems with GSHF. International Journal of Innovative Computing, Information and Control, 6(7): 2917-2926, (2010).

DOI: 10.1109/icnsc.2009.4919306

[6] G. C. Goodwin, J. C. Aguero, M. E. Garrido, M. E. Salgado, J. I. Yuz, Sampling and sampled-data models: the interface between the continuous world and digital algorithms. IEEE Control Systems Magazine, 33(5): 34-53, (2013).

DOI: 10.1109/mcs.2013.2270403

[7] C. Zeng, S. Liang, Y. Su, Improving the asymptotic properties of discrete system zeros in fractional-order hold case. Journal of Applied Mathematics, 2013, (2013).

DOI: 10.1155/2013/268684

[8] U. Ugalde, R. Bárcena, K. Basterretxea, Generalized sampled-data hold functions with asymptotic zero-order hold behavior and polynomic reconstruction. Automatica, 48(6), 1171–1176, (2012).

DOI: 10.1016/j.automatica.2012.03.004

[9] M. Ishitobi, M. Nishi, S. Kunimatsu, Asymptotic properties and stability criteria of zeros of sampled-data models for decouplable MIMO systems, IEEE Transactions on Automatic Control, 58(11): 2985–2990, (2013).

DOI: 10.1109/tac.2013.2261175

[10] C. Zeng, S. Liang, Y. Sun, Y. Su, Discrete dynamics analysis for nonlinear collocated multivariable mass-damper-spring intelligent mechanical vibration systems. Journal of Vibroengineering, 16(2): 765-776, (2014).

[11] S. Hara, Properties of zeros in digital control systems with computational time delay. International Journal of Control, 49(2): 493-511, (1989).

DOI: 10.1080/00207178908559649

[12] M. Ishitobi, Stable zeros of a discrete system obtained by sampling a continuous-time plant with a time delay. International Journal of Control, 59(4): 1053-1062, (1994).

DOI: 10.1080/00207179408923117

[13] S. Liang and M. Ishitobi, The stability properties of the zeros of sampled models for time delay systems in fractional order hold case. Dynamics of Continuous, Discrete and Impulsive Systems, Series B: Applications and Algorithms, 11(3): 299-312, (2004).

[14] A. Isidori, Nonlinear control systems: an introduction, Springer Verlag, (1995).

[15] H. K. Khalil, Nonlinear systems. Prentice Hall Upper Saddle River, (2002).

[16] M. Ishitobi, Zero dynamics of sampled-data models for nonlinear systems. American Control Conference, 1184-1189, (2008).

DOI: 10.1109/acc.2008.4586653
